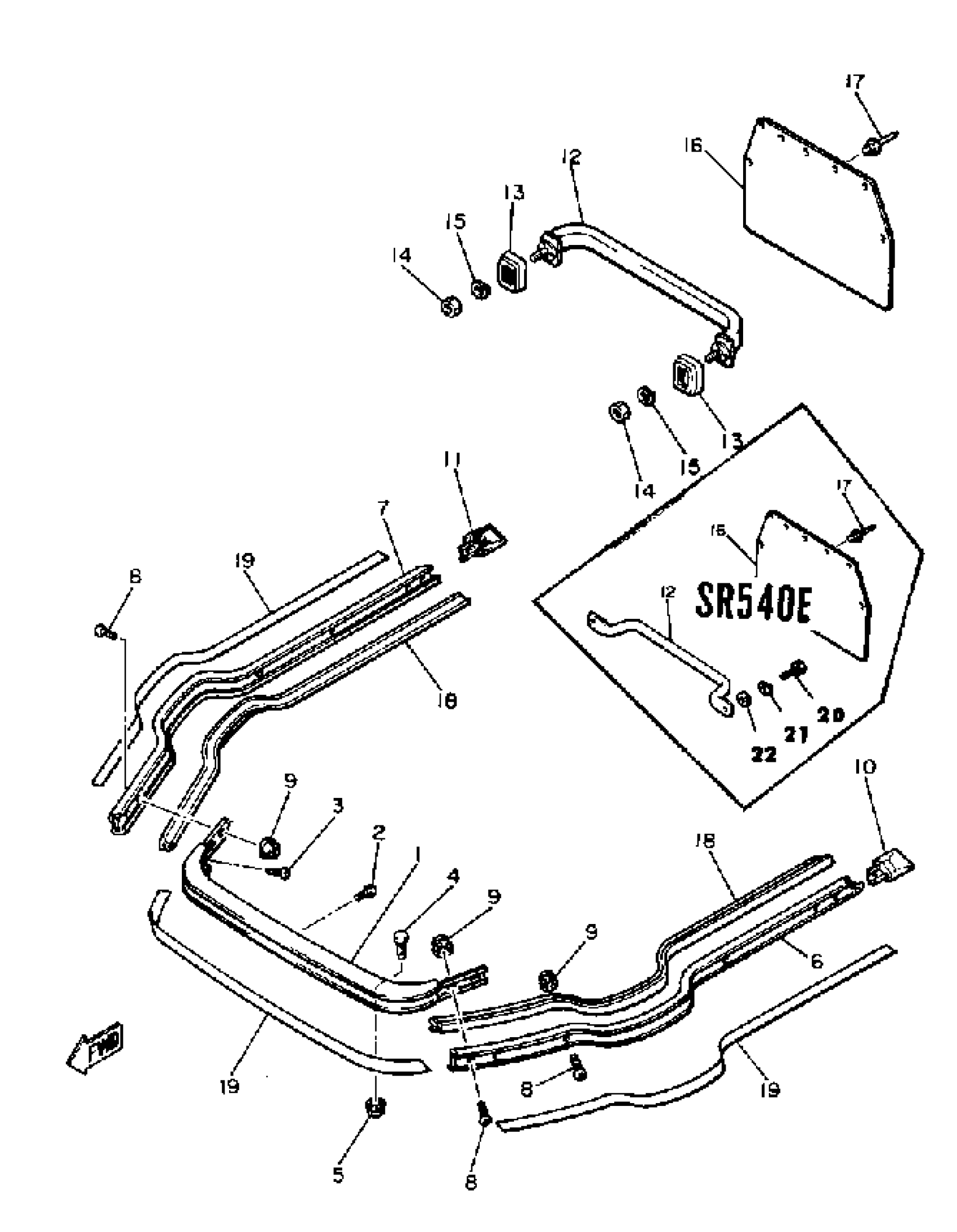

Find the part on the Bumper SR540D-E diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR540D Bumper SR540D-E Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

SCREW, BIND (705)

98980-06016-00

1
Out of stock

3

SCREW, BIND(1JK)

98980-06010-00

1
Out of stock

4

BOLT(8CP)

97017-06014-00

1

$5.12

In stock

5

NUT, NYLON

95707-06300-00

1

$3.20

In stock

6

BUMPER, FRONT 2

8L0-77512-00-00

1
Out of stock

6

BUMPER, FRONT 2

8L9-77512-00-00

1
Out of stock

7

BUMPER, FRONT 3

8L0-77513-00-00

1
Out of stock

7

BUMPER, FRONT 3

8L9-77513-00-00

1
Out of stock

8

SCREW, BIND(J45)

98980-06012-00

1

$4.70

In stock

9

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

10

END, BUMPER

8L0-77523-00-00

1
Out of stock

10

END, BUMPER

8L9-77523-00-00

1
Out of stock

11

END, BUMPER

(8L0-77524-00-00)

1
Out of stock

11

END, BUMPER

8L9-77524-00-00

1
Out of stock

12

BUMPER, rear 1

8K4-77541-00-00

1
Out of stock

12

BUMPER, REAR 1

8E7-77541-00-00

1
Out of stock

13

CAP

8K4-77517-00-00

1
Out of stock

14

NUT(6L2)

95333-08600-00

—

$3.20

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

16

FLAP

8V8-77595-00-00

1
Out of stock

17

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

18

BUSH, RUBBER 1

8L0-77515-00-00

1
Out of stock

19

STRIPE 3

(8L0-77283-00-00)

1
Out of stock

20

BOLT, HEXAGON

97017-08016-00

—
Out of stock

21

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

22

WASHER(6TA)

92907-08600-00

—

$2.52

In stock

25

BUMPER, FRONT 1

8L0-77511-00-00

1
Out of stock

25

BUMPER, FRONT 1

8L9-77511-00-00

1
Out of stock
