1980 Yamaha SR540D Frame SR540E Diagram

← All diagrams

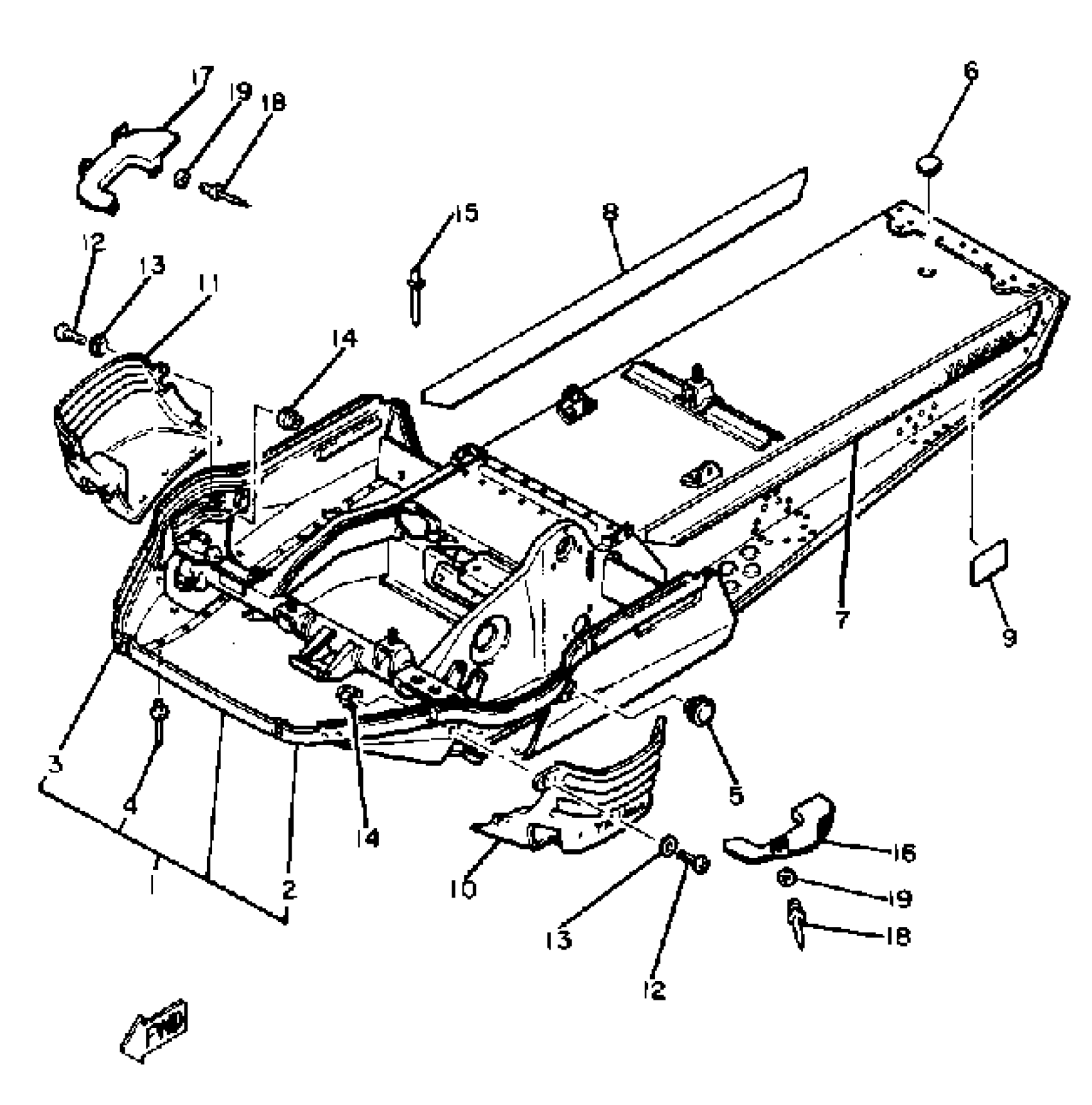

Find the part on the Frame SR540E diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR540D Frame SR540E Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(8L9-21910-00-00)

1
Out of stock

2

HOOD 1

(8L9-21982-01-00)

1
Out of stock

3

. HOOD 2

8L9-21983-01-00

1
Out of stock

4

RIVET, BLIND (8H4)

90267-48053-00

1

$2.31

In stock

5

PLUG (8K4)

90338-40099-00

1

$11.89

In stock

6

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

7

EMBLEM 1

(8L9-77351-00-00)

1
Out of stock

8

EMBLEM 2

8L9-77352-00-00

1
Out of stock

9

INDICATOR 2

8K2-77742-00-00

1
Out of stock

10

COVER 1

8L0-2198F-00-00

1
Out of stock

11

COVER 2

8L0-2198G-00-00

1
Out of stock

12

SCREW, BINDING(3XV)

90154-05059-00

1

$5.21

In stock

13

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

14

NUT, NYLON

95707-05300-00

1

$2.74

In stock

15

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

16

SHIELD, NOISE

8L9-2199F-00-00

1
Out of stock

17

SHIELD, NOISE 2

8L9-2199J-00-00

1
Out of stock

18

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

19

WASHER, PLATE

90201-04027-00

—
Out of stock
