1980 Yamaha SR540D Frame SR540F Diagram

← All diagrams

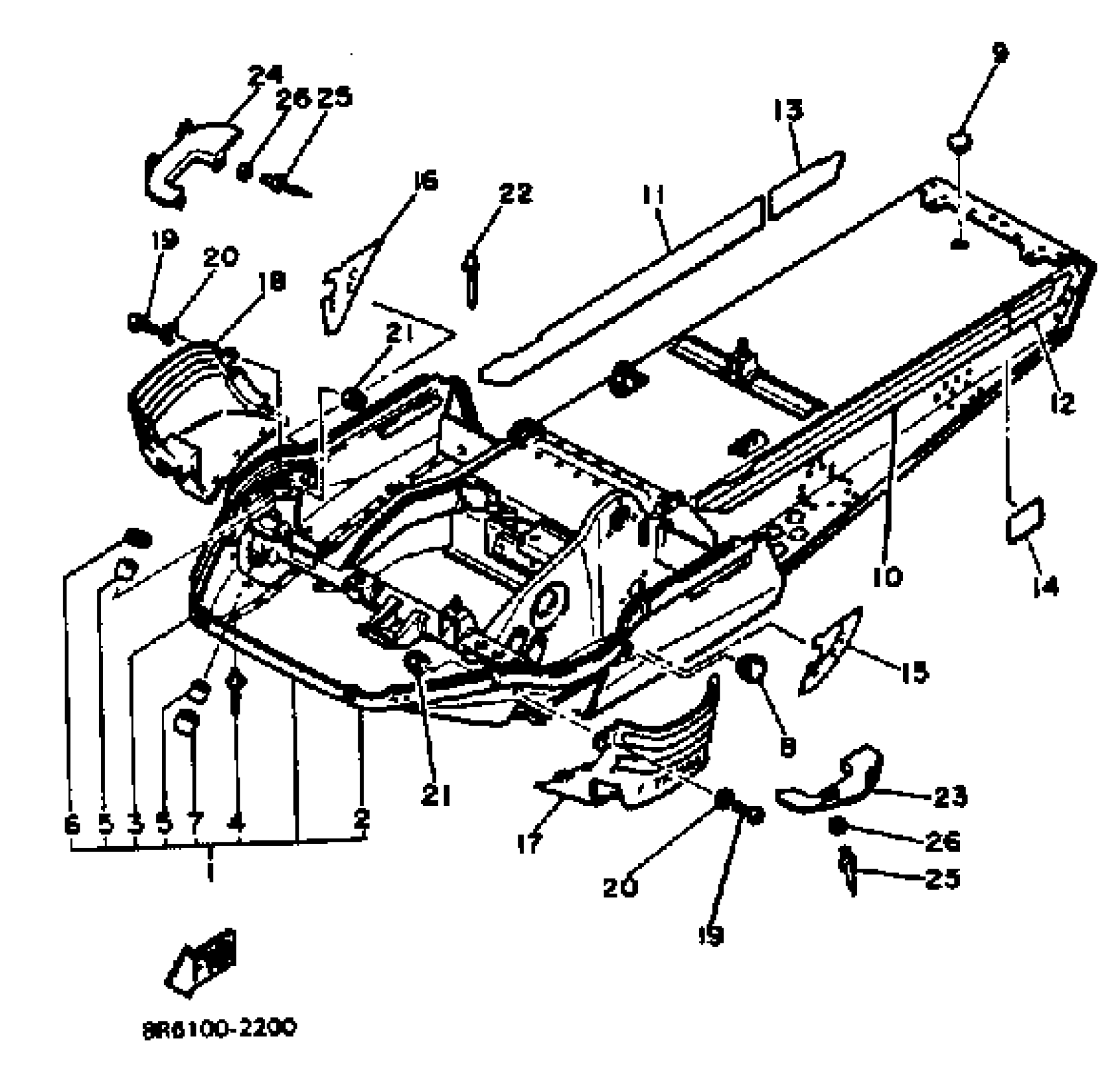

Find the part on the Frame SR540F diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR540D Frame SR540F Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

8R6-21910-00-00

1
Out of stock

2

. HOOD 1

8R6-21982-00-00

1
Out of stock

3

. HOOD 2

8R6-21983-00-00

1
Out of stock

4

RIVET, BLIND

90267-48060-00

1

$2.00

In stock

5

1

$9.68

In stock

6

OIL SEAL (8M6)

93102-36232-00

1

$9.51

In stock

7

OIL SEAL (8M6)

93103-36117-00

1

$20.31

In stock

8

PLUG (8K4)

90338-40099-00

1

$11.89

In stock

9

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

10

EMBLEM 1

(8R6-77351-00-00)

1
Out of stock

11

EMBLEM 2

(8R6-77352-00-00)

1
Out of stock

12

EMBLEM 3

(8R6-77353-00-00)

1
Out of stock

13

EMBLEM 4

8R6-77354-00-00

1
Out of stock

14

INDICATOR 2

8K2-77742-00-00

1
Out of stock

15

ORNAMENT 3

8R6-77169-00-00

1
Out of stock

16

ORNAMENT 4

8R6-77113-00-00

1
Out of stock

17

COVER 1

8L0-2198F-00-00

1
Out of stock

18

COVER 2

8L0-2198G-00-00

1
Out of stock

19

SCREW, BINDING (8J0)

90154-05005-00

—
Out of stock

20

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

21

NUT, NYLON

95707-05300-00

—

$2.74

In stock

22

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

23

SHIELD, NOISE

8L9-2199F-00-00

1
Out of stock

24

SHIELD, NOISE 2

8L9-2199J-00-00

1
Out of stock

25

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

26

WASHER, PLATE

90201-04027-00

—
Out of stock
