1983 Kawasaki Spectre Starter Motor/starter Clutch Diagram

← All diagrams

Find the part on the Starter Motor/starter Clutch diagram for your 1983 Kawasaki Spectre, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

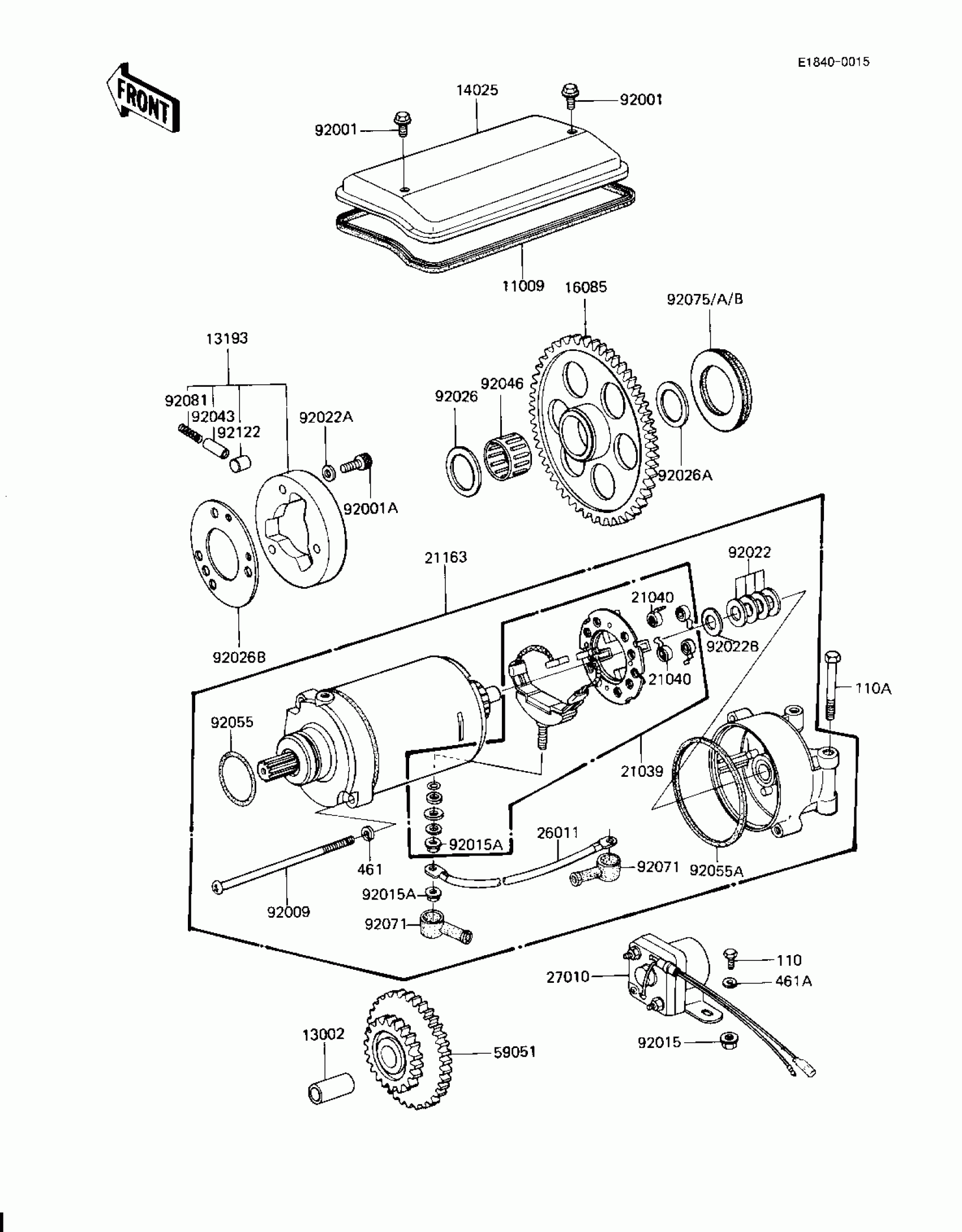

1983 Kawasaki Spectre Starter Motor/starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,STARTER COVER

21166-001

1
Out of stock

13002

PIN

13002-007

1
Out of stock

13193

CLUTCH-ASSY-ONEWAY

13193-1006

1
Out of stock

14025

COVER,STARTER

14025-1419

1
Out of stock

16085

GEAR,STARTER CLUTCH

16085-1012

1
Out of stock

21039

BRUSH SET,CARBON

21039-1005

1
Out of stock

21040

SPRING,CARBON BRUSH

21040-1002

1
Out of stock

21163

STARTER-ELECTRIC

21163-1143

1
Out of stock

26011

WIRE-LEAD,STARTER MOTOR

26011-1135

1
Out of stock

27010

SWITCH,MAGNETIC

27010-1047

1
Out of stock

59051

GEAR-SPUR,STARTER MOTOR

21167-002

1
Out of stock

92001

BOLT,6X10

92001-1151

1
Out of stock

92001A

BOLT-SOCKET,8X16

120P0816

1
Out of stock

92009

SCREW,PAN HEAD,5X110

21015-005

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015A

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,9.1X18X0.2

21025-011

1
Out of stock

92022A

WASHER,8.5X13.5X2

92022-1108

1
Out of stock

92022B

WASHER,9.1X18X0.8

92022-1132

1
Out of stock

92026

SPACER,25X38X1.0

92026-1031

1
Out of stock

92026A

SPACER,25X34X2.0

92026-1033

1
Out of stock

92026B

PLATE,CLUTCH STARTER

92026-112

1
Out of stock

92043

PIN

92043-087

1
Out of stock

92046

BEARING-NEEDLE,K253020S

92046-1022

1
Out of stock

92055

RING-O,STARTER MOTOR,25MM

21027-004

1
Out of stock

92055A

RING-O,64MM

92055-1086

1
Out of stock

92071

GROMMET,STARTER TERMINAL

21017-017

1
Out of stock

92075

DAMPER,T=6.3

92075-1129

1
Out of stock

92075A

DAMPER,T=7.3

92075-1130

1
Out of stock

92075B

DAMPER,T=8.3

92075-1131

1
Out of stock

92081

SPRING

92081-110

1
Out of stock

92122

ROLLER,15X14.4

92122-001

1
Out of stock

110

BOLT-UPSET,6X12

112G0612

1
Out of stock

110A

BOLT,EXCLUSIVE

92001-1456

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock

461A

WASHER SPRING 6MM

461F0600

1
Out of stock
