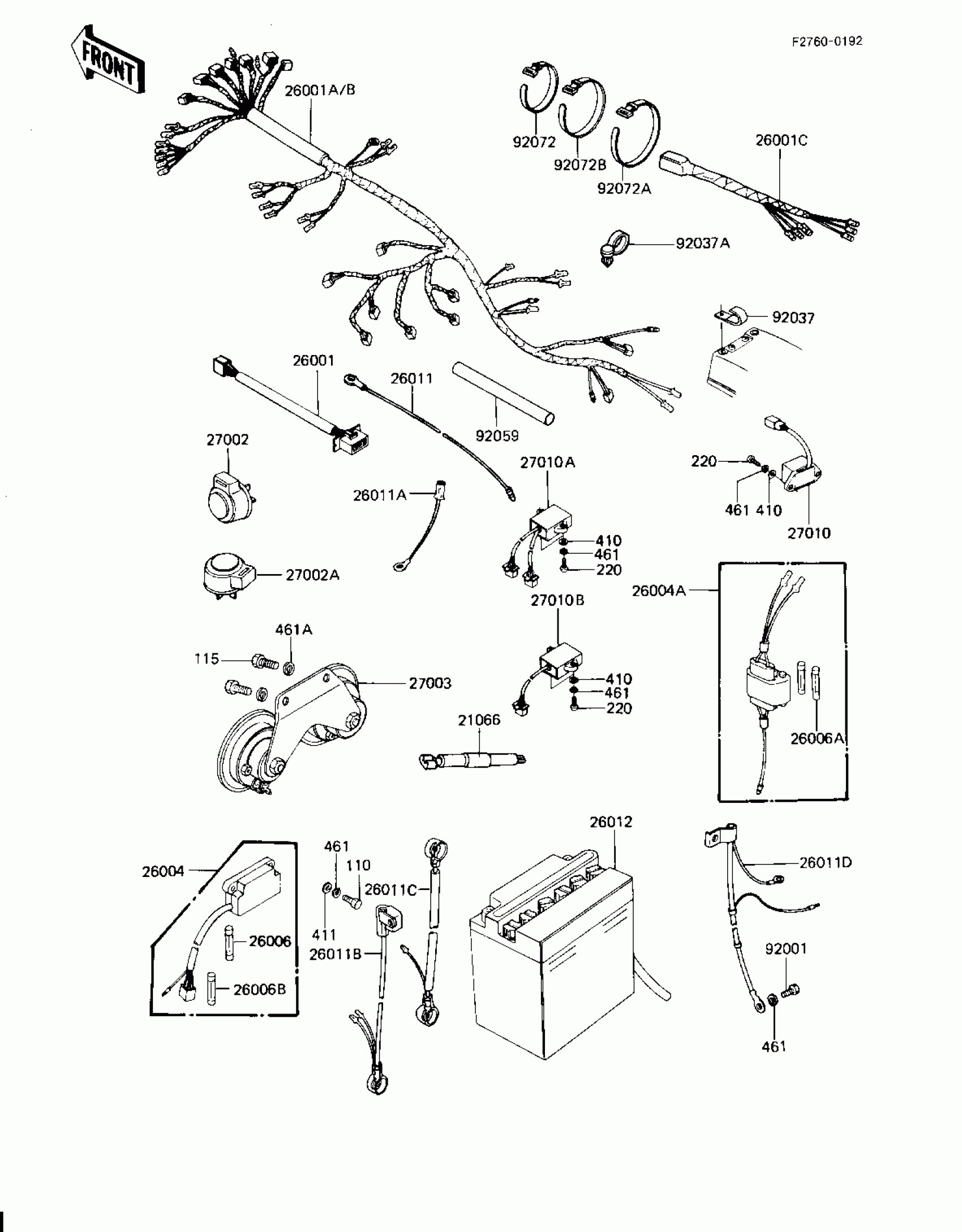

Kawasaki Spectre CHASSIS ELECTRICAL EQUIPMENT Diagram

#

Description
Price

26001

HARNESS,RESERVE LIGHT

26001-1248

$13.22

26001B

HARNESS,MAIN

26001-1459

Unavailable

26001C

WIRING HARNESS,REAR

26002-063

$27.49

26004

FUSE-ASSY

26004-1011

$97.73

26004A

FUSE-ASSY,ACCESSORY

26004-1014

$71.61

26006

FUSE,10A,L=25

26006-003

$3.61

26006A

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-1002

$3.89

26006B

FUSE,30A,L=25

26006-1005

Unavailable

26011

WIRE-LEAD,L=285

26011-095

$11.12

26011A

WIRE-LEAD,ACCESSORY GROUND

26011-1100

Unavailable

26011C

WIRE-LEAD,BATTERY,(+)

26011-1120

$40.78

26011D

WIRE-LEAD,BATTERY,(-)

26011-1124

$40.78

26012

YUA BAT YB18L-A

26012-1039

Unavailable

27002

RELAY-ASSY,TURN SIGNAL

27002-011

$103.40

27002A

RELAY,TURN SIGNAL

27002-016

Unavailable

27003

HORN,F.BLACK

27003-1064

$122.16

27010

SWITCH,RESERVE LIGHTI

27010-1024

Unavailable

27010B

SWITCH,SELF CANCELING

27010-1079

$127.55

92001

BOLT,6X10

92001-137

$5.66

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,SPEED,L=58

92037-1163

$4.93

92059

TUBE,8X9X200

92059-1150

Unavailable

92072

BAND,L=149

92072-031

$3.82

92072A

BAND,L=218

92072-032

$3.81

92072B

BAND,L=186

92072-056

$3.81

110

BOLT 6X22

112B0622

Unavailable

115

BOLT-SMALL,8X16,BLACK

115C0816

Unavailable

220

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

461A

WASHER-SPRING,8MM,BLACK

461K0800

Unavailable
