1983 Kawasaki Spectre Meters Diagram

← All diagrams

Find the part on the Meters diagram for your 1983 Kawasaki Spectre, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

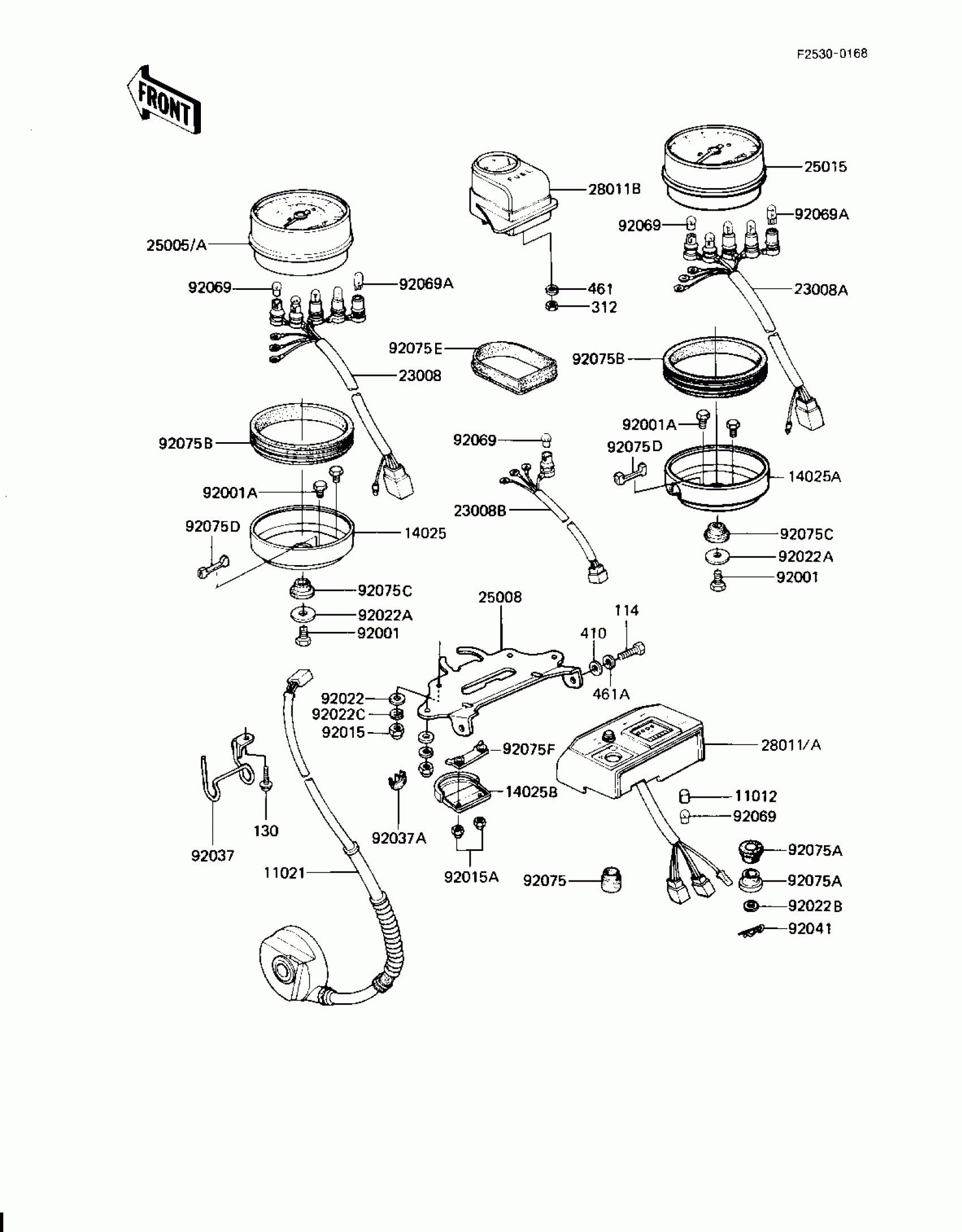

1983 Kawasaki Spectre Meters Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,BULB,GREEN

11012-1172

1
Out of stock

11021

CASE-ASSY

11021-1011

1
Out of stock

14025

COVER,SPEEDOMETER,BLA

14025-1442

1
Out of stock

14025A

COVER,TACHOMETER,BLAC

14025-1443

1
Out of stock

14025B

COVER,FUEL METER,BLAC

14025-1444

1
Out of stock

23008

1

$98.20

In stock

23008A

1

$89.66

In stock

23008B

1

$46.05

In stock

25005

SPEEDOMETER,MPH

25005-1168

1

$715.55

In stock

25005A

*** N.L.A.*** (Canada)

25005-1169

1
Out of stock

25008

BRACKET-METER

25008-1035

1
Out of stock

25015

TACHOMETER,X1000RPM

25015-1113

1

$484.51

In stock

28011

METER,TOTAL & TRIP

28011-1014

1

$1,204.84

In stock

28011A

METER,TOTAL & TRIP (Canada)

28011-1015

1
Out of stock

28011B

METER,FUEL

28011-1025

1
Out of stock

92001

BOLT,6X8

92001-1442

1
Out of stock

92001A

BOLT,HEX HEAD,6X14

92003-204

1
Out of stock

92015

NUT-CAP,6MM,BLACK

322C0600

1
Out of stock

92015A

NUT,CAP,4MM

92015-1144

1
Out of stock

92022

WASHER PLAIN

411F0600

1

$1.08

In stock

92022A

1

$5.71

In stock

92022B

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92022C

WASHER-SPRING,6MM,BLACK

461K0600

1
Out of stock

92037

CLAMP

92037-1230

1

$12.97

In stock

92037A

CLAMP,HOSE

92037-1249

1
Out of stock

92041

PIN,COTER

92041-006

1
Out of stock

92069

BULB 12V 1.5W

92069-017

1
Out of stock

92069A

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92075

DAMPER,TRIP METER

92075-1286

1

$9.29

In stock

92075A

DAMPER,TRIP METER

92075-1300

1
Out of stock

92075B

DAMPER,METER

92075-1315

1
Out of stock

92075C

DAMPER

92075-1316

1
Out of stock

92075D

DAMPER

92075-1317

1

$9.20

In stock

92075E

DAMPER,FUEL METER

92075-1318

1
Out of stock

92075F

DAMPER

92075-1319

1
Out of stock

114

BOLT-SMALL, 8X18

115C0818

1
Out of stock

130

BOLT-FLANGED,6X8

130B0608

1
Out of stock

312

NUT-HEX

312B0300A

1

$2.25

In stock

410

WASHER,PLAIN,8MM

92022-1554

1
Out of stock

461

WASHER SPRING 3MM

461F0300

1
Out of stock

461A

WASHER-SPRING,8MM,BLACK

461K0800

1
Out of stock
