1983 Kawasaki Spectre Meters Diagram

← All diagrams

Find the part on the Meters diagram for your 1983 Kawasaki Spectre, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

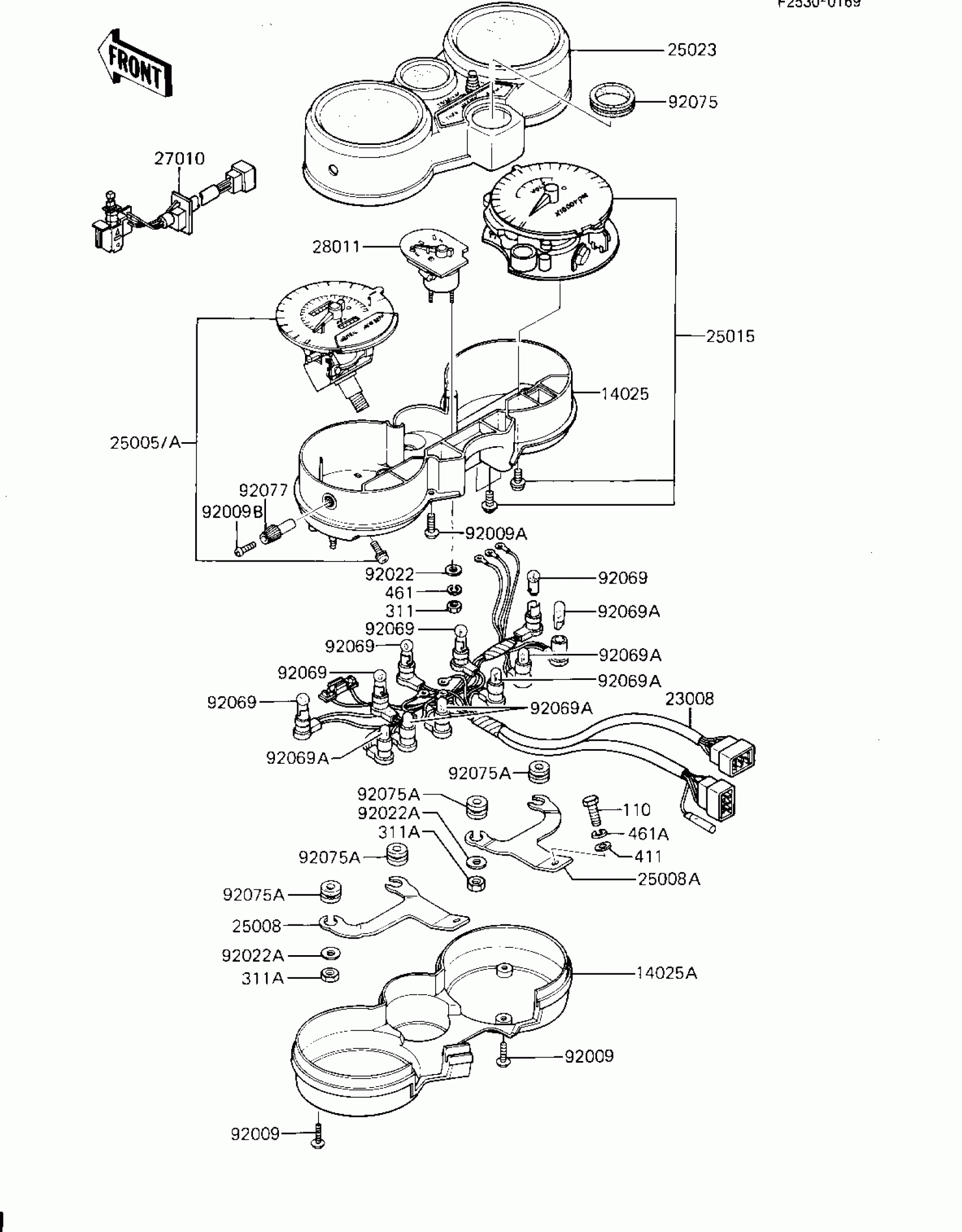

1983 Kawasaki Spectre Meters Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14025

COVER,METER HOUSING

14025-1594

1
Out of stock

14025A

COVER,METER CASE,LWR

14025-1595

1
Out of stock

23008

SOCKET-ASSY,METER

23008-1174

1
Out of stock

25005

SPEEDOMETER,MPH

25005-1202

1
Out of stock

25005A

SPEEDOMETER,KPH (Canada)

25005-1203

1
Out of stock

25008

BRACKET-METER,LH

25008-1053

1
Out of stock

25008A

BRACKET-METER,RH

25008-1054

1
Out of stock

25015

TACHOMETER,X1000RPM

25015-1136

1
Out of stock

25023

COVER-METER CASE,UPP

25023-1045

1
Out of stock

27010

SWITCH TACHO/JOLT

27010-1090

1
Out of stock

28011

METER,FUEL

28011-1033

1
Out of stock

92009

SCREW,4X16,BLACK

92009-1158

1
Out of stock

92009A

SCREW,TAPPING,4X16

92009-1163

1
Out of stock

92009B

SCREW,2X6,BLACK

92009-1172

1
Out of stock

92022

WASHER,3MM

92022-1374

1
Out of stock

92022A

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92069

BULB 12V 1.5W

92069-017

1
Out of stock

92069A

BULB,12V 3.4W,T10

92069-1007

1
Out of stock

92075

DAMPER RUBBER

92075-1256

1
Out of stock

92075A

DAMPER

92075-1435

1
Out of stock

92077

KNOB,METER

92077-1015

1
Out of stock

110

BOLT, 6X14, BLACK

112C0614

1
Out of stock

311

NUT-HEX

311B0300

1
Out of stock

311A

NUT-HEX

311B0500

1
Out of stock

411

WASHER PLAIN

411F0600

1
Out of stock

461

WASHER SPRING 3MM

461F0300

1
Out of stock

461A

WASHER-SPRING,6MM,BLACK

461K0600

1
Out of stock
