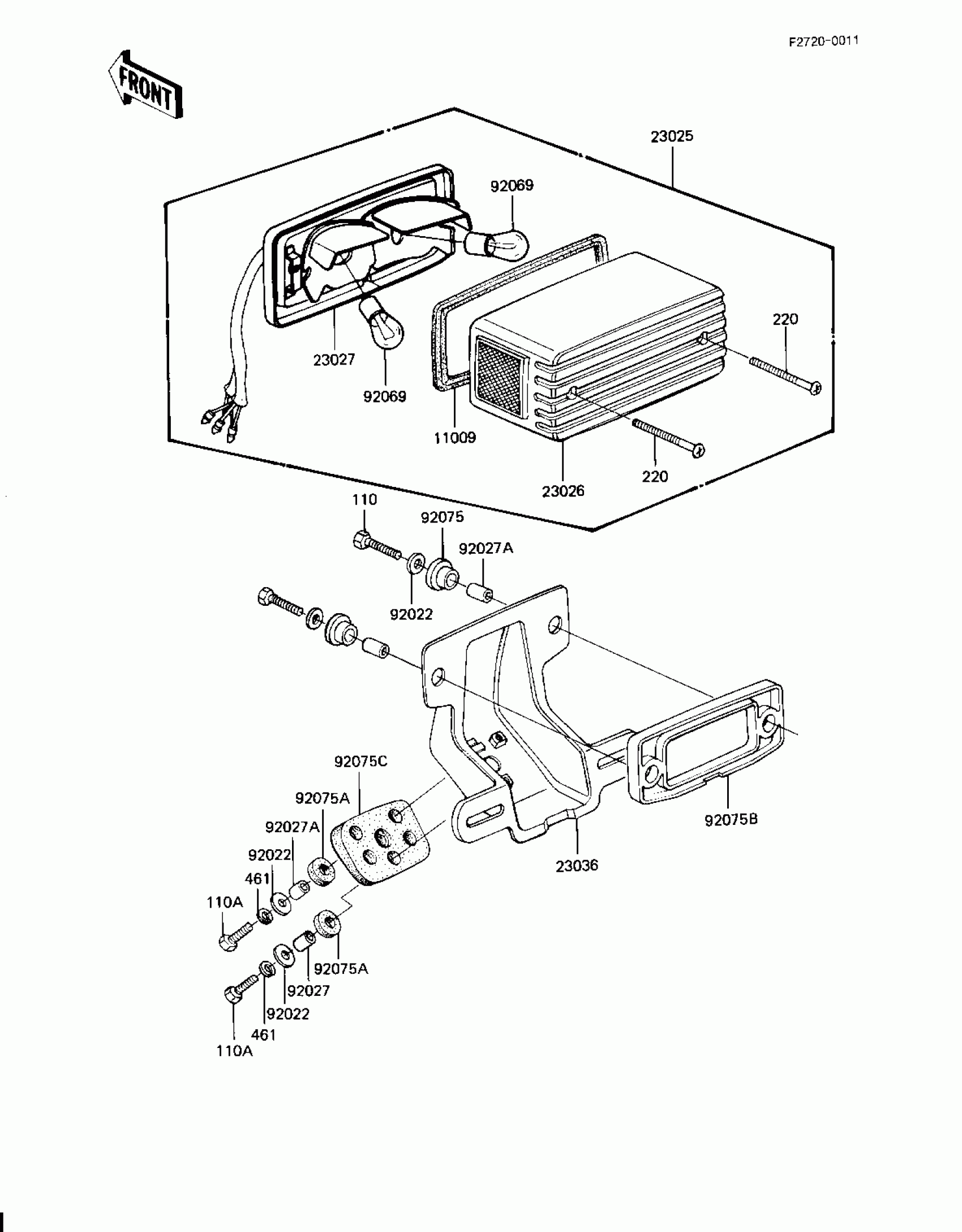

Kawasaki Spectre TAILLIGHT Diagram

Description

Price

11009

GASKET,TAIL LAMP

11009-1221

$14.05

23025

LAMP-TAIL,BLACK

23025-1038

Unavailable

23026

LENS,TAIL LAMP

23026-1021

$141.52

23027

BODY-COMP-TAIL LAMP,B

23027-1025

$152.55

23036

BRACKET-TAIL LAMP,BLA

23036-1046

$105.24

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92027

COLLAR,6.8X10X14.5

92027-156

$3.81

92027A

COLLAR

92027-169

$4.64

92069

BULB,12V 27/8W

92069-059

$6.86

92075

DAMPER RUBBER

92075-1092

Unavailable

92075A

DAMPER,FENDER

92075-121

$3.51

92075B

DAMPER

92075-1282

Unavailable

92075C

DAMPER

92075-1283

$9.24

110

BOLT 6X22

112B0622

Unavailable

110A

BOLT-UPSET

112G0625

Unavailable

220

SCREW-PAN-CROS

220C0465

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
