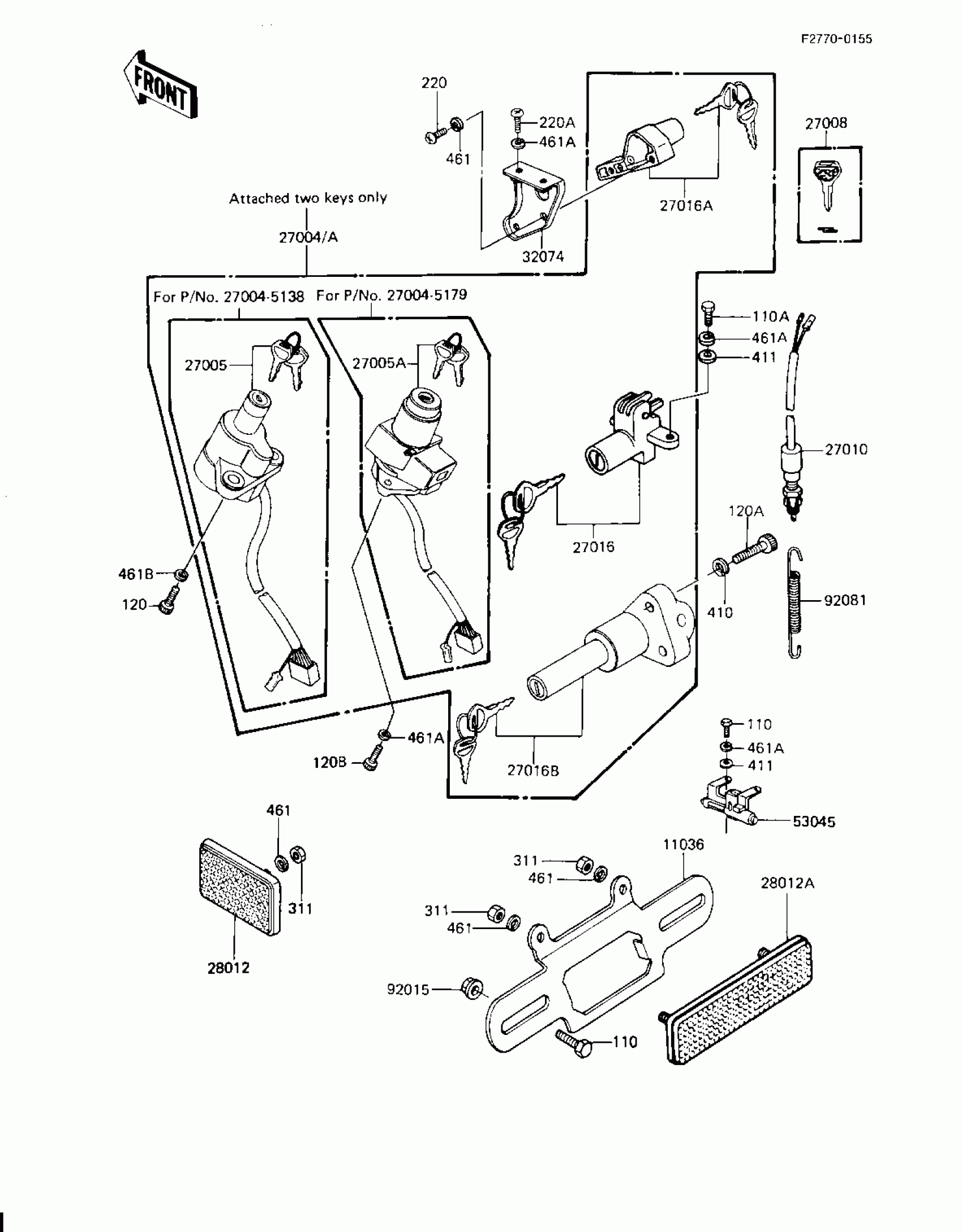

Kawasaki Spectre IGNITION SWITCH/LOCKS/REFLECTORS Diagram

Description

Price

11036

BRACKET,REFLECTOR,RR

11036-1150

Unavailable

27004A

SWITCH-ASSY,ALL

27004-5179

$249.19

27005A

SWITCH-ASSY-IGNITION

27005-5035

$196.81

27008

KEY-LOCK,BLANK

27008-1103

$16.44

27010

SWITCH,REAR BRAKE

27010-1019

$37.98

27016

LOCK ASSY,SEAT

27016-5015

$111.76

27016A

LOCK-ASSY,HELMET

27016-5070

Unavailable

27016B

LOCK-ASSY,STAND

27016-5043

$103.44

28012

REFLECTOR-REFLEX

28012-1003

$17.85

28012A

REFLECTOR-REFLEX,RR

28012-1005

$28.89

32074

BRACKET-LOCK

32074-1026

$7.08

53045

HOOK ASSY,HELMET

53045-1001

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92081

SPRING,BRAKE LAMP SWI

92081-1086

Unavailable

110

BOLT-UPSET,6X12

112G0612

Unavailable

110A

BOLT-UPSET 6X14

112B0614

Unavailable

120A

BOLT-SOCKET,8X30

120P0830

Unavailable

120B

BOLT-SOCKET,6X16

120S0616

Unavailable

220

SCREW PAN HEAD 5X8

220B0508

Unavailable

220A

SCREW PAN HEAD 6X10

220B0610

Unavailable

311

NUT-HEX

311B0500

$0.47

410

WASHER PLAIN 8MM

410B0800

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 5MM

461F0500

Unavailable

461A

WASHER SPRING 6MM

461F0600

Unavailable
