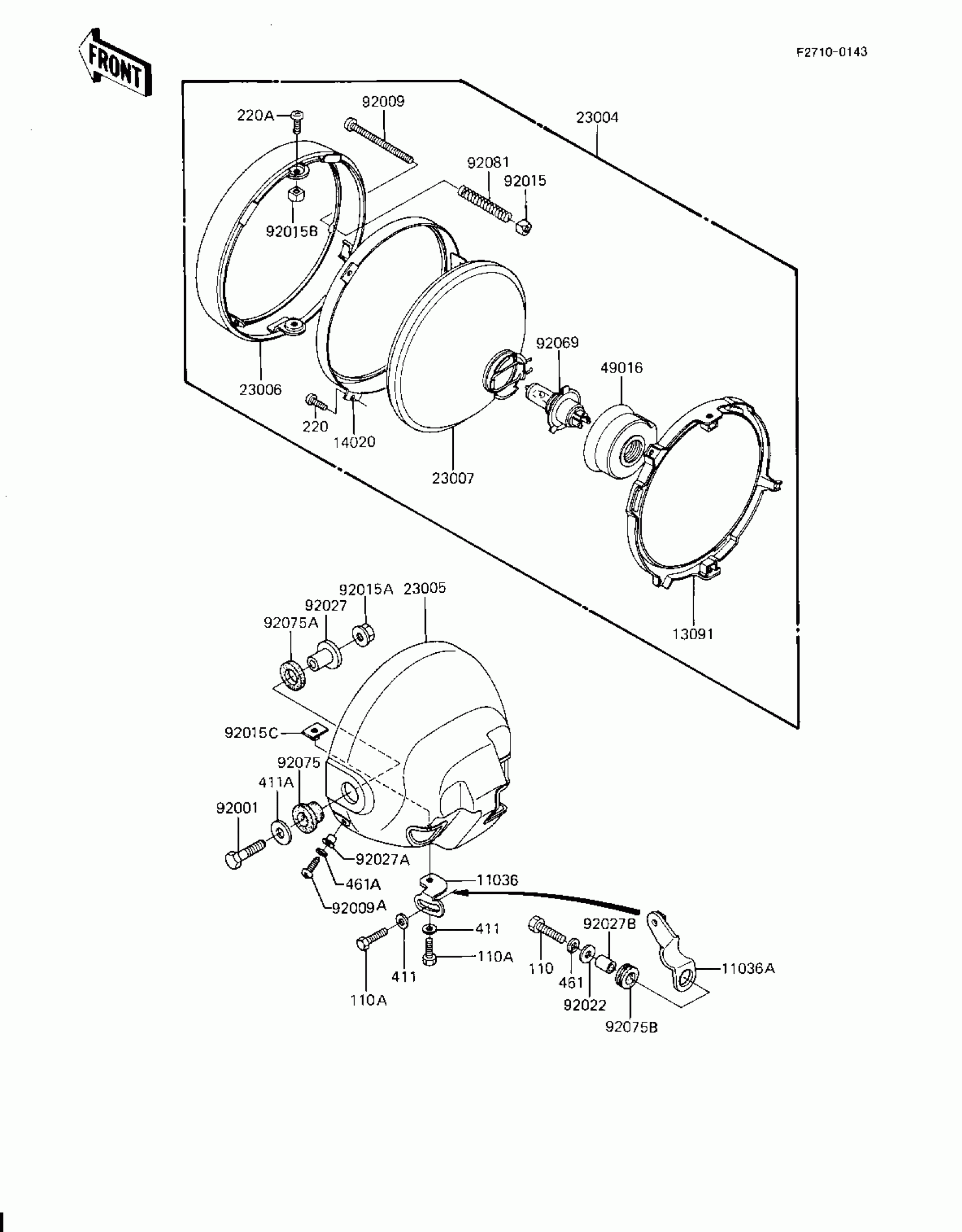

Kawasaki Spectre HEADLIGHT (KZ1100-D2) Diagram

#

Description
Price

11036

BRACKET-A,HEAD LAMP

11036-1649

Unavailable

11036A

BRACKET-A,HEAD LAMP

11036-1737

Unavailable

13091

HOLDER,HEAD LAMP

13091-1160

Unavailable

14020

RETAINER,HEAD LAMP

14020-1018

Unavailable

23004

LAMP-HEAD

23004-1082

$310.46

23005

BODY-COMP-HEAD LAMP,E

23005-1026-H8

$102.95

23006

RIM-LAMP

23006-1019

$56.14

23007

LENS-COMP,"001-1970" MARK

23007-1009

$163.61

49016

COVER-SEAL

49016-1016

Unavailable

92001

BOLT 8X38

92001-1405

$12.52

92009

SCREW,4X52

92009-1033

$4.58

92009A

SCREW,5X16

92009-1693

$3.92

92015

NUT,4MM,FOCUS ADJUST

23020-018

$3.57

92015A

NUT,FLANGED,8MM

92015-1014

$0.57

92015B

NUT,5MM

92015-1157

$4.32

92015C

NUT,6MM,HEAD LAMP

92015-1231

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92027

COLLAR,L=20

92027-1131

$8.71

92027A

COLLAR,HEAD LAMP,BLACK

92027-1503

$3.92

92027B

COLLAR,6.8X10X12

92027-162

$4.93

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92075

DAMPER,HEAD LAMP FITTING

92075-1109

$5.42

92075A

DAMPER,HEAD LAMP FITTING

92075-1110

$4.42

92075B

DAMPER RUBBER,RR FENR

92075-209

$3.57

92081

SPRING,FOCUS ADJUSTING

23014-005

$3.19

110

BOLT-UPSET

112G0625

Unavailable

110A

BOLT, 6X14, BLACK

112C0614

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.54

220A

SCREW PAN HEAD 5X10

220B0510

Unavailable

411

WASHER PLAIN

411F0600

$0.95

411A

WASHER-PLAIN,8MM

411D0800

$2.15

461

WASHER SPRING 6MM

461F0600

Unavailable

461A

WASHER-SPRING,5MM,BLACK

461K0500

Unavailable
