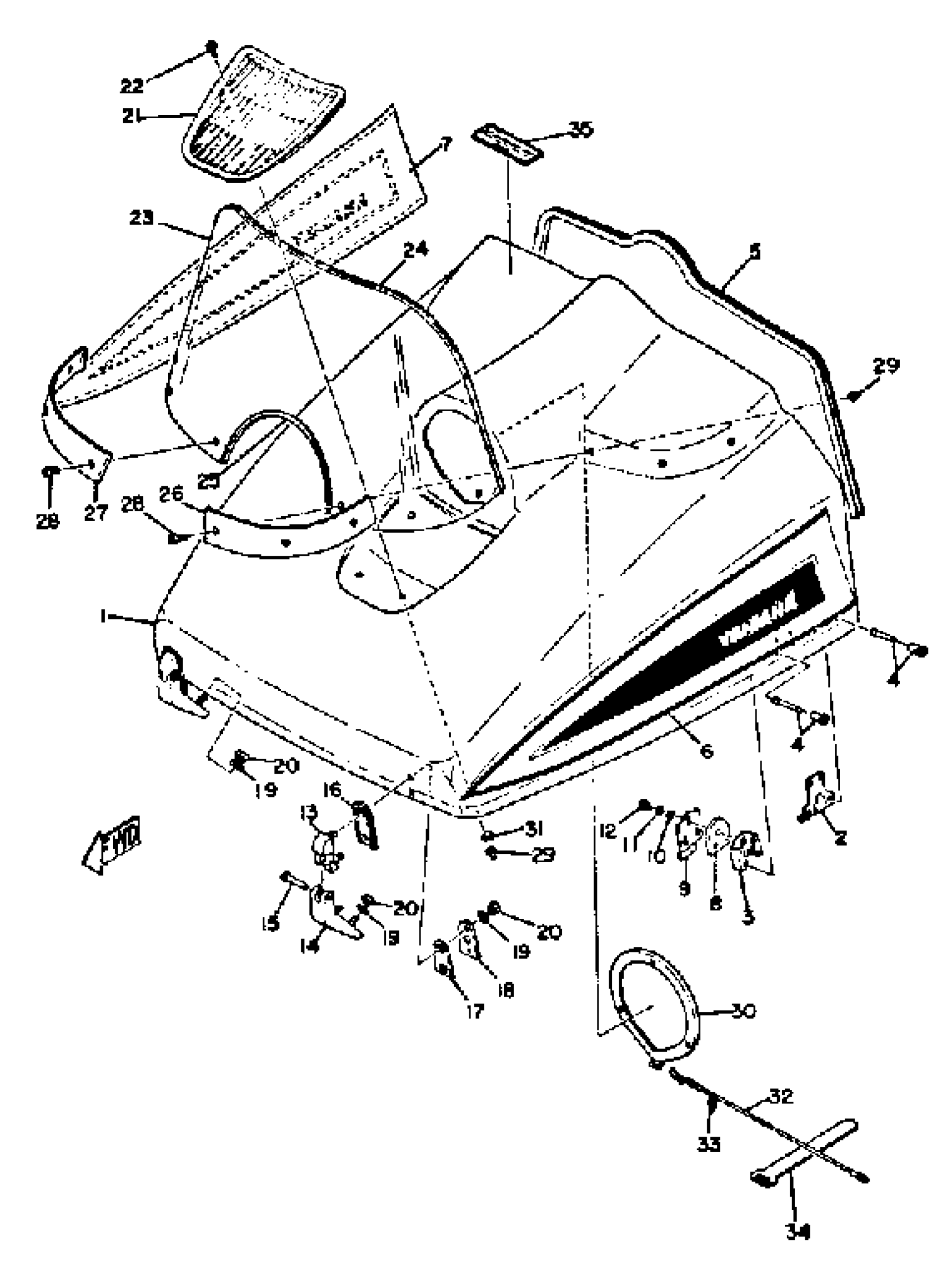

Find the part on the Shroud diagram for your 1972 Yamaha SL433, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha SL433 Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD

(806-77111-00-00)

1
Out of stock

1

SHROUD

(806-77111-00-00)

1
Out of stock

2

. BODY, LATCH 1

806-77171-00-00

1
Out of stock

3

CLAMP 4

810-77138-00-00

1
Out of stock

4

. RIVET, BLIND ()806-77175-00)

90267-40026-00

1
Out of stock

5

TRIM 2

(806-77166-00-00)

1
Out of stock

6

ORNAMENT 1

(828-77163-00-00)

1
Out of stock

7

ORNAMENT, SHROUD RIGHT

828-77164-00-00

1
Out of stock

8

WASHER 2

810-77179-00-00

1
Out of stock

9

CLAMP 2

810-77136-00-00

1
Out of stock

10

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

BOLT, HEXAGON

97013-05010-00

1

$0.85

In stock

13

HINGE 1

(806-77145-00-00)

1
Out of stock

14

HINGE 3

806-77147-00-00

1
Out of stock

15

PIN (806-77157-00)

90243-05002-00

1
Out of stock

16

DAMPER 1

(806-77198-00-00)

1
Out of stock

17

DAMPER 2

810-77199-00-00

1
Out of stock

18

PLATE, BACK UP 1

810-77153-00-00

1
Out of stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

21

LOUVER CMPLT

(810-77130-00-00)

1
Out of stock

22

SCREW, BINDING

98907-05016-00

—

$6.18

In stock

23

WINDSHIELD

(806-77210-00-00)

1
Out of stock

24

TRIM, UPPER

(806-77213-00-00)

1
Out of stock

25

TRIM 4

(806-77216-00-00)

1
Out of stock

26

TRIM, LOWER

(806-77214-00-00)

1
Out of stock

27

TRIM 3

806-77215-00-00

1
Out of stock

28

SCREW, BIND

98903-05016-00

1
Out of stock

29

NUT, T (802-77217-00)

90180-05004-00

1
Out of stock

30

HOLDER, ROD 1

(817-77139-00-00)

1
Out of stock

31

CLAMP 1

(810-77135-00-00)

1
Out of stock

32

STOPPER, SHROUD

(822-77118-00-00)

1
Out of stock

33

CLAMP, ROD

(806-77159-00-00)

1
Out of stock

34

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

35

LABEL, SAFETY

288-21659-00-00

1
Out of stock
