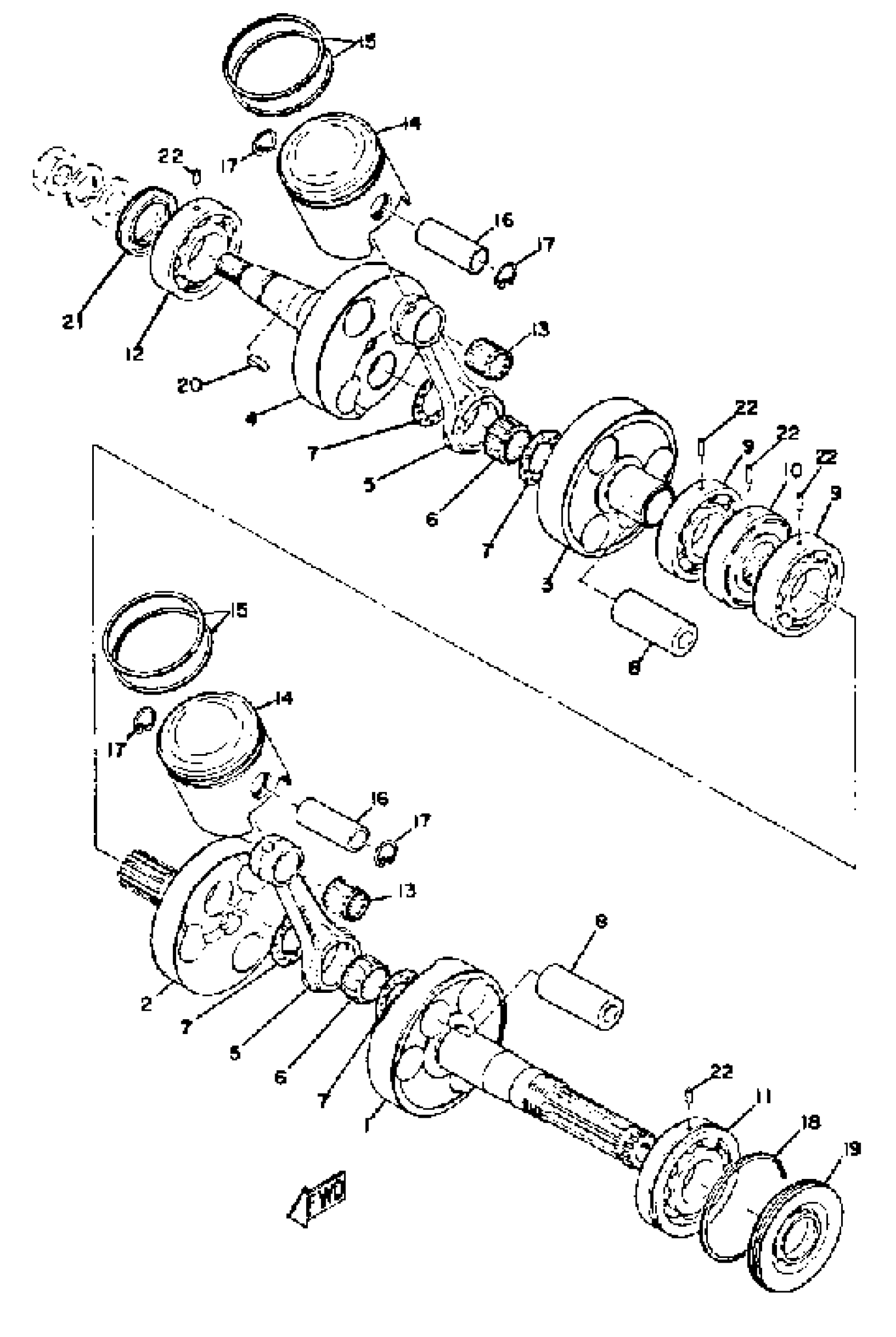

Find the part on the Crank - Piston diagram for your 1972 Yamaha SL433, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha SL433 Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(821-11400-00-00)

1
Out of stock

1

CRANK 1

(821-11412-00-00)

1
Out of stock

2

CRANK 2

(821-11422-01-00)

1
Out of stock

3

CRANK 3

(821-11432-01-00)

1
Out of stock

4

CRANK 4

(821-11442-00-00)

1
Out of stock

5

. ROD, CONNECTING (838-11651-00)

8A7-11651-00-00

1
Out of stock

6

BEARING

93310-424E8-00

1

$19.49

In stock

7

WASHER (152-11685-00)

90209-24073-00

1

$10.08

In stock

8

. PIN, CRANK 1

857-11681-00-00

1
Out of stock

9

BEARING(8V0)

93306-20633-00

1

$67.35

In stock

10

. SEAL, LABYRINTH 1

811-11515-00-00

1
Out of stock

11

. BEARING

93306-30603-00

1
Out of stock

12

BEARING(8V0)

93306-20633-00

1

$67.35

In stock

13

1

$32.87

In stock

14

PISTON STD

819-11631-01-96

1
Out of stock

14

PISTON 1 O/S 0.25 (819-11635-00)

819-11635-01-00

1
Out of stock

14

PISTON 2 O/S 0.50 (819-11636-00)

819-11636-01-00

1
Out of stock

15

PISTON RINGSET STD

818-11601-00-00

1
Out of stock

15

RING, PISTON 1ST

(818-11611-10-00)

1
Out of stock

15

RING, PISTON 2ND

(818-11611-20-00)

1
Out of stock

16

PIN, PISTON

818-11633-00-00

—

$28.05

In stock

17

CLIP 6041163400

93450-20026-00

—

$5.10

In stock

18

CIRCLIP, OUTER

93440-78011-00

1
Out of stock

19

OIL SEAL, SW-TYPE

93103-32054-00

1
Out of stock

20

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

21

OIL SEAL(83R)

93103-32156-00

—

$26.08

In stock

22

PIN,DOWEL (168)

93604-12037-00

—
Out of stock
