1972 Yamaha SL433 Carburetor Diagram

← All diagrams

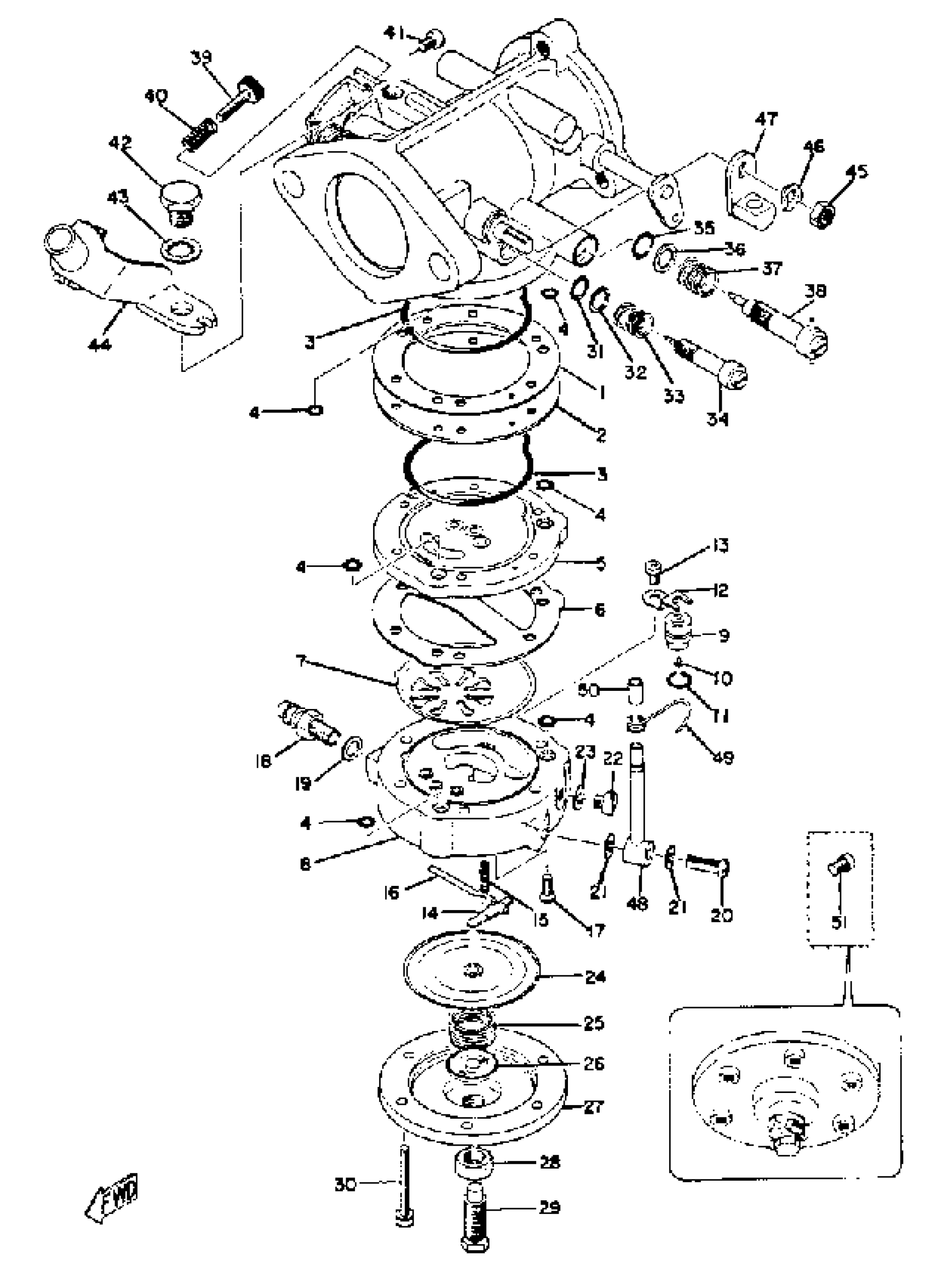

Find the part on the Carburetor diagram for your 1972 Yamaha SL433, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha SL433 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. GASKET

806-14536-00-00

1
Out of stock

1

CARBURETOR ASSEMBLY 1

(837-14501-00-00)

1
Out of stock

2

. DIAPHRAGM, PUMP

806-14541-00-00

1
Out of stock

3

. O-RING

806-14562-00-00

1
Out of stock

4

. O-RING

810-14561-00-00

1
Out of stock

5

BODY, PUMP 1

(824-14542-00-00)

1
Out of stock

6

GASKET

(806-14553-00-00)

1
Out of stock

7

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

8

BODY, PUMP 2

(810-14543-00-00)

1
Out of stock

9

VALVE SEAT ASSEMBLY

(837-14590-00-00)

1
Out of stock

10

. PIN, FLOAT

676-14186-00-00

1

$7.15

In stock

11

. O-RING

810-24486-00-00

1
Out of stock

12

PLATE, PIN FITTING

(810-14549-00-00)

1
Out of stock

13

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

14

ARM, FLOAT

(810-14547-00-00)

1
Out of stock

15

. SPRING

810-14556-00-00

1
Out of stock

16

PIN, FLOAT ARM

(806-14548-00-00)

1
Out of stock

17

SCREW, FLAT

98707-03008-00

—

$5.62

In stock

18

JOINT

(810-14568-00-00)

1
Out of stock

19

WASHER

(810-14558-00-00)

1
Out of stock

20

. SCREW

8A1-14592-00-00

1
Out of stock

21

. WASHER

806-14559-00-00

1
Out of stock

22

SCREW

(806-14567-01-00)

1
Out of stock

23

. WASHER

810-14597-00-00

1
Out of stock

24

DIAPHRAGM

810-14545-00-00

—
Out of stock

25

SPRING

(810-14555-00-00)

1
Out of stock

26

SEAT, SPRING

(810-14136-00-00)

1
Out of stock

27

BODY, PUMP 3

(810-14544-00-00)

1
Out of stock

28

. NUT

95380-08700-00

1

$3.07

In stock

29

. SCREW, STOP

824-14565-00-00

1
Out of stock

30

SCREW

(824-14567-00-00)

1
Out of stock

31

. O-RING

824-14563-00-00

1
Out of stock

32

. WASHER

806-14596-00-00

1
Out of stock

33

SPRING, AJST SCREW

(824-14531-00-00)

1
Out of stock

34

. SCREW, ADJUST

824-14522-00-00

1
Out of stock

35

. O-RING

824-14564-00-00

1
Out of stock

36

. WASHER

824-14597-00-00

1
Out of stock

37

SPRING, AJST SCREW

(824-14533-00-00)

1
Out of stock

38

SCREW, ADJUST

(824-14521-00-00)

1
Out of stock

39

SCREW, STOP

(810-14523-00-00)

1
Out of stock

40

SPRING, AJST SCREW

(806-14533-00-00)

1
Out of stock

41

SCREW

(810-14591-00-00)

1
Out of stock

42

BOLT(8X2)

90101-08344-00

—

$1.12

In stock

43

WASHER, IN.TOOTH

(92901-08300-00)

1
Out of stock

44

BRACKET, THROTTLE

(824-14571-00-00)

1
Out of stock

45

NUT, HEXAGON SMALL

95317-05700-00

—

$6.18

In stock

46

WASHER, LOCK

(806-14599-00-00)

1
Out of stock

47

. LEVER

810-14573-00-00

1
Out of stock

48

. PIPE, AIRVENT

810-14197-02-00

1
Out of stock

49

CLIP

(824-14159-00-00)

1
Out of stock

50

. CAP, BLIND

810-24462-01-00

1
Out of stock

51

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock
