1972 Yamaha SL433 Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1972 Yamaha SL433, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

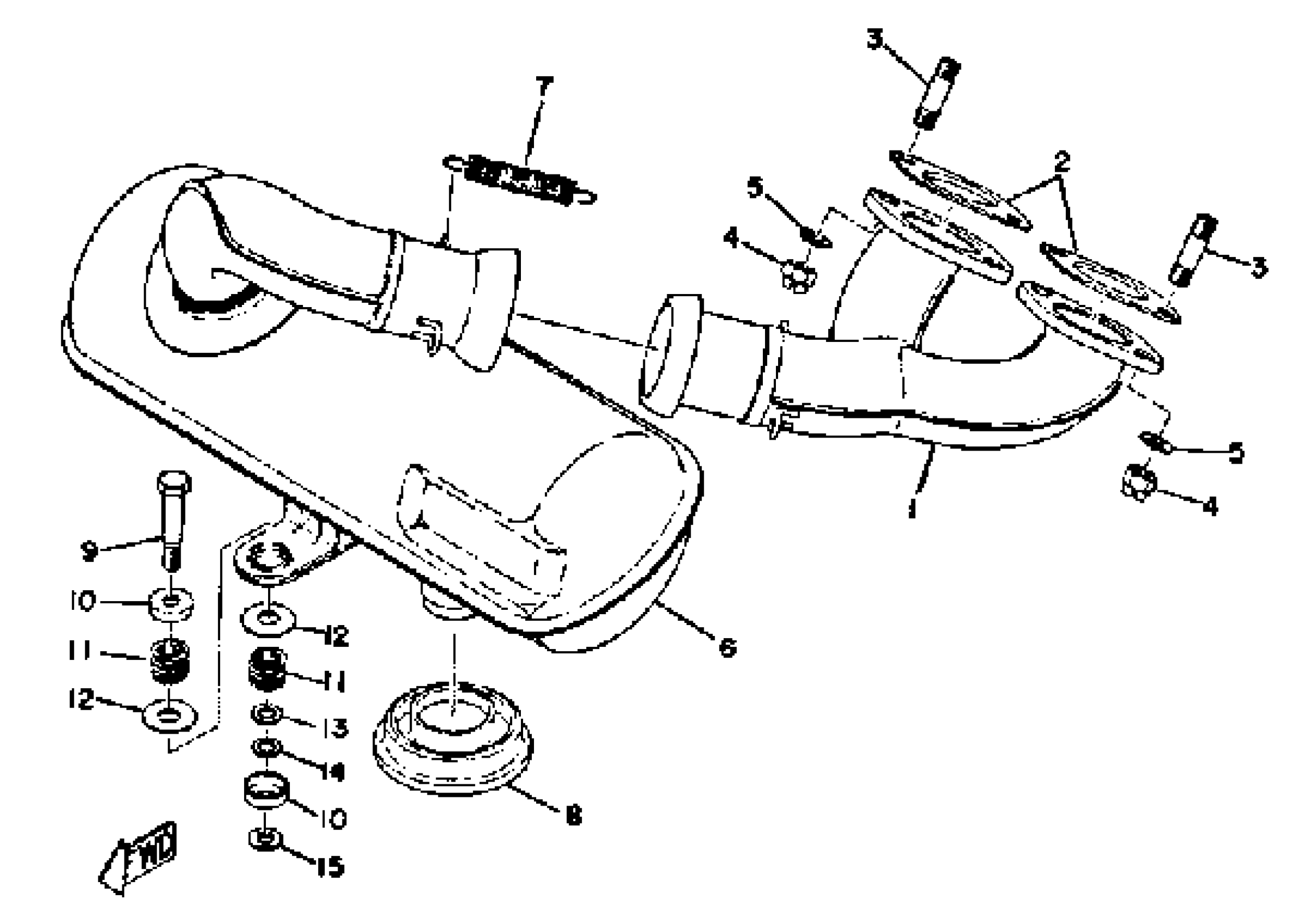

1972 Yamaha SL433 Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

(821-14610-00-00)

1
Out of stock

2

GASKET, EXHAUST PIPE

89A-14613-00-00

1

$13.42

In stock

3

BOLT, STUD

(90116-08044-00)

1
Out of stock

4

NUT, U

95617-08100-00

1

$6.78

In stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

MUFFLER ASSEMBLY L

(821-14710-00-00)

1
Out of stock

7

SPRING, MUFFLER

821-14773-00-00

1

$15.83

In stock

8

PROTECTOR, MUFF 1

(807-14718-00-00)

1
Out of stock

9

BOLT

90109-08293-00

1
Out of stock

10

PLATE, MUFFLER

(812-14793-00-00)

1
Out of stock

11

SPRING, COMPRESSION

(90501-18115-00)

1
Out of stock

12

WASHER, PLATE(3BM)

90201-105R9-00

1
Out of stock

13

SPACER

(90560-08065-00)

1
Out of stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

15

WASHER, PLATE

(90201-07080-00)

1
Out of stock
