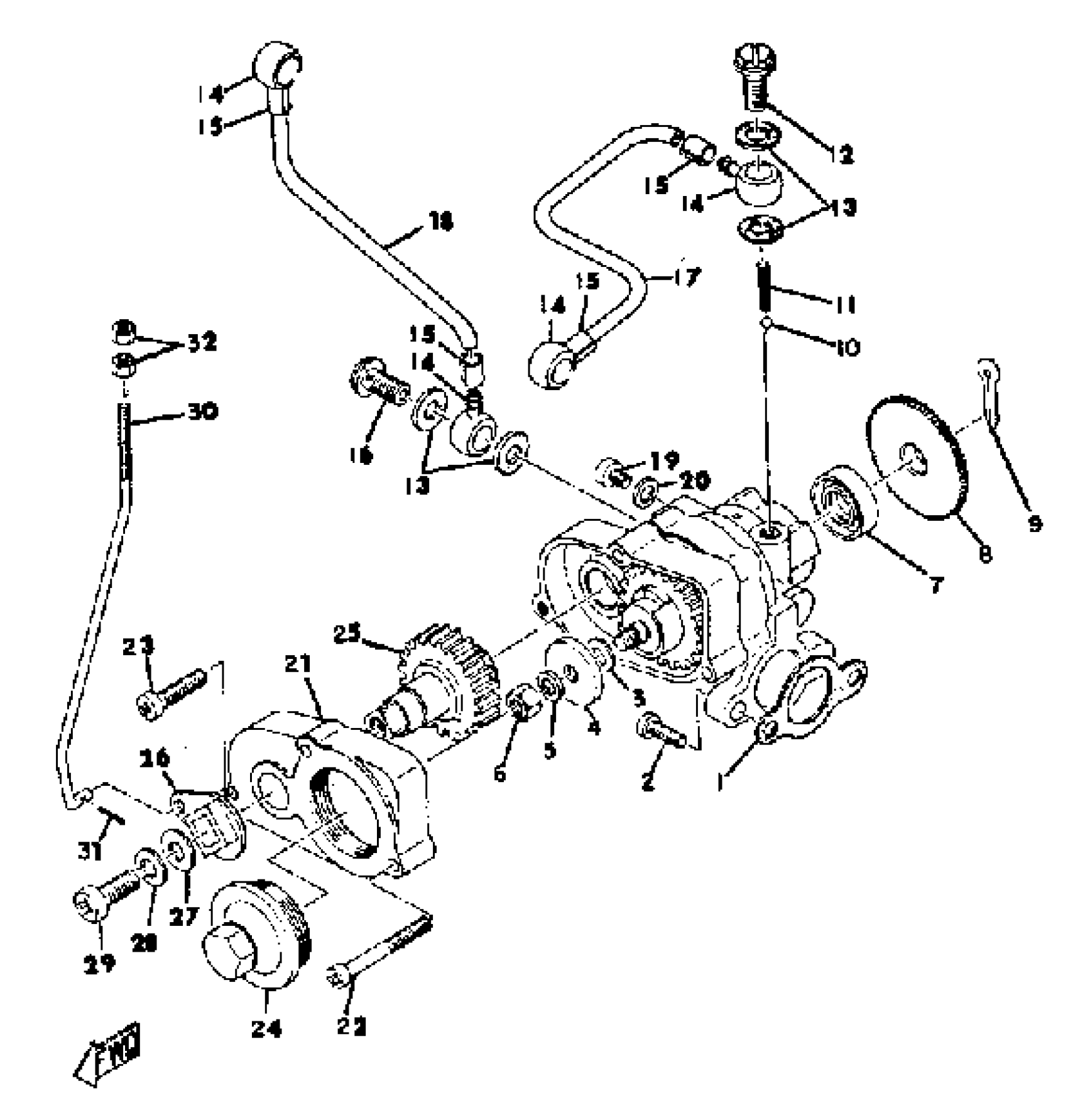

Find the part on the OIL Pump diagram for your 1972 Yamaha SL433, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha SL433 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

1

OIL PUMP ASSEMBLY

(826-13101-00-00)

1
Out of stock

2

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

3

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

4

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

7

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

8

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

9

. PIN, COTTER

91401-12018-00

1
Out of stock

10

BALL

93505-32002-00

1

$2.22

In stock

11

SPRING, COMPRESSION

(90501-02017-00)

1
Out of stock

12

BOLT UNION 137131650000

90401-06001-00

—

$7.48

In stock

13

GASKET(3FP)

90430-06224-00

1

$4.32

In stock

14

BANJO, DELIVERY PIPE

214-13162-01-00

1

$26.11

In stock

15

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

16

BOLT UNION 137131650000

90401-06001-00

—

$7.48

In stock

17

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

18

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

19

SCREW, BIND

98980-04008-00

1

$3.26

In stock

20

GASKET 137131870000

90430-04004-00

—
Out of stock

21

COVER, AJST PULLEY

(821-13146-00-00)

1
Out of stock

22

SCREW, PAN HEAD(MK5)

98507-04035-00

—

$6.69

In stock

23

SCREW, PAN HEAD

98517-04020-00

—

$6.18

In stock

24

CAP, PUMP CASE

(807-13143-00-00)

1
Out of stock

25

GEAR, PUMP CONTROL

(821-13154-00-00)

1
Out of stock

26

LEVER, PUMP CONTROL

821-13156-00-00

1
Out of stock

26

SCREW, PAN

98507-06014-00

—

$6.18

In stock

27

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

28

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

30

ROD, PUMP CONTROL

824-13157-00-00

1
Out of stock

31

. PIN, COTTER

91490-12012-00

1

$2.77

In stock

32

NUT, HEXAGON (807-13139-00)

90170-03008-00

1
Out of stock
