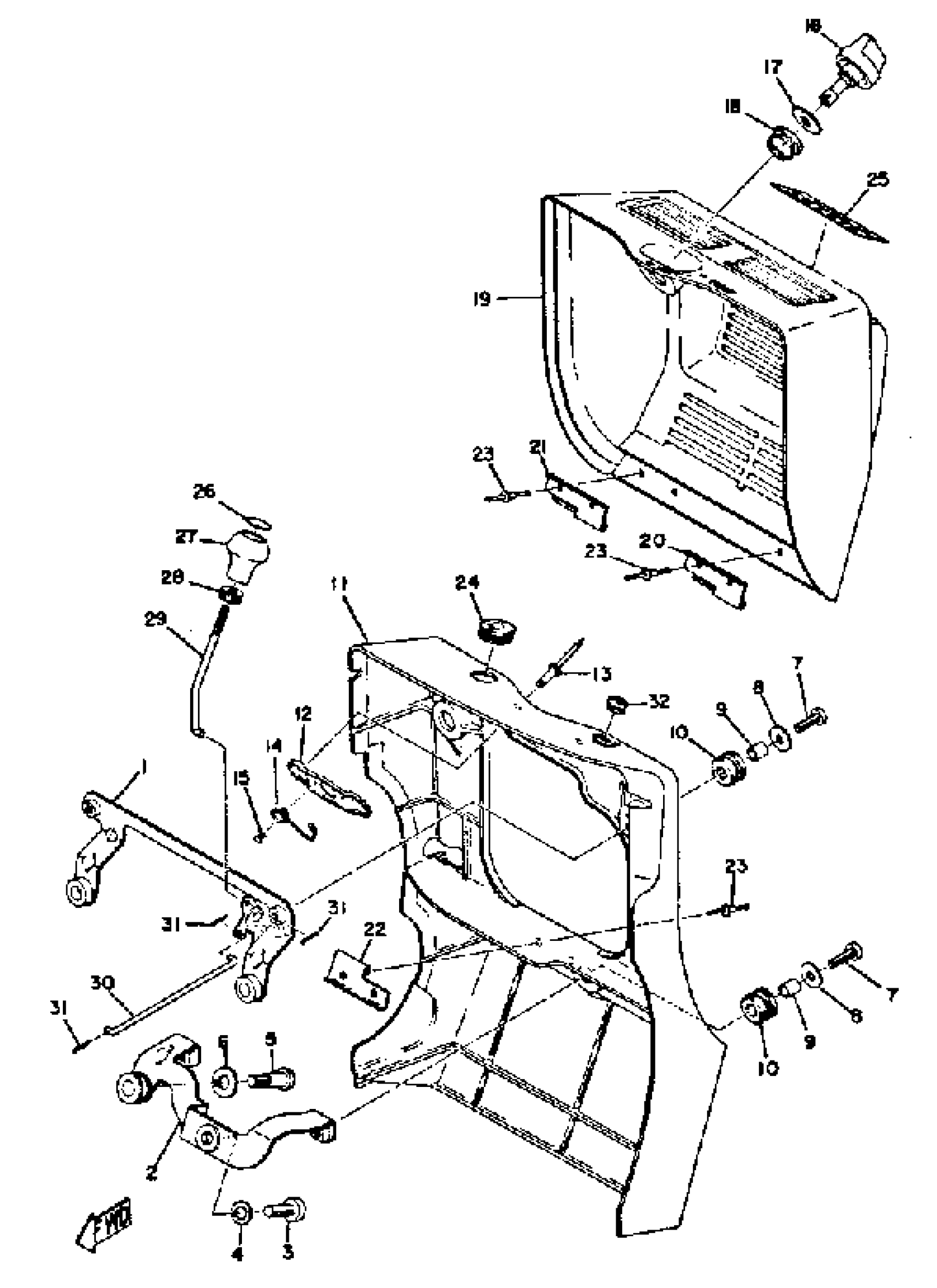

Find the part on the Engine Cowl diagram for your 1972 Yamaha SL433, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha SL433 Engine Cowl Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET 1

(837-77421-00-00)

1
Out of stock

2

BRACKET 2

(837-77422-00-00)

1
Out of stock

3

SCREW, PAN HEAD(N28)

98507-08025-00

—

$0.78

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

SCREW, SPEC''L SHAPE

90149-08056-00

1
Out of stock

6

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

7

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

8

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

9

COLLAR (J10)

90387-06026-00

1

$6.91

In stock

10

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

11

COWL, ENGINE

(824-77411-00-00)

1
Out of stock

12

BRACKET 4

(807-77424-00-00)

1
Out of stock

13

RIVET, BLIND

90267-40029-00

1

$6.68

In stock

14

SPRING

(615-42754-00-00)

1
Out of stock

15

RIVET, ROUND HEAD

(90260-02003-00)

1
Out of stock

16

FASTNER

(811-42753-00-00)

1
Out of stock

17

WASHER 6154275100

90201-08103-00

—

$5.51

In stock

18

BUSHING

(807-77446-00-00)

1
Out of stock

19

LID, ENGINE COWL

(824-77425-00-00)

1
Out of stock

20

HINGE 1

(811-77475-00-00)

1
Out of stock

21

HINGE 2

(811-77476-00-00)

1
Out of stock

22

HINGE 3

811-77478-00-00

1
Out of stock

23

UNAVAILABLE IN PRICE BOOK (90267-40035)

811-77459-00-

1
Out of stock

24

GROMMET

(90480-01049-00)

1
Out of stock

25

EMBLEM 1

(837-77451-00-00)

1
Out of stock

26

INDICATOR, CHOKE

(617-24155-00-00)

1
Out of stock

27

KNOB, CHOKE

(624-41271-00-00)

1
Out of stock

28

KNOB CHOKE 2

617-41272-01-00

1
Out of stock

29

ROD, CHOKE 1

(824-41256-00-00)

1
Out of stock

30

ROD, CHOKE 2

(824-41257-00-00)

1
Out of stock

31

. PIN, COTTER

91401-10015-00

1
Out of stock

32

GROMMET

(90480-10008-00)

1
Out of stock
