1972 Yamaha SL433 Crankcase Diagram

← All diagrams

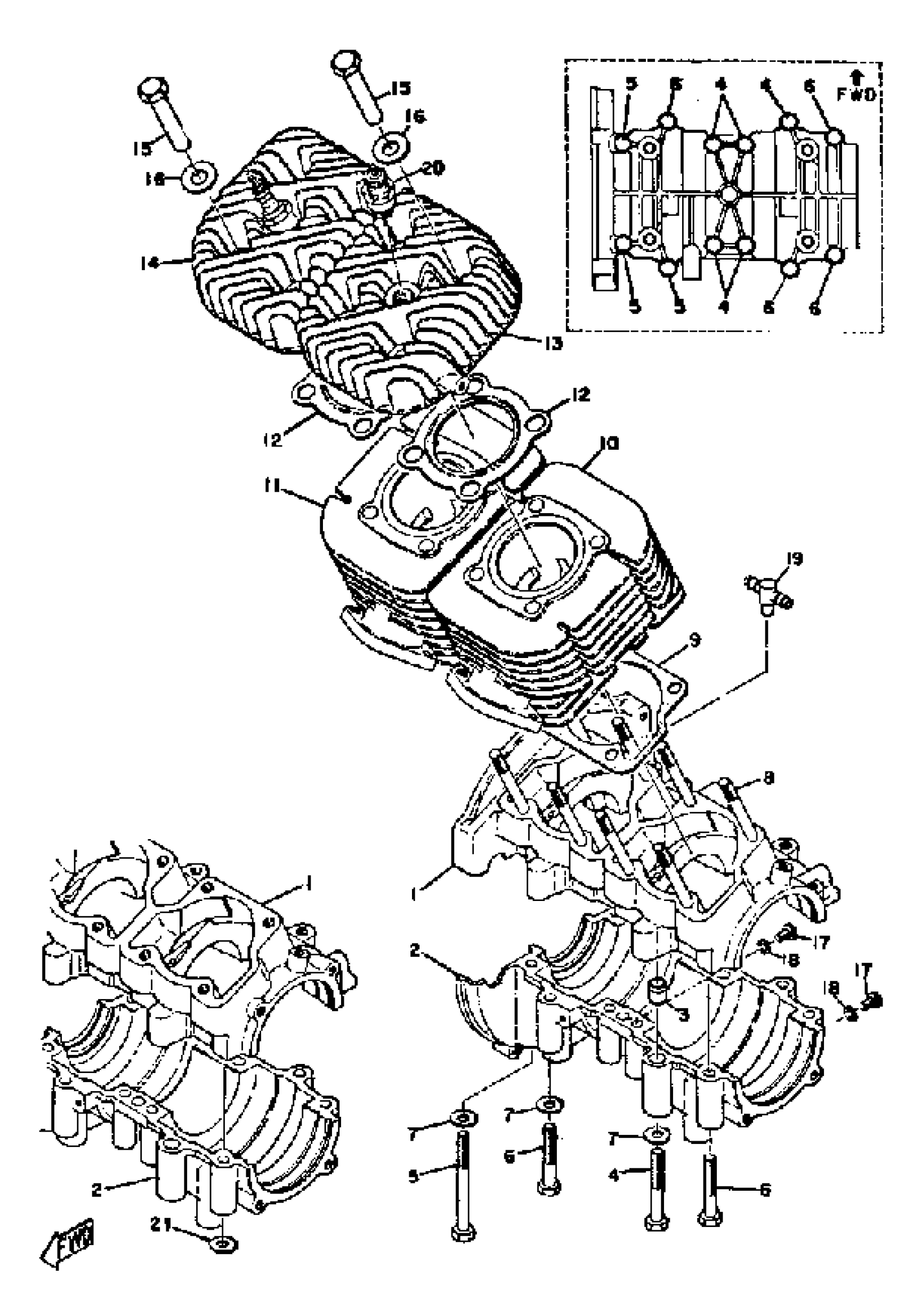

Find the part on the Crankcase diagram for your 1972 Yamaha SL433, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha SL433 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

(821-15100-00-00)

1
Out of stock

1

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

3

UNAVAILABLE IN PRICE BOOK (91800-05016)

91830-20016-00

1
Out of stock

4

BOLT (663)

97013-08060-00

1

$3.25

In stock

5

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

6

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

7

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

8

BOLT (248-11361-00)

90116-08064-00

1
Out of stock

9

GASKET, CYLINDER

857-11351-09-00

1

$3.62

In stock

10

CYLINDER 1

(826-11311-00-00)

1
Out of stock

11

CYLINDER 2

(826-11321-00-00)

1
Out of stock

12

GASKET, CYL HEAD 1

818-11181-09-00

1
Out of stock

13

HEAD, CYLINDER 1

(819-11111-00-00)

1
Out of stock

14

HEAD, CYLINDER 2

(819-11121-00-00)

1
Out of stock

15

NUT, SPEC''L SHAPE

90179-08090-00

1
Out of stock

16

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

17

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

18

GASKET

90430-06017-00

1
Out of stock

19

JOINT, BREATHER

J38-11116-00-00

—

$2.77

In stock

20

B7HS NGK 4PK

B7H-S0000-00-00

1

$4.95

In stock

21

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock
