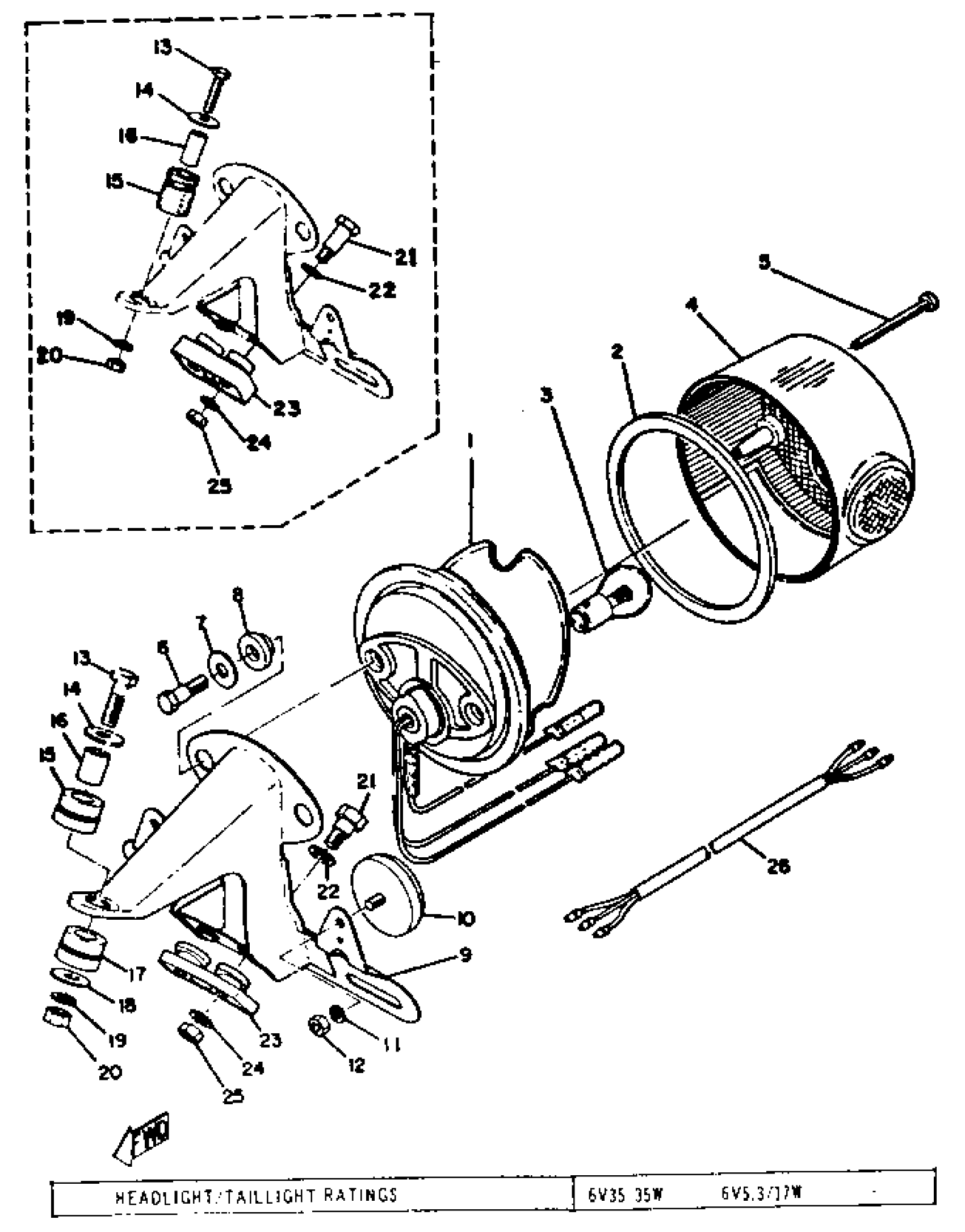

Find the part on the Tail Lamp diagram for your 1972 Yamaha DT2 (RT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha DT2 (RT2) Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

(275-84510-61-00)

1
Out of stock

1

BASE, TAILLIGHT

(275-84511-61-00)

1
Out of stock

2

. GASKET, LENS

275-84523-60-00

1
Out of stock

3

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

1
Out of stock

4

LENS, TAILLIGHT

(275-84521-60-00)

1
Out of stock

5

SCREW, PAN HEAD

98507-04050-00

1

$2.12

In stock

6

SCREW

(479-84526-00-00)

1
Out of stock

7

. DAMPER

275-84527-60-00

1
Out of stock

7

WASHER, SPECIAL

2H7-84754-00-00

1
Out of stock

9

BRACKET, LICENSE

(444-84751-60-20)

1
Out of stock

10

REFLECTOR, FRONT 1

(278-85111-00-00)

1
Out of stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

13

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

13

BOLT (682)

97095-06040-00

1

$2.36

In stock

14

WASHER

90209-06012-00

—

$4.71

In stock

15

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

15

GROMMET

(90480-14106-00)

1
Out of stock

16

COLLAR (275-84557-00)

90387-07039-00

1
Out of stock

16

COLLAR, LEVER 1

36Y-83913-01-00

—

$8.94

In stock

17

GROMMET (1E2)

90480-14182-00

—

$6.68

In stock

18

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

21

UNAVAILABLE IN PRICE BOOK (168-21738-00)

(168-21738-00-)

1
Out of stock

21

BOLT 338845520000

90109-06022-00

—

$8.14

In stock

22

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

23

DAMPER

214-84553-01-00

—

$6.72

In stock

23

DAMPER

308-84553-00-00

1
Out of stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

25

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

26

CORD, TAILLIGHT

(275-84517-00-00)

1
Out of stock
