1972 Yamaha DT2 (RT2) Head Lamp Diagram

← All diagrams

Find the part on the Head Lamp diagram for your 1972 Yamaha DT2 (RT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

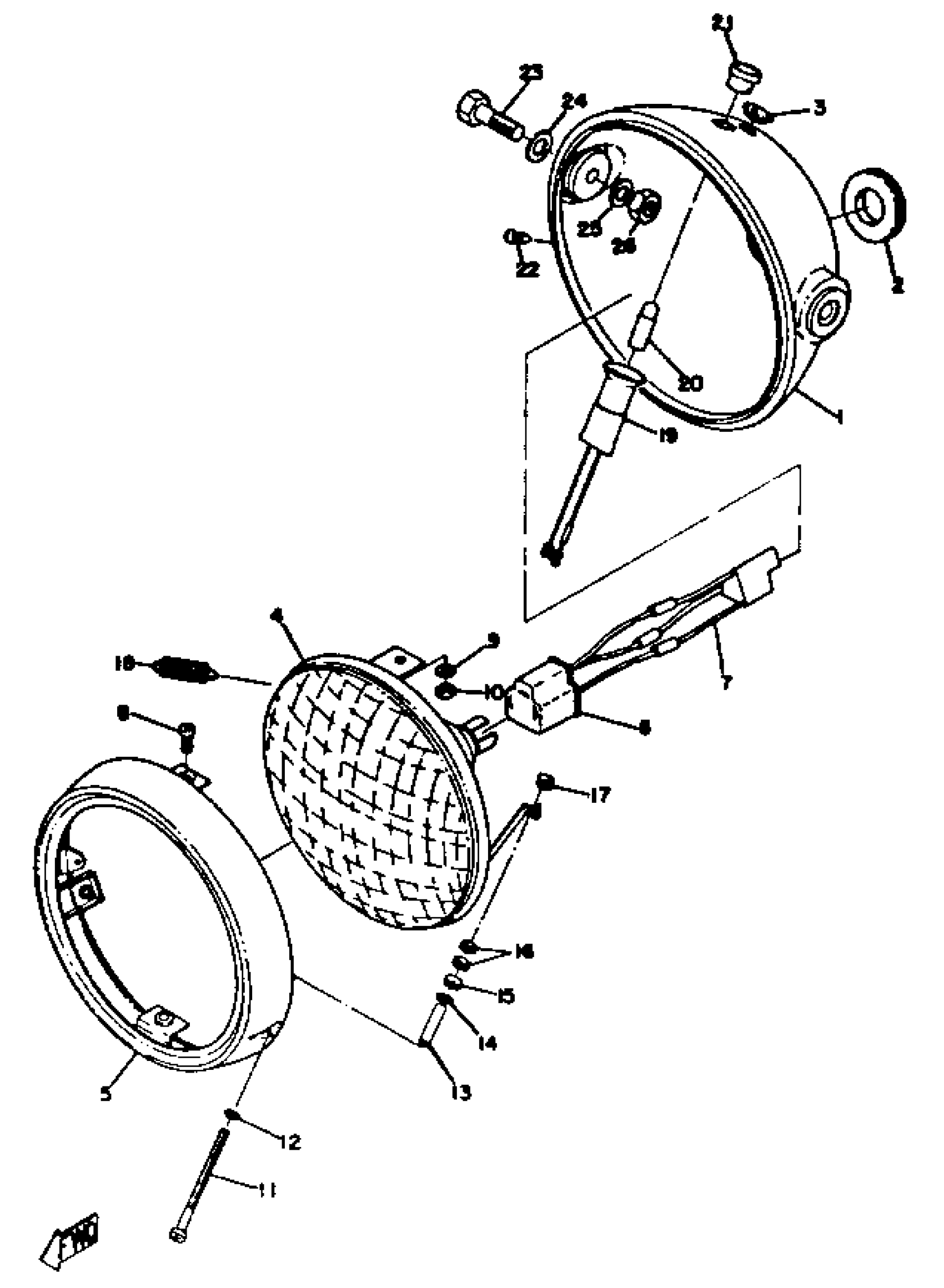

1972 Yamaha DT2 (RT2) Head Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY, HEADLIGHT

(214-84130-61-11)

1
Out of stock

1

BODY ASSEMBLY, HEADLIGHT

(214-84130-61-35)

1
Out of stock

1

BODY ASSEMBLY, HEADLIGHT

(214-84130-61-K1)

1
Out of stock

1

BODY ASSEMBLY, HEADLIGHT

(214-84130-61-M3)

1
Out of stock

2

PILOT LIGHT ASSEMBLY

214-84101-61-00

1
Out of stock

2

GROMMET, WIREHARNESS

214-84153-60-00

1
Out of stock

3

GROMMET

214-84154-60-00

1
Out of stock

4

LENS ASSEMBLY

233-84120-60-00

1
Out of stock

5

RIM, HEADLIGHT

233-84115-60-00

1
Out of stock

6

SOCKET, CORD

261-84312-61-00

1
Out of stock

7

CORD, HEADLIGHT

(214-84159-61-00)

1
Out of stock

8

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

11

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

12

WASHER,SPECIAL

233-84127-60-00

—

$2.78

In stock

13

. COLLAR, SCREW

233-84133-60-00

1
Out of stock

14

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

15

. SPACER

132-84328-60-00

1
Out of stock

16

NUT(6L4)

95380-04700-00

—

$5.62

In stock

17

NUT, ADJUST

198-84334-60-00

—

$6.43

In stock

18

SPRING

(132-84335-60-00)

1
Out of stock

19

. SOCKET CORD ASSEMBLY 2

214-84150-61-00

1
Out of stock

20

BULB,METER(6V1.5W)

104-83517-10-00

—

$7.43

In stock

21

BODY, PILOT LIGHT

256-84357-61-00

1
Out of stock

22

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

23

BOLT (682)

97013-08025-00

—

$6.80

In stock

24

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

25

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

26

NUT(6L2)

95333-08600-00

—

$3.20

In stock
