1972 Yamaha DT2 (RT2) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1972 Yamaha DT2 (RT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

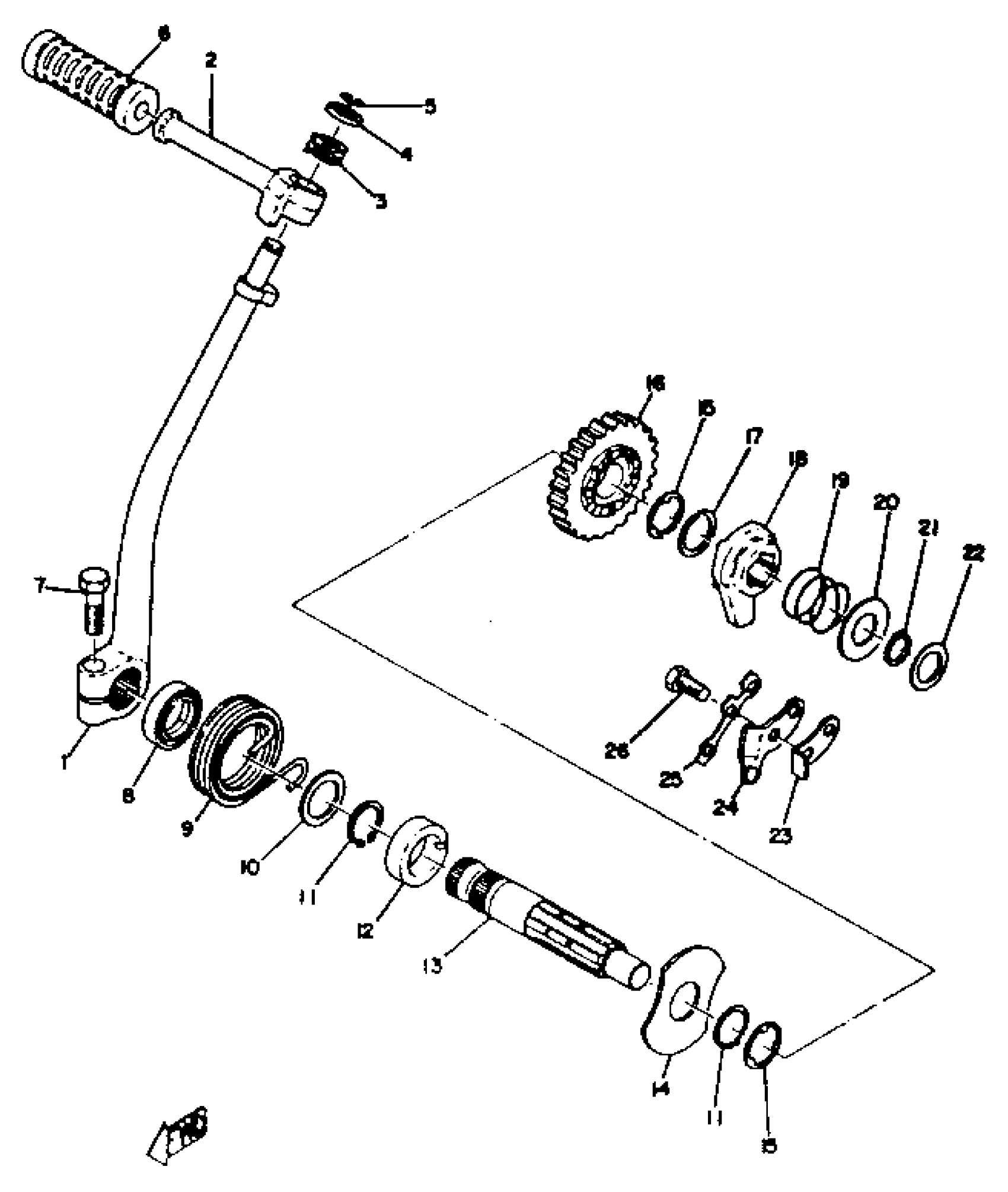

1972 Yamaha DT2 (RT2) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK CRANK ASSEMBLY

308-15610-00-93

1
Out of stock

2

LEVER, KICK

(214-15612-01-00)

1
Out of stock

3

1

$4.48

In stock

4

WASHER, KICK LEVER

214-15616-00-00

1

$5.63

In stock

5

CIRCLIP 214156170000

93440-11029-00

1

$5.74

In stock

6

COVER, KICK LEVER

214-15618-00-00

1

$6.72

In stock

7

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

8

OIL SEAL (20X30X6-648)

93101-20048-00

1

$7.31

In stock

9

SPRING TORSION 291156650000

90508-32061-00

1
Out of stock

10

SHIM 1

(137-17427-00-09)

1
Out of stock

11

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

12

SPACER (278-15666-01)

278-15666-00-00

1
Out of stock

13

AXLE, KICK

308-15661-00-00

1
Out of stock

14

COVER,SPRING

278-15676-00-00

1
Out of stock

15

WASHER, CLAW (168-15653-00)

90214-16009-00

1
Out of stock

15

WASHER, CLAW (168-15653-00)

90214-16009-00

1
Out of stock

16

GEAR, KICK (24T)

308-15641-00-00

1
Out of stock

17

CIRCLIP (525)

93410-20038-00

—

$2.62

In stock

18

WHEEL, RATCHET

(308-15671-00-00)

1
Out of stock

19

SPRING COMPRESSION168156750000

90501-16107-00

—
Out of stock

20

WASHER, PLAIN (1JL)

90201-155K6-00

—
Out of stock

21

CIRCLIP(1AR)

99009-15400-00

—

$5.10

In stock

22

SHIM

132-15644-00-00

1
Out of stock

23

STOPPER

214-15668-00-00

1
Out of stock

24

GUIDE, RATCHET WHL

(291-15674-00-00)

1
Out of stock

25

WASHER, LOCK

(291-15686-00-00)

1
Out of stock

26

BOLT(3DM)

97024-06020-00

—

$6.17

In stock
