1972 Yamaha DT2 (RT2) Speedometer Tachometer Diagram

← All diagrams

Find the part on the Speedometer Tachometer diagram for your 1972 Yamaha DT2 (RT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

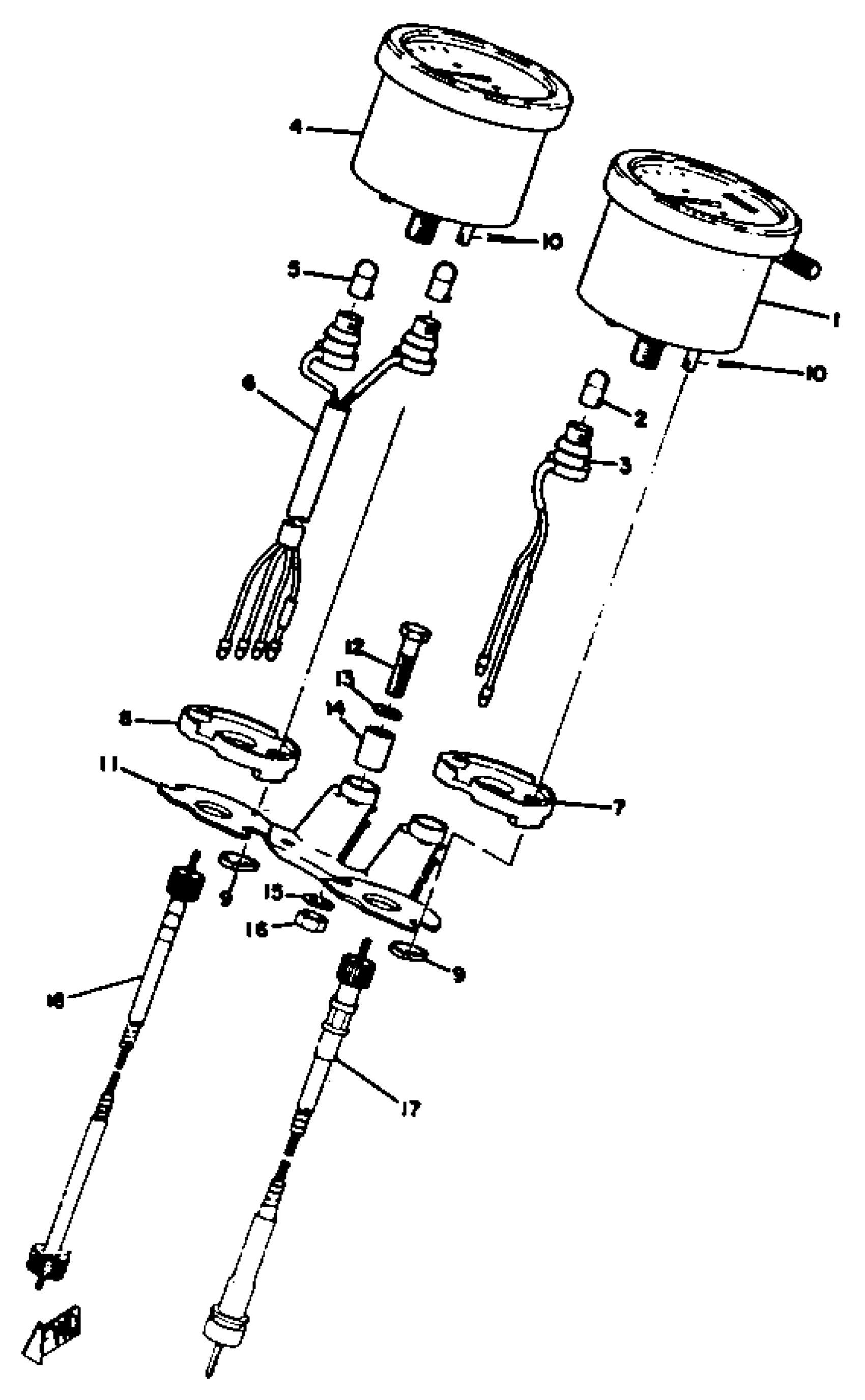

1972 Yamaha DT2 (RT2) Speedometer Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

(308-83570-30-00)

1
Out of stock

2

BULB,(6V3W)

122-83516-10-00

1
Out of stock

3

SOCKET, METER

(235-83536-21-00)

1
Out of stock

4

TACHOMETER ASSEMBLY

(308-83540-00-00)

1
Out of stock

4

TACHOMETER ASSEMBLY

(311-83540-00-00)

1
Out of stock

5

BULB,(6V3W)

122-83516-10-00

1
Out of stock

6

SOCKET CORD ASSEMBLY

(308-83520-00-00)

1
Out of stock

7

DAMPER

214-83523-00-00

1
Out of stock

8

DAMPER

237-83523-00-00

1

$8.70

In stock

9

WASHER 214835240000

90209-05029-00

—

$6.86

In stock

10

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

11

BRACKET, METER

(275-83519-00-33)

1
Out of stock

12

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

13

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

14

BUSH, SPEC''L RUBBER (214-83528-00)

90385-06001-00

1
Out of stock

16

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

17

SPEEDOMETER CABLE ASSY

1JN-83550-02-00

—

$36.69

In stock

18

TACHOMETER CABLE

214-83560-00-00

1
Out of stock

51

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
