1972 Yamaha DT2 (RT2) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1972 Yamaha DT2 (RT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

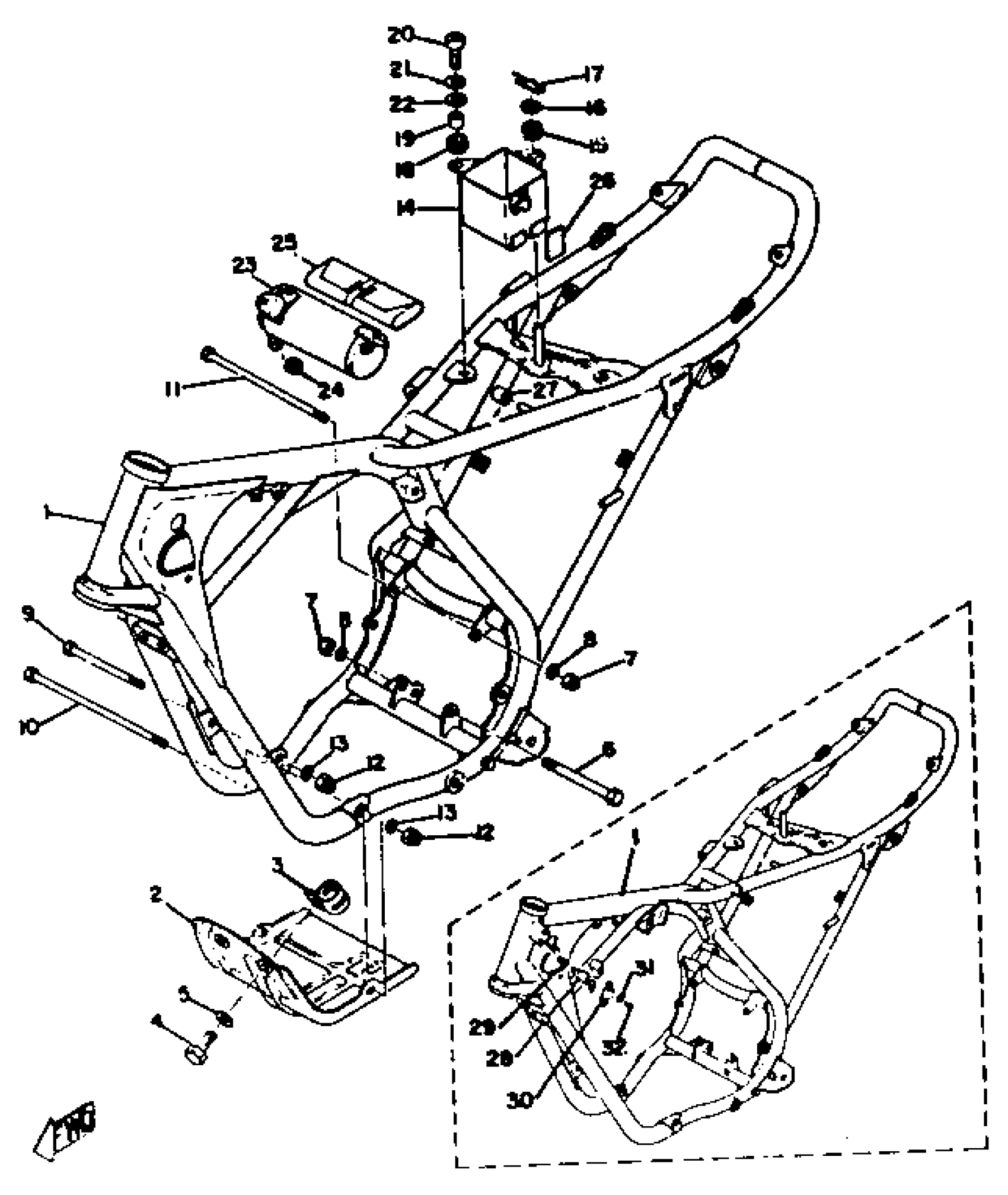

1972 Yamaha DT2 (RT2) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(309-21110-01-33)

1
Out of stock

2

PROTECTOR, ENGINE

(214-21471-01-00)

1
Out of stock

3

BRACKET, PROTC FRT

(214-21433-00-33)

1
Out of stock

4

BOLT (661)

97013-06012-00

1

$4.71

In stock

5

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

6

—

$11.26

In stock

7

NUT, SELF LOCKING

90185-10031-00

1
Out of stock

8

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

9

BOLT, FLANGE

95817-08115-00

1

$6.57

In stock

10

BOLT (214-21842-00)

90109-08040-00

1
Out of stock

11

BOLT, WASHER BASED

90105-10227-00

1
Out of stock

12

NUT, U

95617-08100-00

1

$6.78

In stock

13

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

14

BOX, BATT.

(308-21240-00-33)

1
Out of stock

15

GROMMET 214217470000

90480-14103-00

1

$3.74

In stock

16

WASHER, SPEC''L SHAP

(90209-05025-00)

1
Out of stock

17

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

18

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

19

COLLAR (J10)

90387-06026-00

—

$6.91

In stock

20

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

23

BOX

(214-21170-00-33)

1
Out of stock

24

GROMMET 214217460000

90480-10091-00

—

$6.45

In stock

25

TOOL KIT

(214-W2810-10-00)

1
Out of stock

26

NO LONGER AVAILABLE

214-21268-00-00

1
Out of stock

27

CLAMP, DAMPER

(214-21729-00-00)

1
Out of stock

28

STEERING LOCK ASSY

341-23408-01-00

1
Out of stock

29

SPRING, CONICAL

90502-08005-00

1
Out of stock

30

CAP, HANDLE LOCK

(134-23484-10-00)

1
Out of stock

31

WASHER, WAVE

90206-04003-00

1
Out of stock

32

RIVET 214234830000

90269-04003-00

—

$6.88

In stock
