1970 Yamaha RT1 (RT1M) Tail Lamp Diagram

← All diagrams

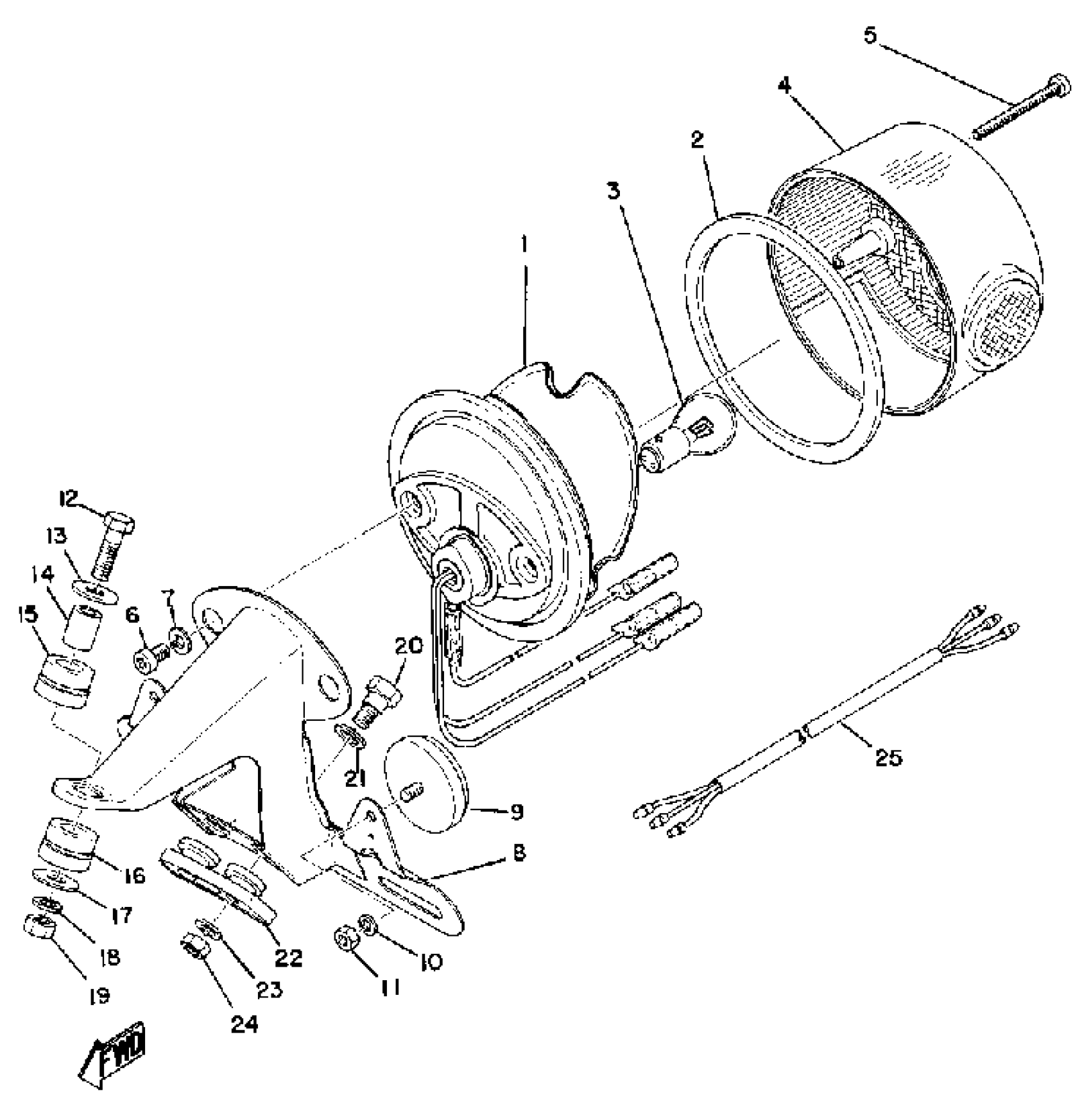

Find the part on the Tail Lamp diagram for your 1970 Yamaha RT1 (RT1M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha RT1 (RT1M) Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

(275-84510-61-00)

1
Out of stock

1

BASE, TAILLIGHT

(275-84511-61-00)

1
Out of stock

2

. GASKET, LENS

275-84523-60-00

1
Out of stock

3

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

1
Out of stock

4

LENS, TAILLIGHT

(275-84521-60-00)

1
Out of stock

5

SCREW, PAN HEAD

98507-04050-00

1

$2.12

In stock

6

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

BRACKET, LICENSE

(444-84751-60-20)

1
Out of stock

9

REFLECTOR, FRONT 1

(278-85111-00-00)

1
Out of stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

12

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

12

BOLT (682)

97095-06040-00

1

$2.36

In stock

13

WASHER

90209-06012-00

1

$4.71

In stock

14

COLLAR (275-84557-00)

90387-07039-00

1
Out of stock

15

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

16

GROMMET (1E2)

90480-14182-00

—

$6.68

In stock

17

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

20

BOLT 168217380000

90109-06017-00

—
Out of stock

21

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

22

DAMPER

214-84553-01-00

—

$6.72

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

25

CORD, TAILLIGHT

(214-84517-00-00)

1
Out of stock

25

CORD, TAILLIGHT

(275-84517-00-00)

1
Out of stock
