1970 Yamaha RT1 (RT1M) Flywheel Magneto Diagram

← All diagrams

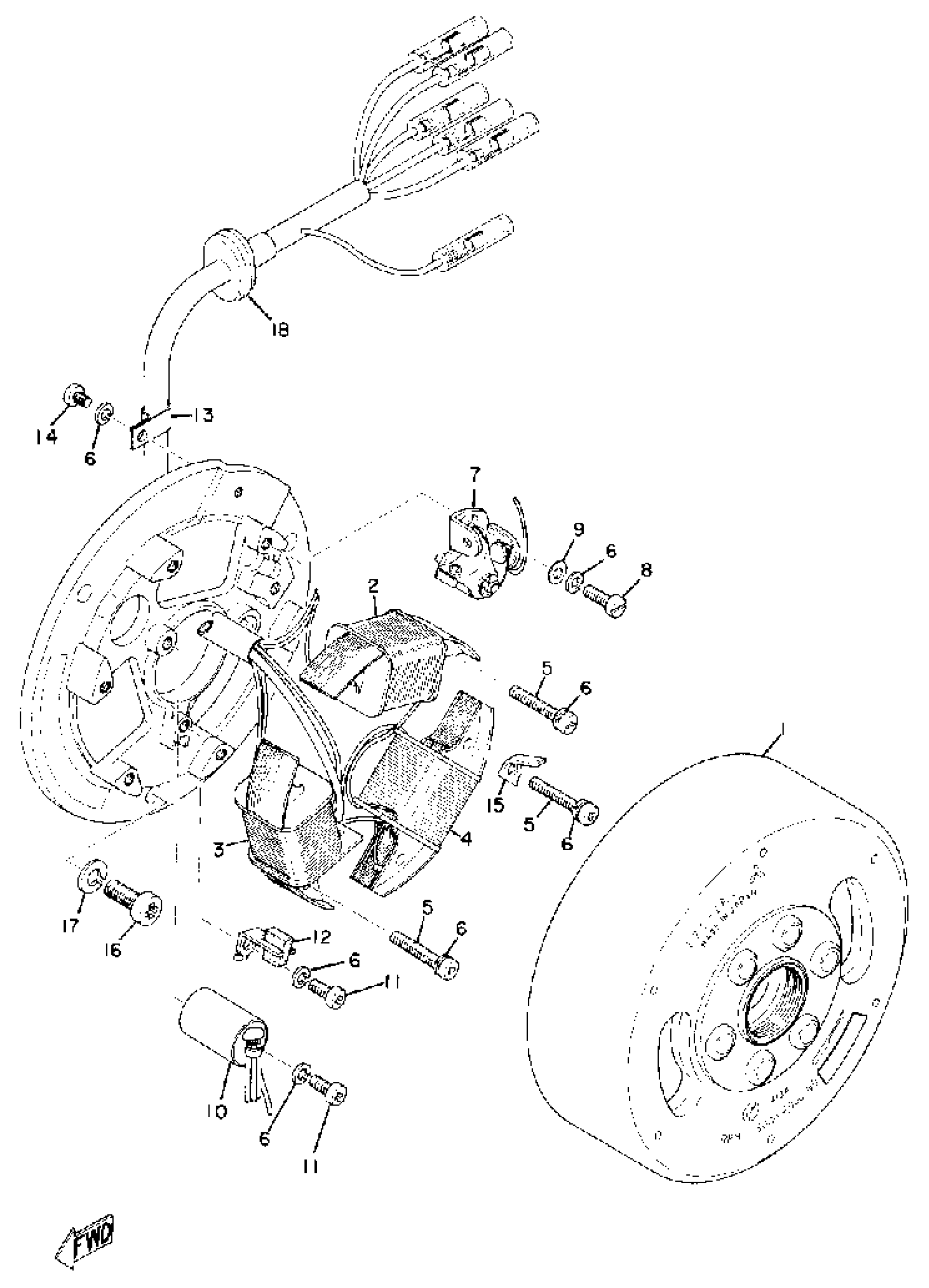

Find the part on the Flywheel Magneto diagram for your 1970 Yamaha RT1 (RT1M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha RT1 (RT1M) Flywheel Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FLYWHL MAGNETO ASSEMBLY

(275-81300-20-00)

1
Out of stock

1

ROTOR ASSEMBLY

(286-81350-20-00)

1
Out of stock

2

. COIL, SOURCE

214-81312-21-00

1
Out of stock

3

COIL, LIGHTING 1

(233-81313-20-00)

1
Out of stock

4

COIL, LIGHTING 2

(275-81314-20-00)

1
Out of stock

5

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

6

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

7

CONTACT BREAKER ASSY

1M1-81321-20-00

1

$104.71

In stock

8

SCREW, PAN HEAD

110-81346-21-00

1

$4.32

In stock

9

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

10

. CONDENCER 2

214-81326-90-00

1
Out of stock

11

SCREW, PAN HEAD

110-81346-21-00

1

$4.32

In stock

12

. LUBRICATOR

116-81331-20-00

1
Out of stock

13

CLAMP, LEAD

104-81328-20-00

1

$6.31

In stock

14

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

15

PLATE, TIMING

(275-81332-20-00)

1
Out of stock

16

SCREW, PAN

98507-06014-00

—

$6.18

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
