1970 Yamaha RT1 (RT1M) Tachometer Gear Diagram

← All diagrams

Find the part on the Tachometer Gear diagram for your 1970 Yamaha RT1 (RT1M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

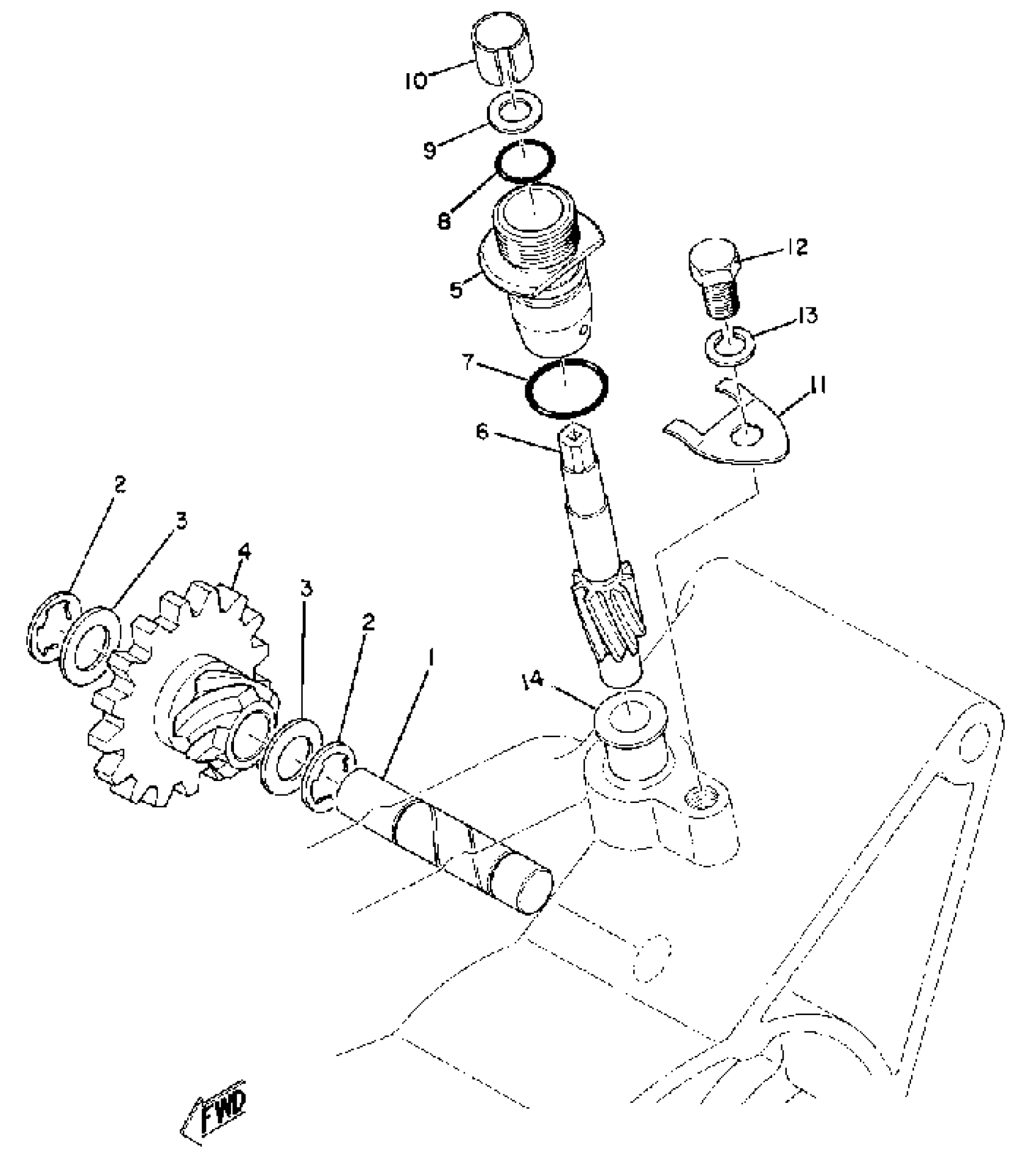

1970 Yamaha RT1 (RT1M) Tachometer Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, DRIVE GEAR

(214-17861-00-00)

1
Out of stock

2

CIRCLIP(J51)

99080-09600-00

1

$1.88

In stock

3

SHIM (10.2-16-1)

214-17837-00-00

1
Out of stock

4

GEAR, DRIVE

(214-17831-01-00)

1
Out of stock

5

HOUSING ASSEMBLY, TACH (214-17811-01)

353-17810-00-00

1
Out of stock

6

GEAR, DRIVEN

214-17841-01-00

1
Out of stock

7

O-RING (137)

93210-13016-00

1

$5.78

In stock

8

O-RING (214)

93210-07100-00

1

$5.89

In stock

9

SHIM (7.5-10.8-0.4)

214-17847-00-00

1
Out of stock

10

BUSH, FORMED (214-17815-00) 001

90383-10005-00

1
Out of stock

11

STOPPER

5U7-17812-00-00

1
Out of stock

12

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

BUSH (214-17843-00)

90381-08002-00

1

$10.54

In stock
