1970 Yamaha RT1 (RT1M) Head Lamp & Speedometer-Tachometer Diagram

← All diagrams

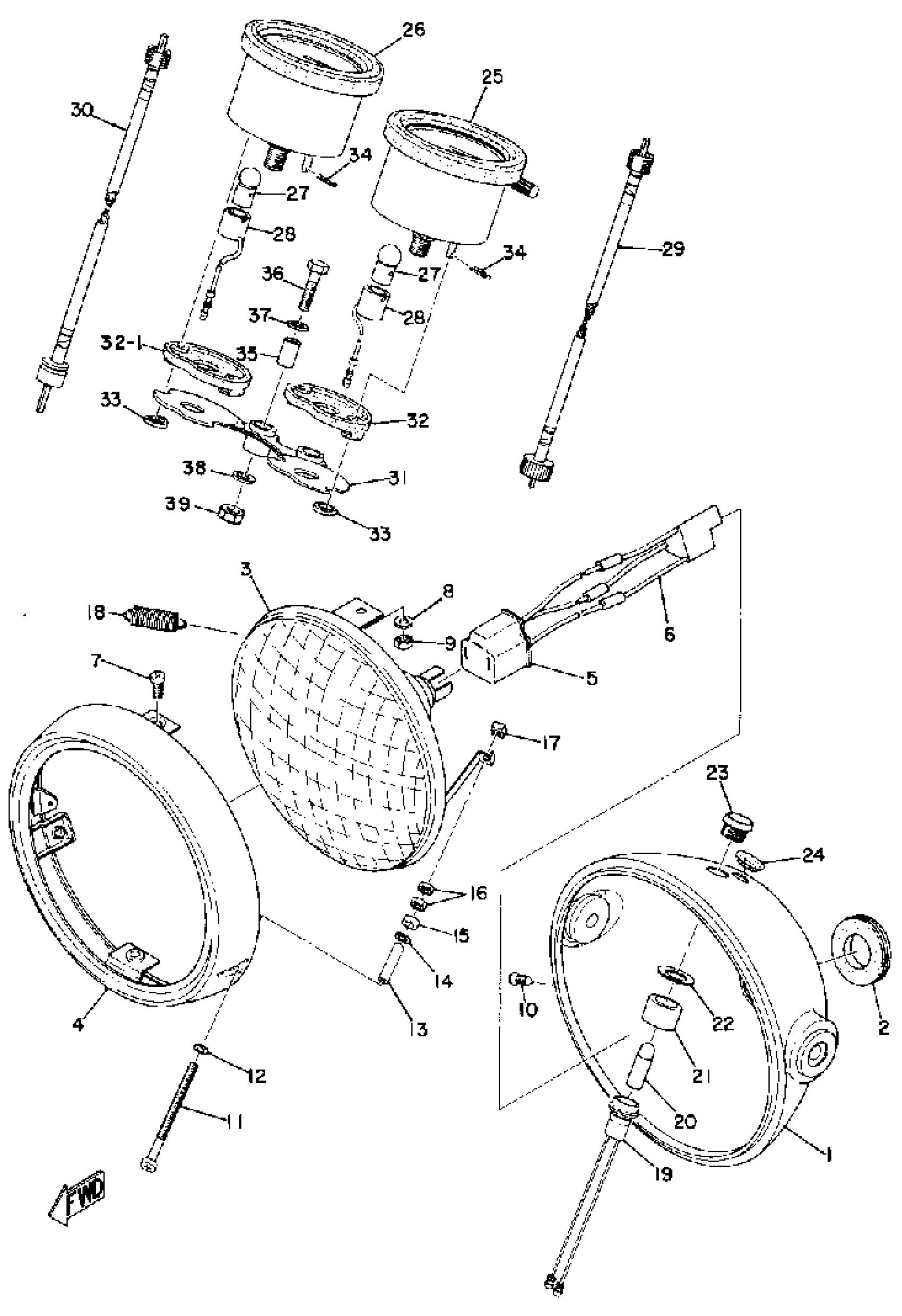

Find the part on the Head Lamp & Speedometer-Tachometer diagram for your 1970 Yamaha RT1 (RT1M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha RT1 (RT1M) Head Lamp & Speedometer-Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY, HEADLIGHT

(214-84130-61-33)

1
Out of stock

1

DAMPER

237-83523-00-00

1

$8.70

In stock

2

PILOT LIGHT ASSEMBLY

214-84101-61-00

1
Out of stock

2

GROMMET, WIREHARNESS

214-84153-60-00

1
Out of stock

2

PILOT LIGHT ASSEMBLY

(233-84102-61-00)

1
Out of stock

3

LENS ASSEMBLY

233-84120-60-00

1
Out of stock

4

RIM, HEADLIGHT

233-84115-60-00

1
Out of stock

5

SOCKET, CORD

261-84312-61-00

1
Out of stock

6

CORD, HEADLIGHT

(214-84159-61-00)

1
Out of stock

7

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

8

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

9

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

10

SCREW, OVAL HEAD (1A0)

90152-05005-00

1

$2.82

In stock

11

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

12

WASHER,SPECIAL

233-84127-60-00

1

$2.78

In stock

13

. COLLAR, SCREW

233-84133-60-00

1
Out of stock

14

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

15

. SPACER

132-84328-60-00

1
Out of stock

16

NUT(6L4)

95380-04700-00

—

$5.62

In stock

17

NUT, ADJUST

198-84334-60-00

—

$6.43

In stock

18

SPRING

(132-84335-60-00)

1
Out of stock

19

. SOCKET CORD ASSEMBLY 2

214-84150-61-00

1
Out of stock

19

SOCKET CORD ASSEMBLY 2

(233-84150-60-00)

1
Out of stock

20

BULB,METER(6V1.5W)

104-83517-10-00

—

$7.43

In stock

21

PILOT LIGHT ASSEMBLY

214-84101-61-00

1
Out of stock

22

WASHER, IN.TOOTH

(92901-12300-00)

1
Out of stock

23

PILOT LIGHT ASSEMBLY

214-84101-61-00

1
Out of stock

23

BODY, PILOT LIGHT

(233-84157-60-00)

1
Out of stock

24

GROMMET

214-84154-60-00

1
Out of stock

25

SPEEDOMETER ASSEMBLY

(233-83570-31-00)

1
Out of stock

26

TACHOMETER ASSEMBLY

(275-83540-01-00)

1
Out of stock

27

BULB,(6V3W)

122-83516-10-00

1
Out of stock

27

BULB,(6V3W)

122-83516-10-00

1
Out of stock

28

SOCKET, METER

(235-83536-21-00)

1
Out of stock

28

SOCKET, METER

(235-83536-21-00)

1
Out of stock

28

SOCKET CORD ASSEMBLY

(275-83520-00-00)

1
Out of stock

29

SPEEDOMETER CABLE ASSY

1JN-83550-02-00

—

$36.69

In stock

30

TACHOMETER CABLE

214-83560-00-00

1
Out of stock

31

BRACKET, METER

(214-83519-00-33)

1
Out of stock

31

BRACKET, METER

(275-83519-00-33)

1
Out of stock

32

DAMPER

214-83523-00-00

1
Out of stock

32

DAMPER

214-83523-00-00

1
Out of stock

33

WASHER 214835240000

90209-05029-00

—

$6.86

In stock

34

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

35

BUSH, SPEC''L RUBBER (214-83528-00)

90385-06001-00

1
Out of stock

36

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

37

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

38

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

39

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
