1970 Yamaha RT1 (RT1M) Tail Lamp Diagram

← All diagrams

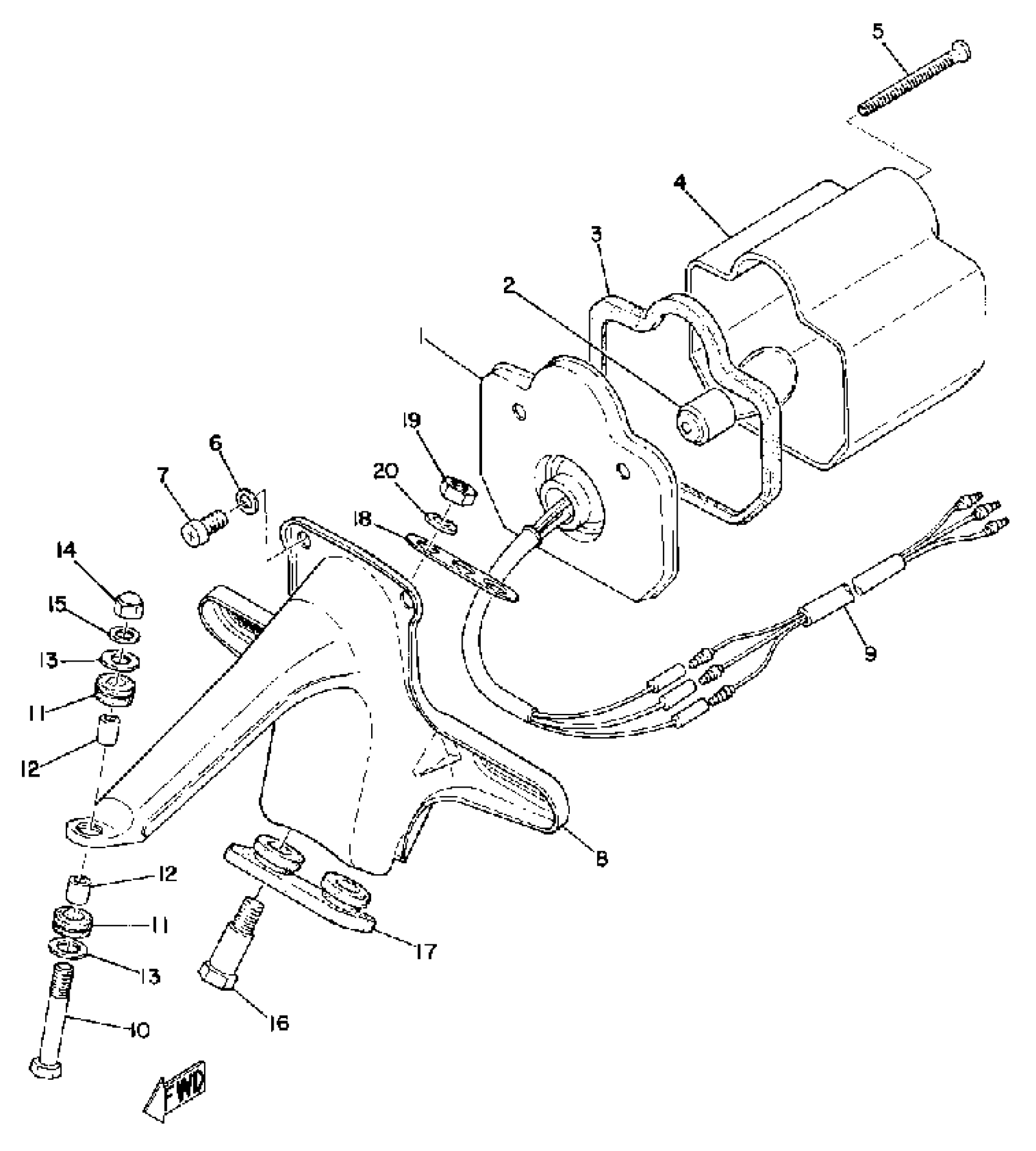

Find the part on the Tail Lamp diagram for your 1970 Yamaha RT1 (RT1M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha RT1 (RT1M) Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

(214-84510-61-00)

1
Out of stock

1

BASE, TAILLIGHT

(214-84511-61-00)

1
Out of stock

2

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

1
Out of stock

3

SEAT, BASE

(168-84712-60-00)

1
Out of stock

4

. LENS, TAILLIGHT

(168-84721-60-00)

1
Out of stock

5

. SCREW, RIM ADJUSTING

3AA-84331-00-00

1
Out of stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

8

BRACKET, LICENCE

(214-84551-61-35)

1
Out of stock

9

CORD, TAILLIGHT

(214-84517-00-00)

1
Out of stock

10

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

11

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

12

COLLAR (J10)

90387-06026-00

1

$6.91

In stock

13

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

14

NUT (J17)

95380-06800-00

1

$6.74

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

BOLT 168217380000

90109-06017-00

—
Out of stock

17

DAMPER

214-84553-01-00

—

$6.72

In stock

18

WASHER, SPEC''L SHAP

90209-10114-00

1
Out of stock

19

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

20

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock
