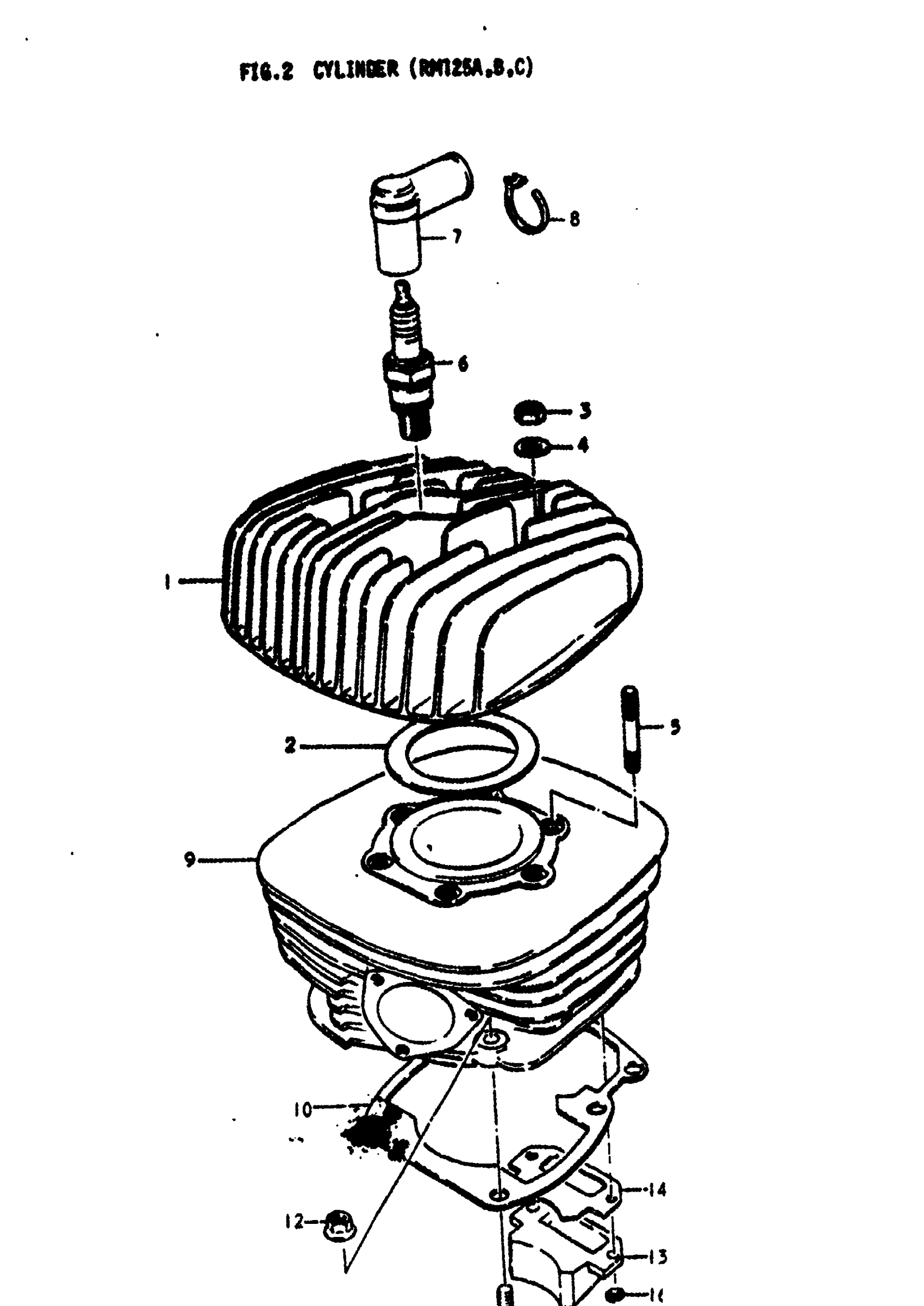

1978 Suzuki RM125 Cylinder (RM125A Diagram

← All diagrams

Find the part on the Cylinder (RM125A diagram for your 1978 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Suzuki RM125 Cylinder (RM125A Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD | A

11111-41300

1
Out of stock

1

CYLINDER HEAD | B; TO 11111-41631 This part replaces 11111-41630.

11111-41631

1
Out of stock

1

CYLINDER HEAD | C

11111-41631

1
Out of stock

2

GASKET, CYLINDER HEAD | A

11141-41300

1
Out of stock

2

GASKET, CYLINDER HEAD | B,C This part replaces 11141-41640.

11141-41300

1
Out of stock

3

NUT, CLUTCH RELEASE NO.1 | A,B,C This part replaces 09140-08005.

09140-08017

6
Out of stock

4

WASHER | A,B,C This part replaces 08322-21088.

08322-01087

6
Out of stock

5

STUD BOLT | A This part replaces 01421-08358.

01421-0835A

6
Out of stock

5

STUD BOLT | B,C

09108-08018

6
Out of stock

6

SPARK PLUG BR9E | A,B,C; NGK, 89EV This part replaces 09482-00097.

09482-00349

1
Out of stock

7

CAP, SPARK PLUG | A,B,C This part replaces 33510-41111.

33510-20A02

1
Out of stock

8

BELT | A,B,C; FROM 09407-00001

09407-09402

1
Out of stock

9

CYLINDER | A

11210-41303

1
Out of stock

9

CYLINDER | B This part replaces 11210-41631.

11210-41310

1
Out of stock

9

CYLINDER | C

11210-41310

1
Out of stock

10

GASKET, CYLINDE | A This part replaces 11241-41300.

11241-41321

1
Out of stock

10

GASKET, CYLINDE | B,C This part replaces 11241-41630.

11241-41321

1
Out of stock

11

BOLT,STUD | A,B,C This part replaces 01421-08258.

01421-0825A

6
Out of stock

12

NUT (CHROME) | A,B,C This part replaces 09159-08019.

08316-10087

6
Out of stock

13

REED VALVE ASSY | A This part replaces 13150-41111.

13150-41113

1
Out of stock

13

NO DESCRIPTION AVAILABLE | B,C This part replaces 13150-41310.

13150-41311

1
Out of stock

14

GASKET,REED VAL | A,B,C This part replaces 13156-41100.

13156-41100-H17

1
Out of stock

15

SCREW | A,B,C This part replaces 02112-06208.

02112-06207

2
Out of stock

16

2

$2.28

In stock
