1978 Suzuki RM125 Crankshaft Diagram

← All diagrams

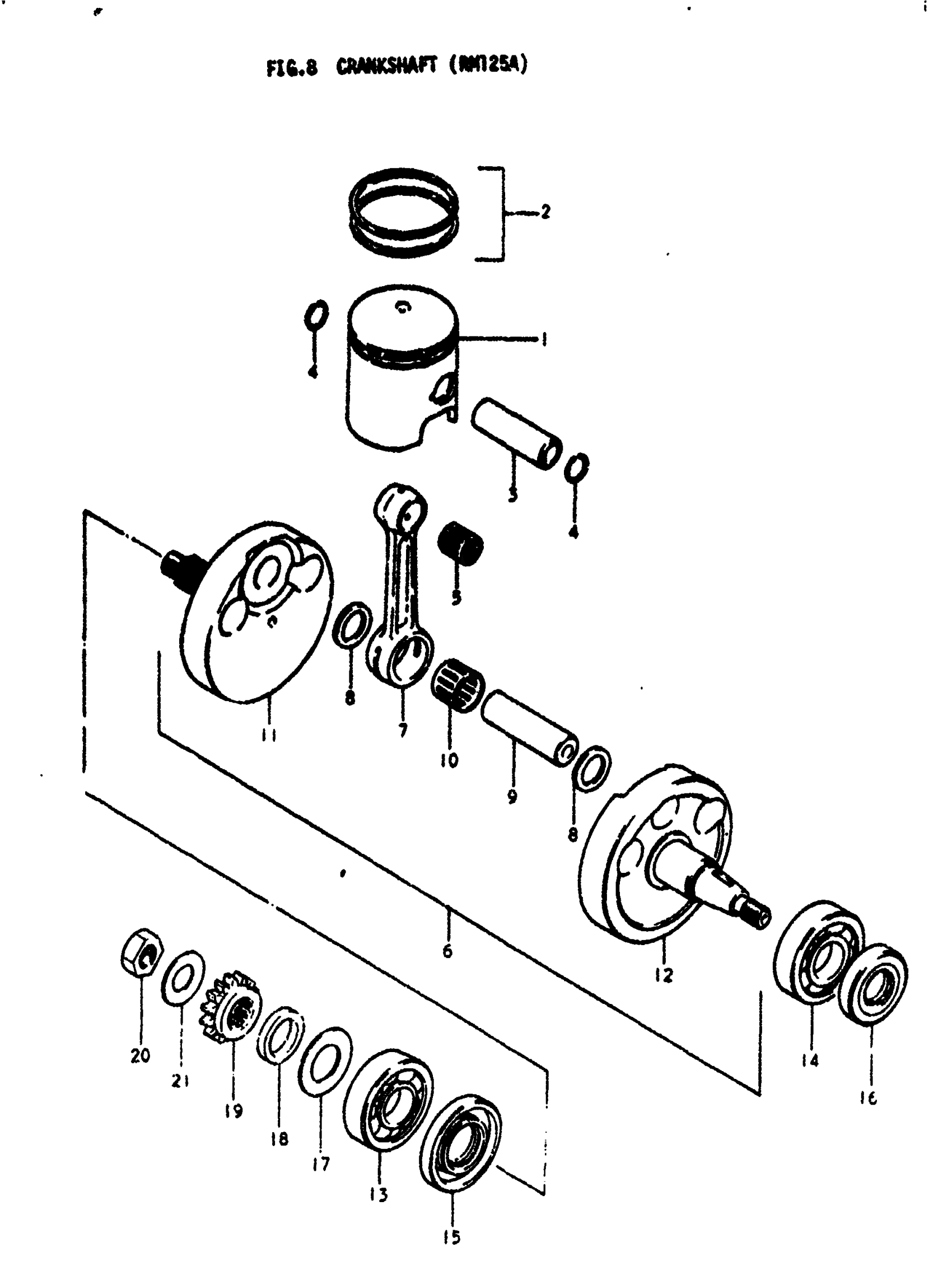

Find the part on the Crankshaft diagram for your 1978 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Suzuki RM125 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON

12110-41300

1
Out of stock

1

NO DESCRIPTION AVAILABLE | 0S:0.25 This part replaces 12110-41750.

12110-41300-025

1
Out of stock

1

NO DESCRIPTION AVAILABLE | 0S:0.5 This part replaces 12110-41740.

12110-41300-050

1
Out of stock

2

RING SET, PISTON

12140-41320

1
Out of stock

2

NO DESCRIPTION AVAILABLE | 0S:0.25 This part replaces 12140-41730.

12140-41320-025

1
Out of stock

2

RING SET, PISTON | 0S:0.5

12140-41720

—
Out of stock

3

PIN, PISTON

12151-08001

1
Out of stock

4

CIRCLIP

09381-16001

2
Out of stock

5

RN 16X21X19.6BR This part replaces 09263-16005.

09263-16015

1
Out of stock

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 12

12200-41301

1
Out of stock

7

ROD, CONNECTING

12161-41301

1
Out of stock

8

THRUST WASHER | 19x32x1

09160-19001

2
Out of stock

9

PIN, CRANK This part replaces 12211-41000.

12211-48001

1
Out of stock

10

BEARING This part replaces 09263-19007.

09263-19009

1
Out of stock

11

CRANKSHAFT, RH

12220-41300

1
Out of stock

12

CRANKSHAFT, LH

12260-41301

1
Out of stock

13

BEARING, RH (22X56X16) | 22x56x16 This part replaces 09262-22012.

09262-22025

1
Out of stock

14

BEARING, LH | 25x52x15 This part replaces 09262-25048.

09262-25070-0A0

1
Out of stock

15

OIL SEAL, RH | 30x56x9

09289-30003

1
Out of stock

16

OIL SEAL, LH | 24.2x44x7 This part replaces 09283-25037.

09283-25066

1
Out of stock

17

WASHER | 22x40x1

08212-22401

1
Out of stock

18

SPACER

09180-22013

1
Out of stock

19

GEAR, PRIMARY DRIVE | NT:17

21111-41300

1
Out of stock

20

NUT

09140-16002

1
Out of stock

21

WASHER

09164-16002

1
Out of stock
