1978 Suzuki RM125 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1978 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

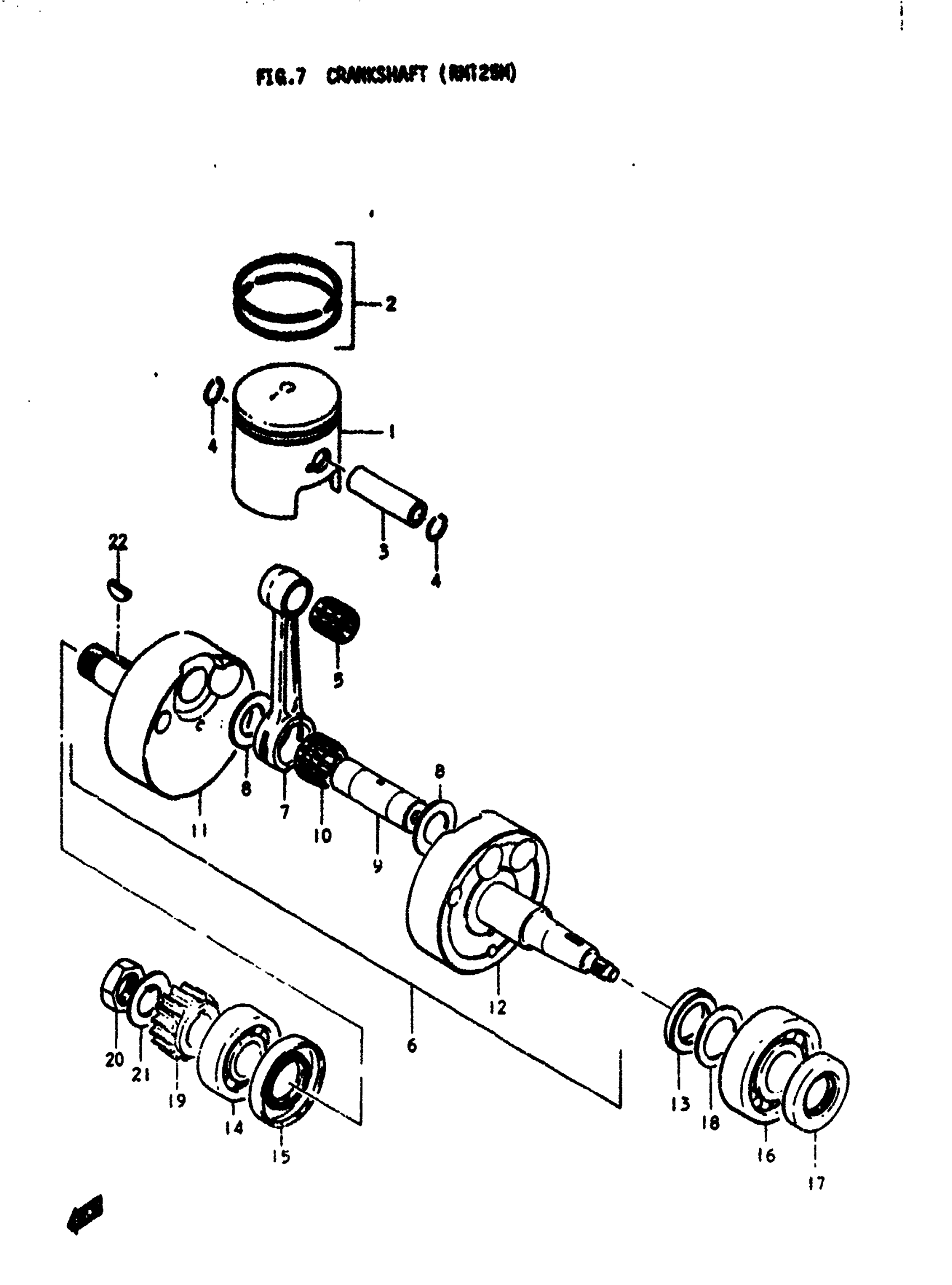

1978 Suzuki RM125 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 12110-41002.

12110-41731

1
Out of stock

1

NO DESCRIPTION AVAILABLE | 0S:0.25 This part replaces 12110-41719.

12110-41731-025

1
Out of stock

1

NO DESCRIPTION AVAILABLE | 06:0.5 This part replaces 12110-41720.

12110-41731-050

1
Out of stock

2

RING SET, PISTO This part replaces 12140-28010.

12140-28021

1
Out of stock

2

NO DESCRIPTION AVAILABLE | 0S:0.25 This part replaces 12140-28760.

12140-28011-025

1
Out of stock

2

RING SET PISTON | 0S:0.5 This part replaces 12140-28710.

12140-28011-050

1
Out of stock

3

PIN This part replaces 12151-28000.

12151-05200

1
Out of stock

4

RING

09381-14001

2
Out of stock

5

ROLLR BRG,14X18 This part replaces 09263-14004.

09263-14022

1
Out of stock

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 12

12200-41001

1
Out of stock

7

CONNECTING ROD This part replaces 12161-12000.

12161-39300

1
Out of stock

8

THRUST WASHER | 19x32x1

09160-19001

2
Out of stock

9

PIN, CRANK This part replaces 12211-41000.

12211-48001

1
Out of stock

10

BEARING This part replaces 09263-19007.

09263-19009

1
Out of stock

11

NO DESCRIPTION AVAILABLE This part replaces 12221-28002.

12221-28003

1
Out of stock

12

NO DESCRIPTION AVAILABLE This part replaces 12261-41000.

12261-41001

1
Out of stock

13

SPACER | 25x36x3

09180-25041

1
Out of stock

14

BEARING, COUNTER SHAFT | 20x52x15 This part replaces 09262-20009.

09262-20073

1
Out of stock

15

OIL SEAL | 26x52x8

09283-26007

1
Out of stock

16

BEARING

09262-25049

1
Out of stock

17

OIL SEAL, LH | 24.2x44x7 This part replaces 09283-25037.

09283-25066

1
Out of stock

18

SHIM | 25x36x0.8 This part replaces 08222-25366.

08221-25363

1
Out of stock

19

GEAR, PRIMARY DRIVE | NT:18

21111-41000

—
Out of stock

20

NUT

09140-18002

1
Out of stock

21

WASHER

09164-18001

1
Out of stock

22

KEY

08341-31059

1
Out of stock
