1978 Suzuki RM125 Crankcase Cover (RM125A Diagram

← All diagrams

Find the part on the Crankcase Cover (RM125A diagram for your 1978 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

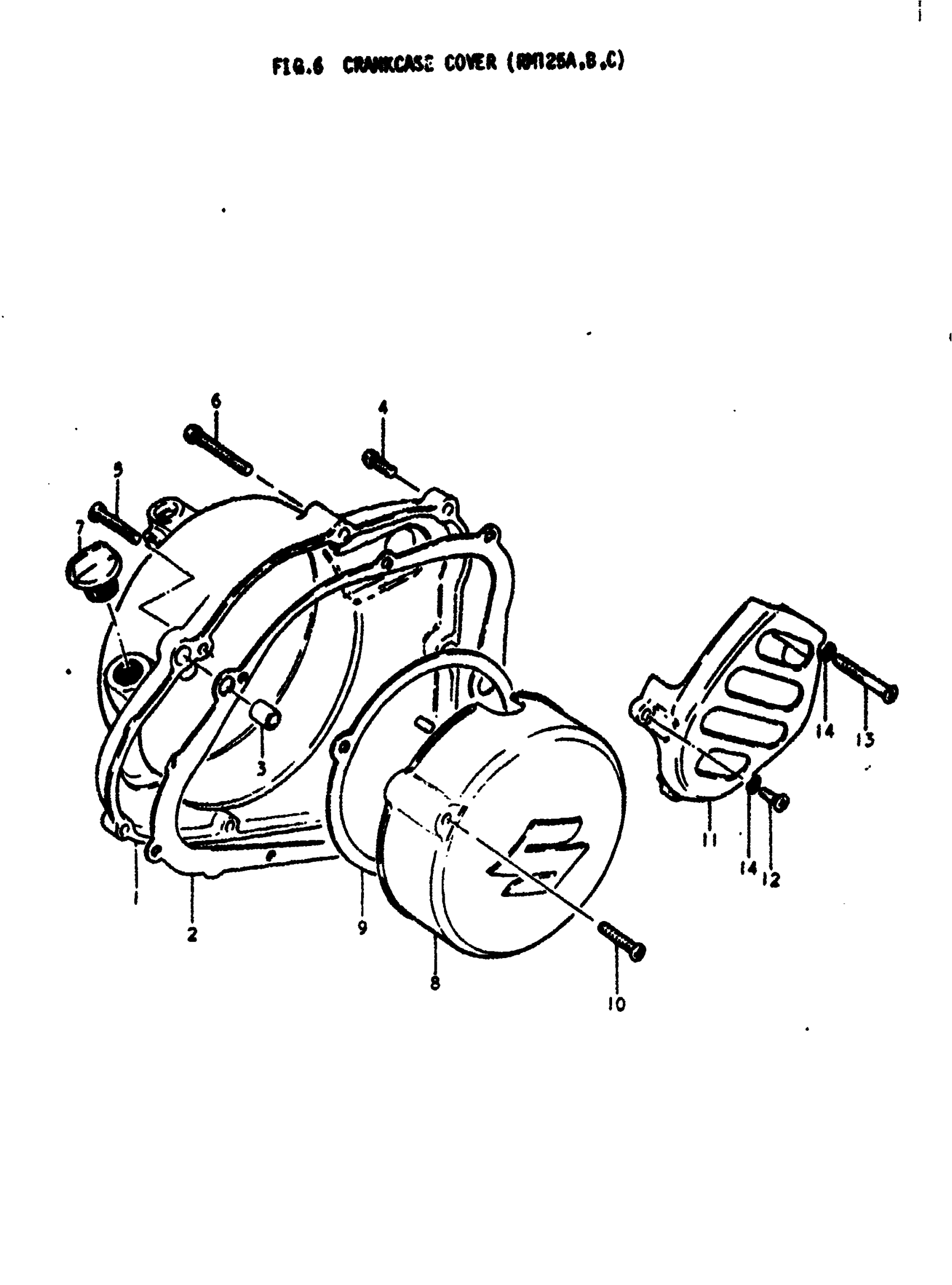

1978 Suzuki RM125 Crankcase Cover (RM125A Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | A,B,C

11341-41300

1
Out of stock

2

GASKET,CLUTCH C | A,B,C This part replaces 11482-41300.

11482-41301

1
Out of stock

3

PIN | A,B,C This part replaces 09206-13001.

04211-13189

2
Out of stock

4

SCREW | A,B,C This part replaces 02112-06258.

02112-06257

5
Out of stock

5

SCREW | A,B,C

02112-06307

1
Out of stock

6

SCREW (6X45) | A,B,C This part replaces 02112-06458.

02112-06457

2
Out of stock

7

PLUG SET | A,B,C This part replaces 09259-20003.

09200-20811

1
Out of stock

8

COVER, MAGNETO | A,B,C

11351-41300

1
Out of stock

9

GASKET,MAGNETO | A,B,C This part replaces 11483-41300.

11483-41312-H17

1
Out of stock

10

SCREW (6X45) | A,B,C This part replaces 02112-06458.

02112-06457

2
Out of stock

11

COVER, MAGNETO SPROCKET | A,B,C

11361-41101

1
Out of stock

12

SCREW | A,B,C This part replaces 02112-06208.

02112-06207

2
Out of stock

13

SCREW | A,B,C

02112-06307

1
Out of stock

14

3

$2.28

In stock
