1978 Suzuki RM125 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1978 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

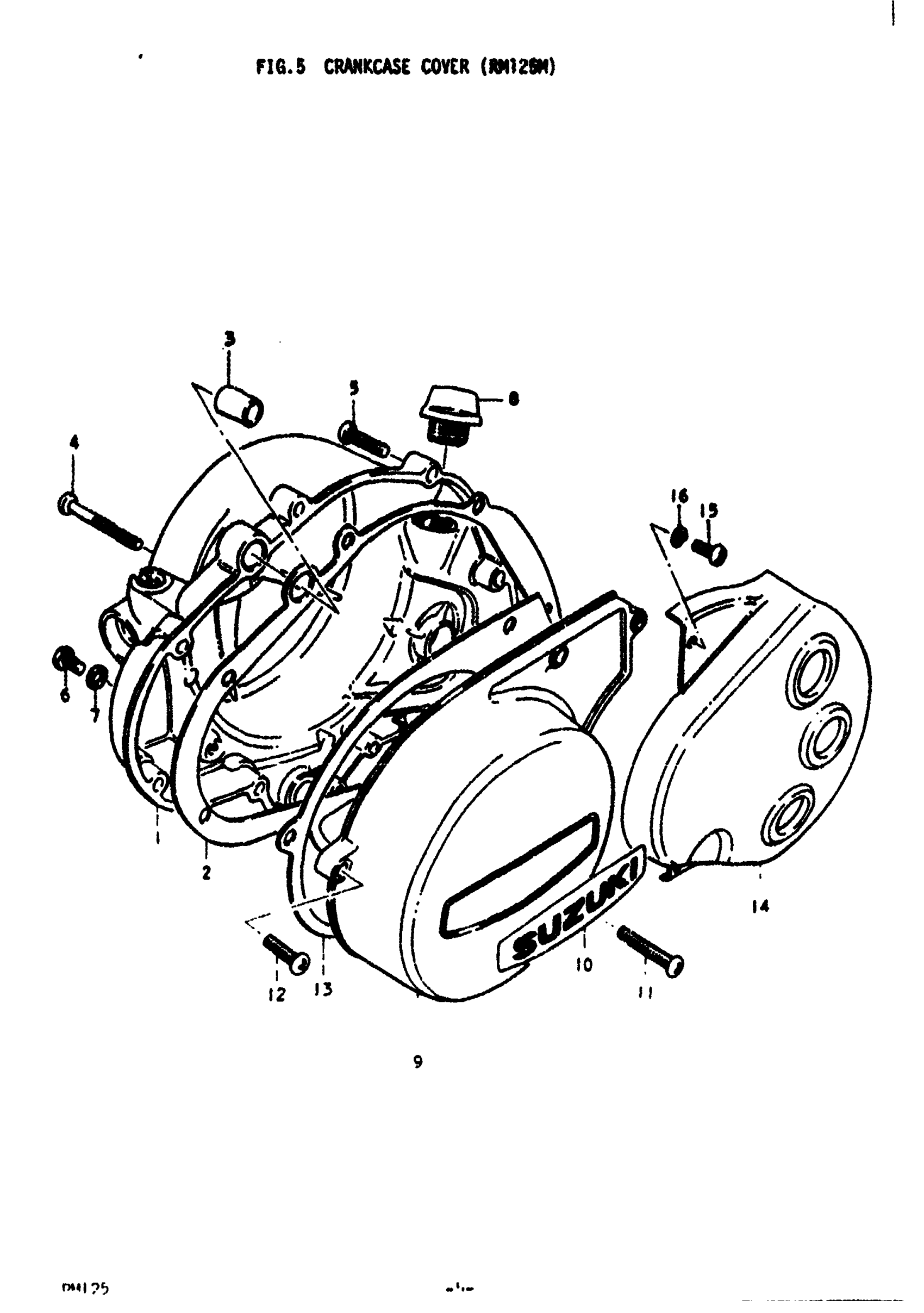

1978 Suzuki RM125 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11300-28860

1
Out of stock

2

GASKET,CLUTCH C This part replaces 11482-28000.

11482-28001

1
Out of stock

3

PIN This part replaces 09206-13001.

04211-13189

2
Out of stock

4

SCREW (6X45) This part replaces 02112-06458.

02112-06457

1
Out of stock

5

SCREW This part replaces 02112-06256.

02112-0625A

7
Out of stock

6

SCREW (6X10) This part replaces 09128-06004.

09128-06044

1
Out of stock

7

GASKET | 6.2x11x1

09168-06001

1
Out of stock

8

PLUG SET This part replaces 09259-20003.

09200-20811

1
Out of stock

9

COVER, MAGNETO

11351-28300

1
Out of stock

10

EMBLEM, MAGNEOT COVER

68233-28000

1
Out of stock

11

SCREW

02112-06307

1
Out of stock

12

SCREW This part replaces 02112-06208.

02112-06207

2
Out of stock

13

GASKET, MAGNETO COVER

11483-28000

1
Out of stock

14

COVER, ENGINE SPROCKET

11360-28300

1
Out of stock

15

SCREW This part replaces 02111-05108.

02112-05107

2
Out of stock

16

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock
← Crankcase (RM125A Crankcase Cover (RM125A →
