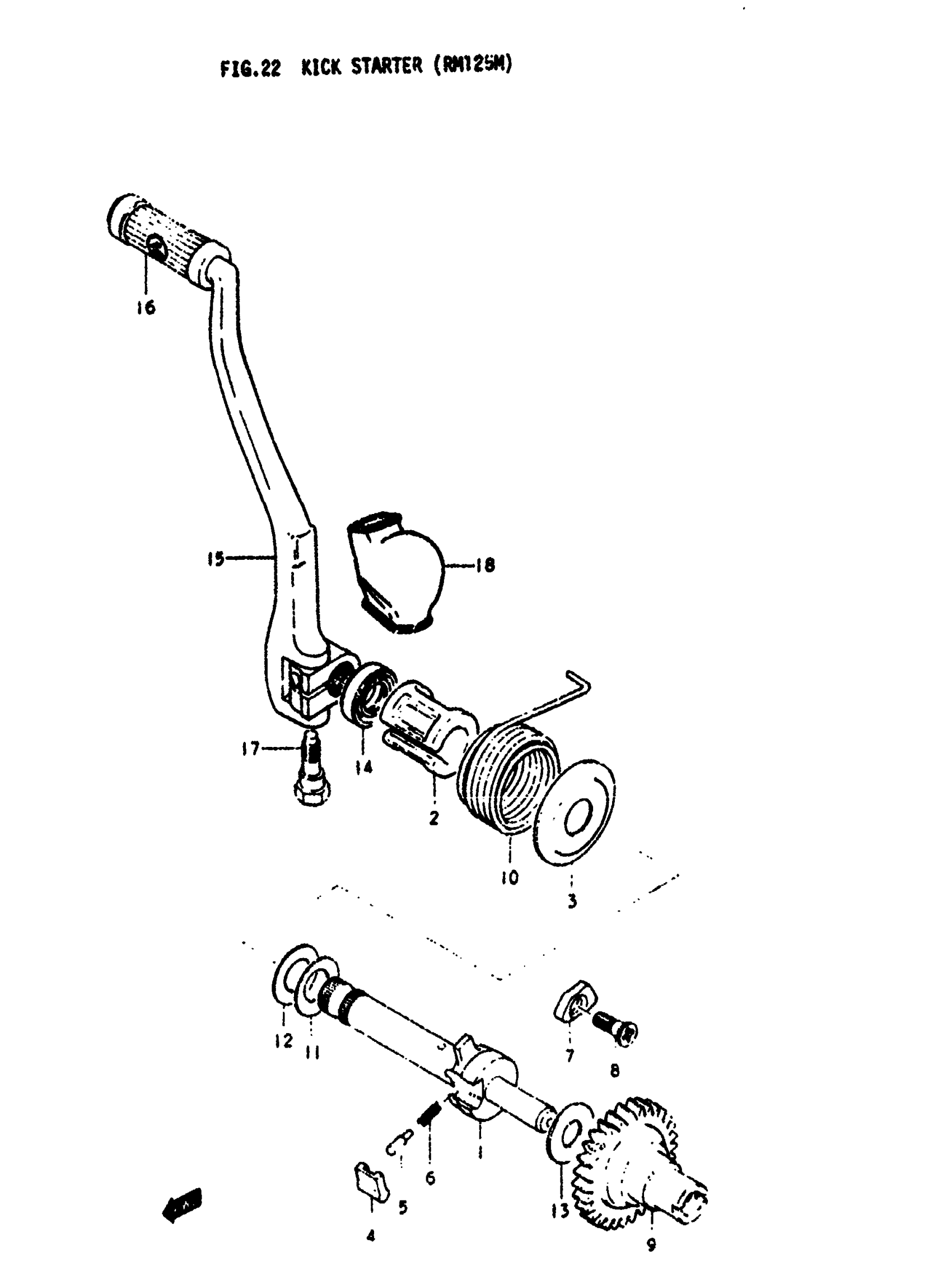

Suzuki RM125 (1978) KICK STARTER (RM125M) Diagram

NO DESCRIPTION AVAILABLE This part replaces 26211-28300.

26211-28301

Unavailable

GUIDE, KICK STARTER

26221-23030

$11.37

HOLDER, SPRING

26222-28300

$7.22

PAWL, KICK STARTER

26231-20000

$7.29

PIN

09209-05011

$2.02

SPRING

09440-04010

$1.52

LIFTER, PAWL

26232-01000

$7.22

SCREW

09139-06002

$2.58

GEAR, KICK STARTER DRIVE | NT:31

26241-28300

Unavailable

GEAR, KICK STARTER DRIVE | NT:31 F.NO.20899~

26241-28302

Unavailable

SPRING

09448-45004

$7.94

WASHER | 16x30.5x0.5

09160-16016

$1.94

WASHER | 16x30.5x0.3

09164-16001

$2.58

WASHER | 12x30x1.5 ~F.NO.20898 (1PC)

08211-12302

$0.82

SEAL,OIL(16X30X | 16x30x0 This part replaces 09285-16002.

09285-16005

$2.44

LEVER ASSY, KICK STARTER | Includes Item(s) 16 - 17

26300-28303

Unavailable

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$2.97

BOLT

09119-08010

Unavailable

COVER,KICK STAR This part replaces 26341-41100.

26341-41102

$6.91
