1978 Suzuki RM125 Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 1978 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

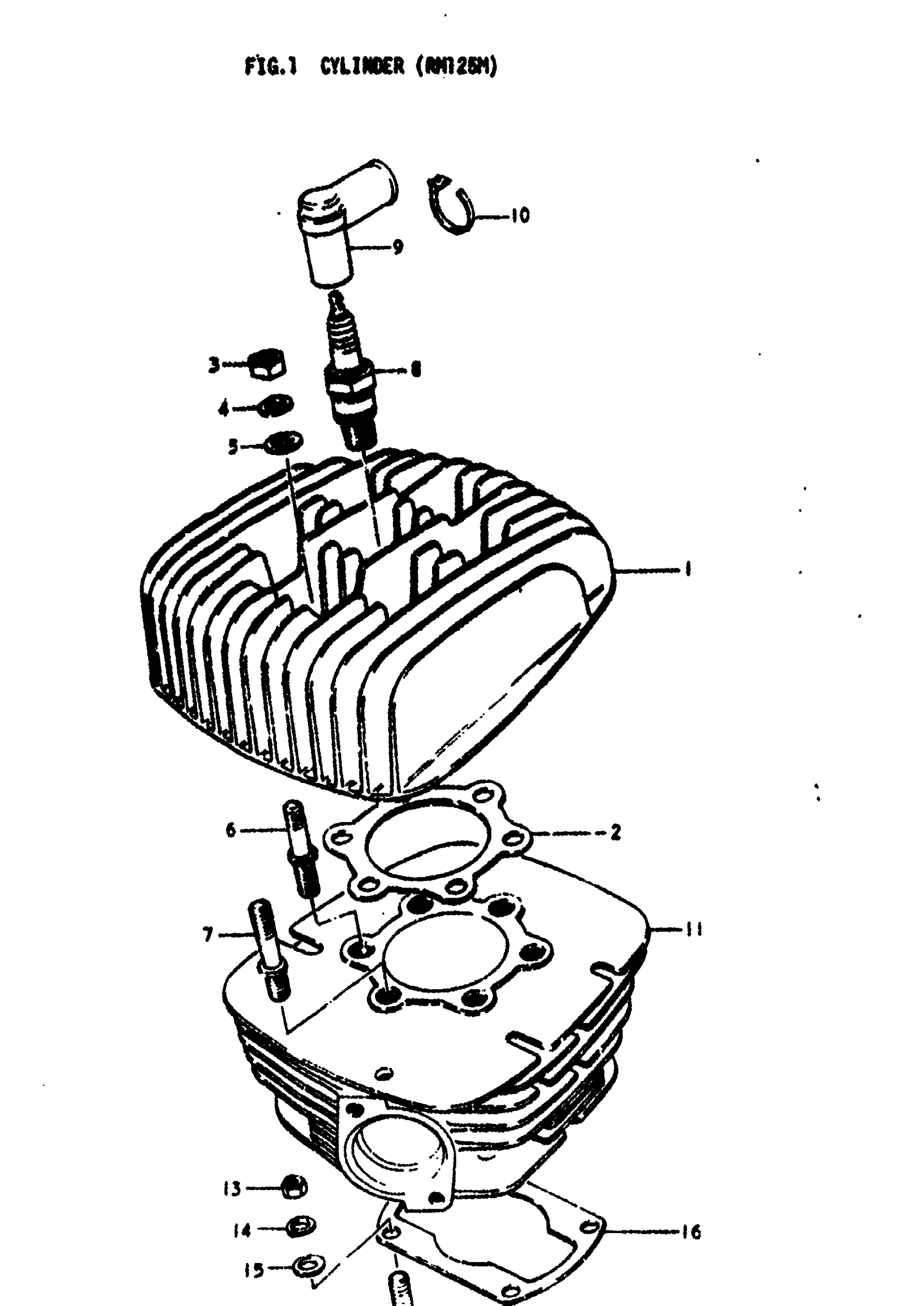

1978 Suzuki RM125 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD

11111-28303

1
Out of stock

2

GASKET CYLINDER This part replaces 11141-28382.

11141-28390

1
Out of stock

3

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

6
Out of stock

4

6

$2.28

In stock

5

WASHER This part replaces 08322-11088.

08322-01087

6
Out of stock

6

STUD BOLT

09108-08018

5
Out of stock

7

STUD BOLT

09108-08034

1
Out of stock

8

SPARK PLUG BR9E | NGK BGEV This part replaces 09482-00097.

09482-00349

1
Out of stock

9

CAP, SPARK PLUG This part replaces 33510-41111.

33510-20A02

1
Out of stock

10

BOLT | FROM 09407-00001

09407-09402

1
Out of stock

11

CYLINDER | TO 11210-41002 USED WITH 13125-28701

11210-41001

—
Out of stock

11

CYLINDER | F.NO 18508~

11210-41002

1
Out of stock

12

BOLT,STUD This part replaces 01421-08258.

01421-0825A

4
Out of stock

13

4

$1.93

In stock

14

4

$2.28

In stock

15

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

16

GASKET,CYLINDER This part replaces 11241-28600.

11241-28601

1
Out of stock
