1976 Yamaha RD200 (RD200C) Turnsignal Diagram

← All diagrams

Find the part on the Turnsignal diagram for your 1976 Yamaha RD200 (RD200C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

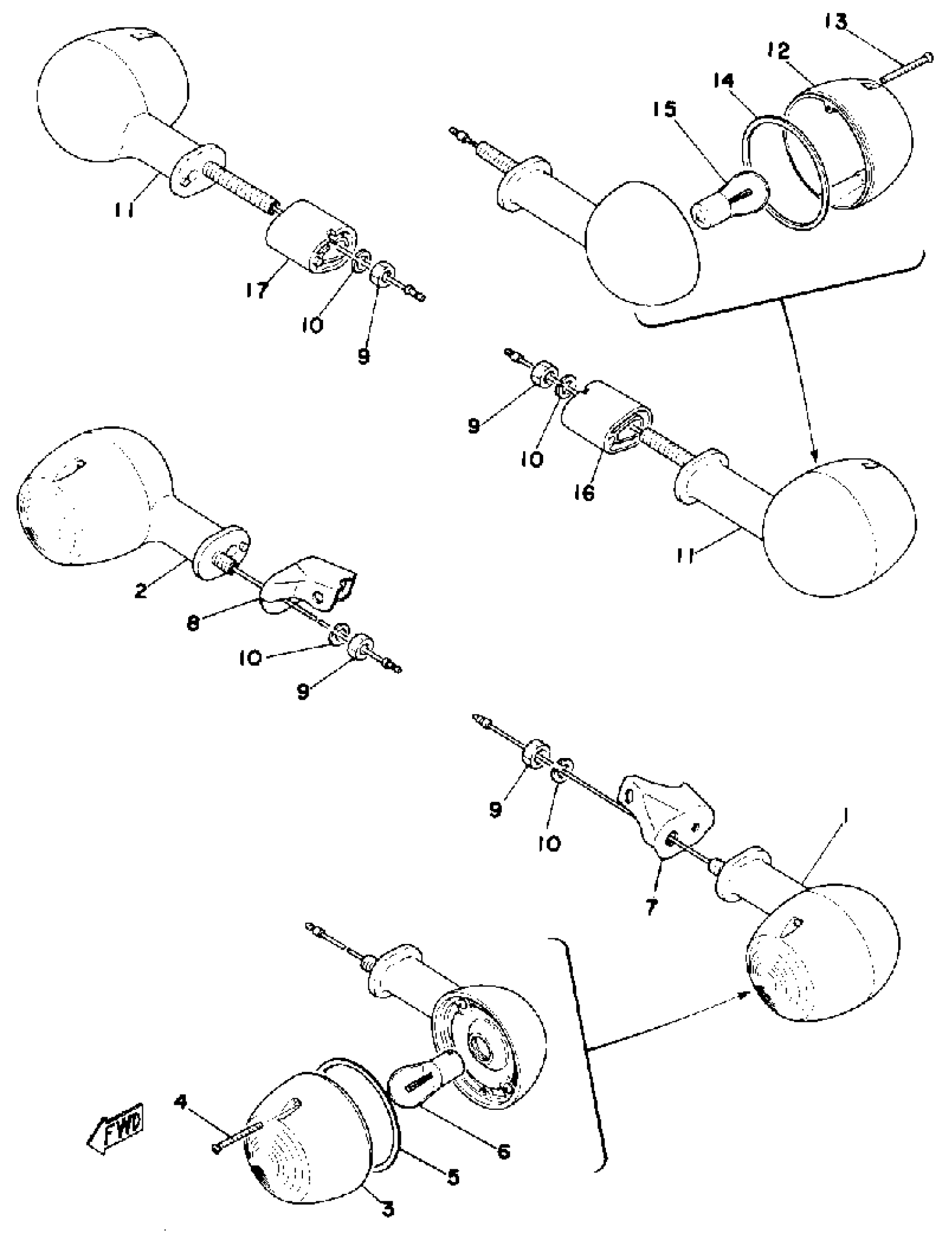

1976 Yamaha RD200 (RD200C) Turnsignal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRT FLSHR LITE ASSEMBLY

278-83310-71-93

1
Out of stock

2

FRT FLSHR LITE ASSEMBLY

278-83310-71-93

1
Out of stock

3

LENS, FLASHER

183-83312-70-00

—
Out of stock

4

SCREW, LENS FITTING (3X32)

183-83333-71-00

1
Out of stock

5

GASKET,FLASHER LANS

183-83313-70-00

—
Out of stock

6

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

7

UNAVAILABLE IN PRICE BOOK

58-18331-80-00

1
Out of stock

8

UNAVAILABLE IN PRICE BOOK

58-18332-80-00

1
Out of stock

9

NUT(6L2)

95333-08600-00

1
Out of stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

11

UNAVAILABLE IN PRICE BOOK

39-78333-07-09

1
Out of stock

12

. LENS, REAR RED FLASHER

211-83332-75-00

1
Out of stock

13

SCREW, LENS FITTING (3X32)

183-83333-71-00

1
Out of stock

14

GASKET,FLASHER LANS

183-83313-70-00

—
Out of stock

15

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

16

COLLAR, FLASHER 1

260-83316-30-00

1
Out of stock

17

COLLAR, FLASHER 2

260-83326-30-00

1
Out of stock
