1976 Yamaha RD200 (RD200C) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1976 Yamaha RD200 (RD200C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

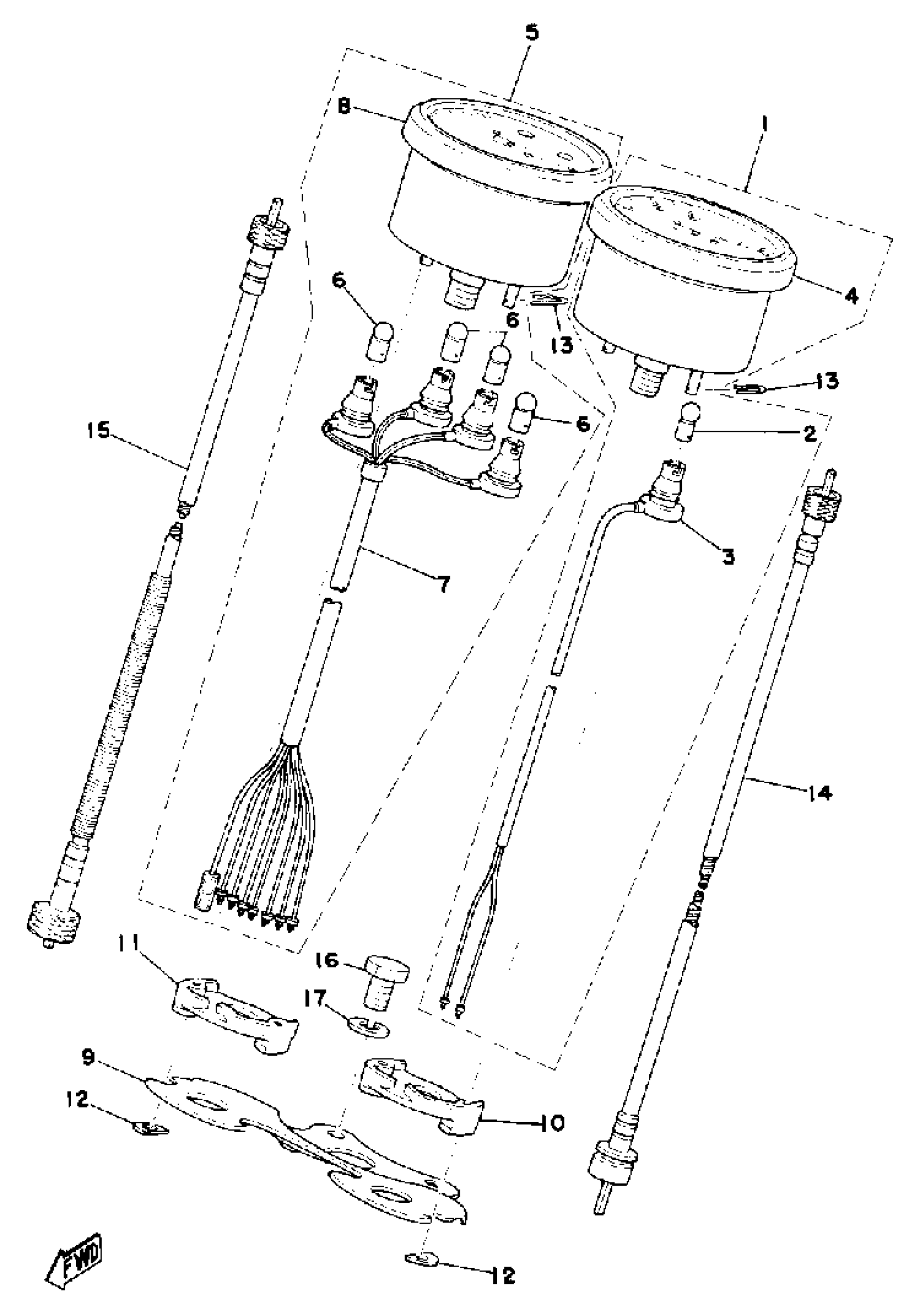

1976 Yamaha RD200 (RD200C) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

39-78351-04-00

1
Out of stock

2

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

3

. UNAVAILABLE IN PRICE BOOK

23-58353-62-10

1
Out of stock

4

. DAMPER

336-83513-00-00

1
Out of stock

5

UNAVAILABLE IN PRICE BOOK

39-78354-00-10

1
Out of stock

6

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

7

. UNAVAILABLE IN PRICE BOOK

33-78352-00-00

1
Out of stock

8

. DAMPER

336-83513-00-00

1
Out of stock

9

UNAVAILABLE IN PRICE BOOK

33-78351-90-03

1
Out of stock

10

DAMPER

214-83523-00-00

1
Out of stock

11

DAMPER

237-83523-00-00

1

$8.70

In stock

12

WASHER 214835240000

90209-05029-00

—

$6.86

In stock

13

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

14

SPEEDOMETER CABLE ASSY

55K-83550-02-00

—

$32.85

In stock

15

TACHOMETER CABLE

396-83560-01-00

1
Out of stock

16

BOLT, HEXAGON

97013-08016-00

—

$1.32

In stock

17

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock
