1976 Yamaha RD200 (RD200C) Generator Diagram

← All diagrams

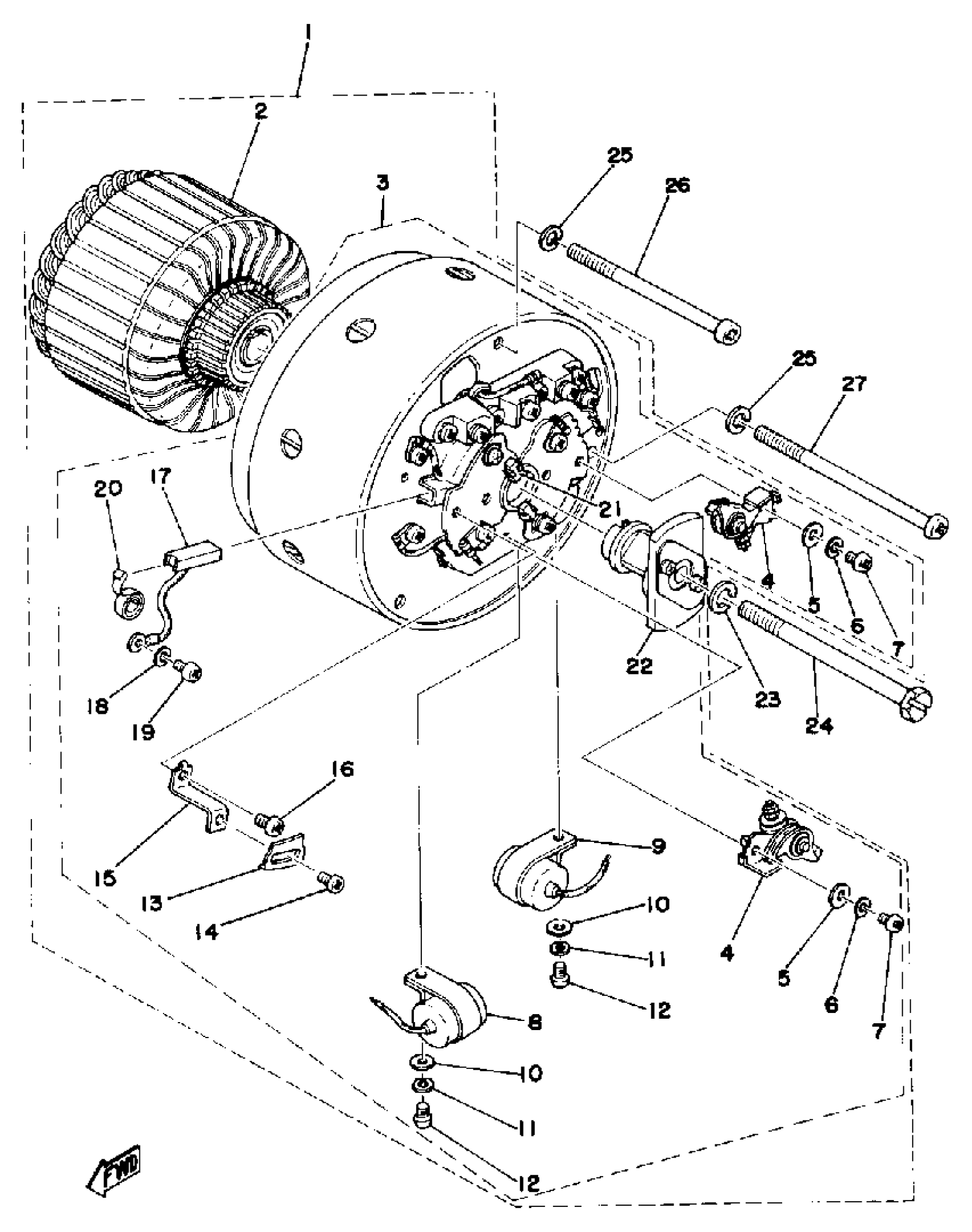

Find the part on the Generator diagram for your 1976 Yamaha RD200 (RD200C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha RD200 (RD200C) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

39-78110-01-10

1
Out of stock

2

. UNAVAILABLE IN PRICE BOOK

39-78115-51-10

1
Out of stock

3

STATOR ASSEMBLY

(397-81110-10-00)

1
Out of stock

4

CONTACT BREAKER ASSY

183-81421-19-00

—
Out of stock

5

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

6

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

7

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

8

CNDSR 2

278-81625-91-00

1
Out of stock

9

CNDSR 2

278-81625-91-00

1
Out of stock

10

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

12

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

13

.. UNAVAILABLE IN PRICE BOOK

13-38113-21-00

1
Out of stock

14

SCREW, PAN HEAD

110-81346-21-00

1

$4.32

In stock

15

.. UNAVAILABLE IN PRICE BOOK

29-98113-31-00

1
Out of stock

16

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

17

BRUSH

101-81111-10-00

1
Out of stock

18

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

19

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

20

. SPRING, BRUSH

141-81113-10-00

1
Out of stock

21

. LUBRICATOR

207-81331-10-00

1
Out of stock

22

GOVERNOR ASSEMBLY

(337-81153-10-00)

1
Out of stock

23

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

24

SCREW, HEXAGON

(90143-07021-00)

1
Out of stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

SCREW, PAN

98507-06085-00

—

$5.17

In stock

27

SCREW, PAN HEAD

98507-06095-00

1
Out of stock
