1976 Yamaha RD200 (RD200C) Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1976 Yamaha RD200 (RD200C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

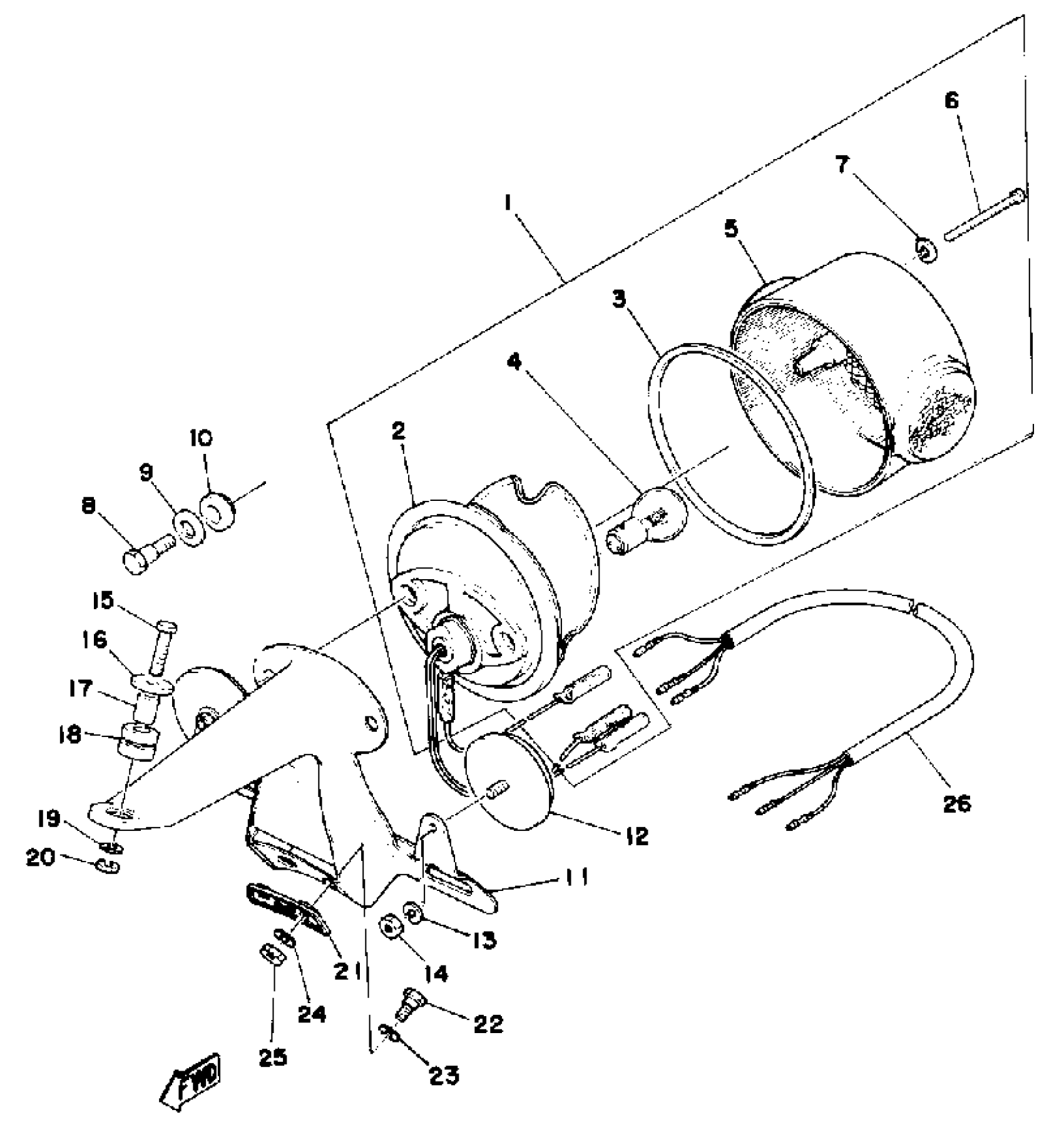

1976 Yamaha RD200 (RD200C) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

371-84710-61-00

1
Out of stock

2

TAILLIGHT UNIT ASSEMBLY

371-84710-61-00

1
Out of stock

3

. GASKET, LENS

275-84523-60-00

1
Out of stock

4

1

$10.02

In stock

5

. LENS, TAIL LIGHT

341-84721-60-00

1
Out of stock

6

SCREW, PANHEAD (4G7)

98580-04055-00

—

$7.02

In stock

7

. WASHER

341-84722-60-00

1
Out of stock

8

UNAVAILABLE IN PRICE BOOK

475-84526-00-00

1
Out of stock

9

WASHER, SPECIAL

2H7-84754-00-00

1
Out of stock

10

. DAMPER

275-84527-60-00

1
Out of stock

11

. BRACKET, LICENSE

341-84751-61-93

1
Out of stock

12

REFLECTOR, REAR 1

449-85131-02-00

1

$25.74

In stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

14

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

15

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

16

WASHER

90209-06012-00

—

$4.71

In stock

17

COLLAR

90387-07020-00

—

$6.17

In stock

18

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

21

UNAVAILABLE IN PRICE BOOK

33-78475-30-00

1
Out of stock

22

BOLT 337847520000

90109-06005-00

—

$6.29

In stock

23

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

26

UNAVAILABLE IN PRICE BOOK

41-28451-70-00

1
Out of stock
