1976 Yamaha RD200 (RD200C) Headlight Diagram

← All diagrams

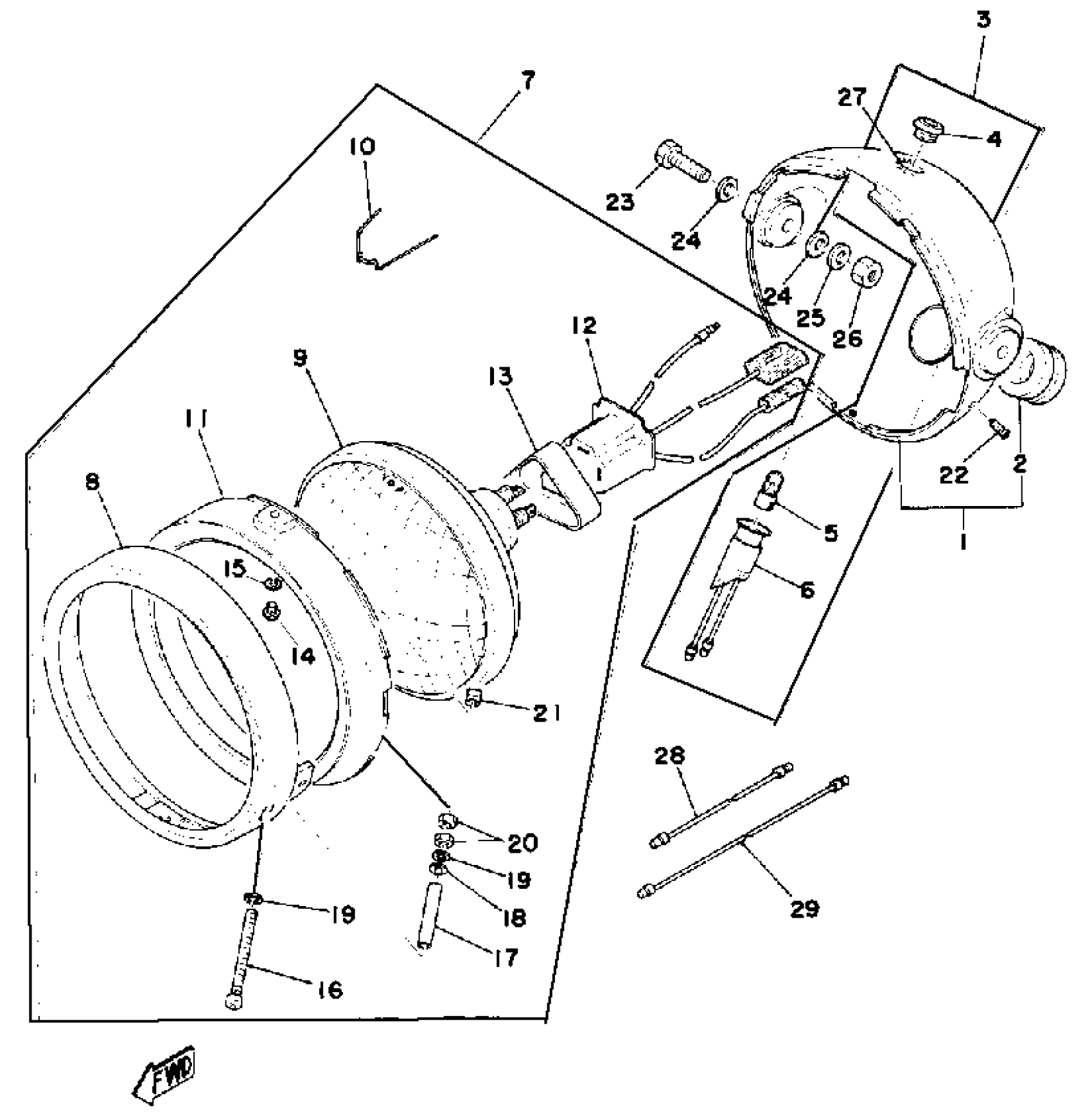

Find the part on the Headlight diagram for your 1976 Yamaha RD200 (RD200C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha RD200 (RD200C) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

39-78433-06-03

1
Out of stock

2

GROMMET, WIREHARNESS

214-84153-60-00

1
Out of stock

3

PILOT LIGHT ASSEMBLY 1

256-84301-61-00

1
Out of stock

4

BODY, PILOT LIGHT

256-84357-61-00

1
Out of stock

5

BULB

256-84347-00-00

1
Out of stock

6

PILOT LIGHT ASSEMBLY 1

256-84301-61-00

1
Out of stock

7

TOOL

UNA-VAILA-BL-EI

1
Out of stock

8

. RIM, HEADLIGHT

498-84115-60-00

1
Out of stock

9

. LENS ASSEMBLY (507-84320-61)

507-84320-62-00

1
Out of stock

10

SPRING, SET

1UY-84124-00-00

1

$6.55

In stock

11

. RING, RETAINING

498-84195-60-00

1
Out of stock

12

SOCKET

371-84312-60-00

—

$26.52

In stock

13

. COVER, SOCKET

341-84397-61-00

1
Out of stock

14

. SCREW

438-84194-60-00

1
Out of stock

15

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

16

SCREW 214841316100

90157-04001-00

—

$5.35

In stock

17

COLLAR, SCREW

438-84133-60-00

1
Out of stock

18

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

19

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

20

NUT(6TA)

95307-04600-00

—

$6.69

In stock

21

NUT, ADJUST

198-84334-60-00

—

$6.43

In stock

22

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

23

BOLT

97014-08040-00

—

$5.26

In stock

24

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

25

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

26

NUT(6L2)

95333-08600-00

—

$3.20

In stock

27

UNAVAILABLE IN PRICE BOOK

39-78358-50-00

1
Out of stock

28

UNAVAILABLE IN PRICE BOOK

33-78434-80-00

1
Out of stock

29

UNAVAILABLE IN PRICE BOOK

33-78434-90-00

1
Out of stock
