1976 Yamaha RD200 (RD200C) Fender Diagram

← All diagrams

Find the part on the Fender diagram for your 1976 Yamaha RD200 (RD200C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

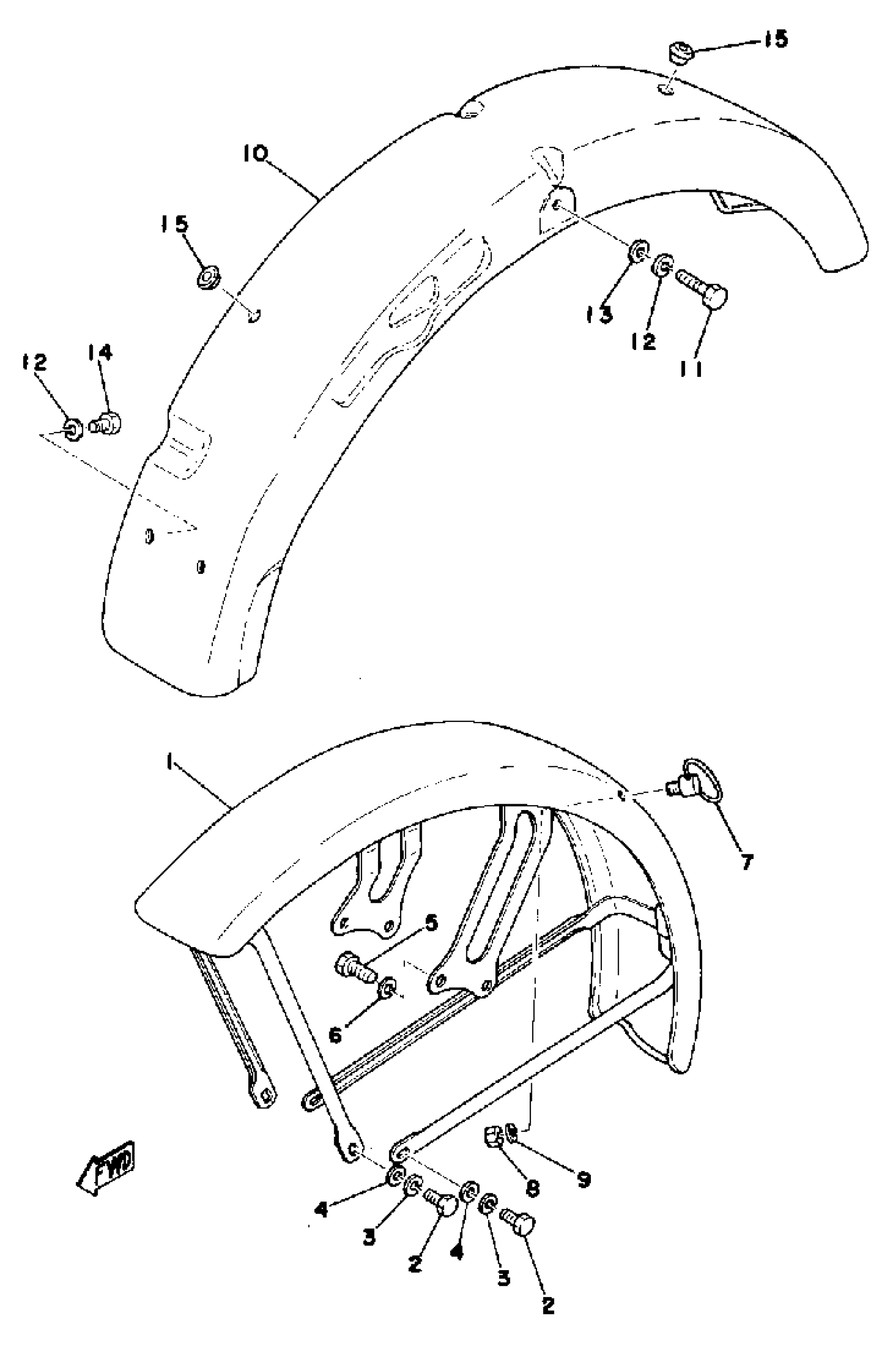

1976 Yamaha RD200 (RD200C) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

40-42151-00-29

1
Out of stock

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

5

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

HOLDER, CABLE

(174-21518-00-00)

1
Out of stock

8

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

UNAVAILABLE IN PRICE BOOK

33-72161-00-09

1
Out of stock

11

BOLT, HEXAGON

97013-06050-00

1

$1.54

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

14

BOLT (661)

97013-06012-00

1

$4.71

In stock

15

GROMMET 152845180000

90480-12013-00

1
Out of stock
