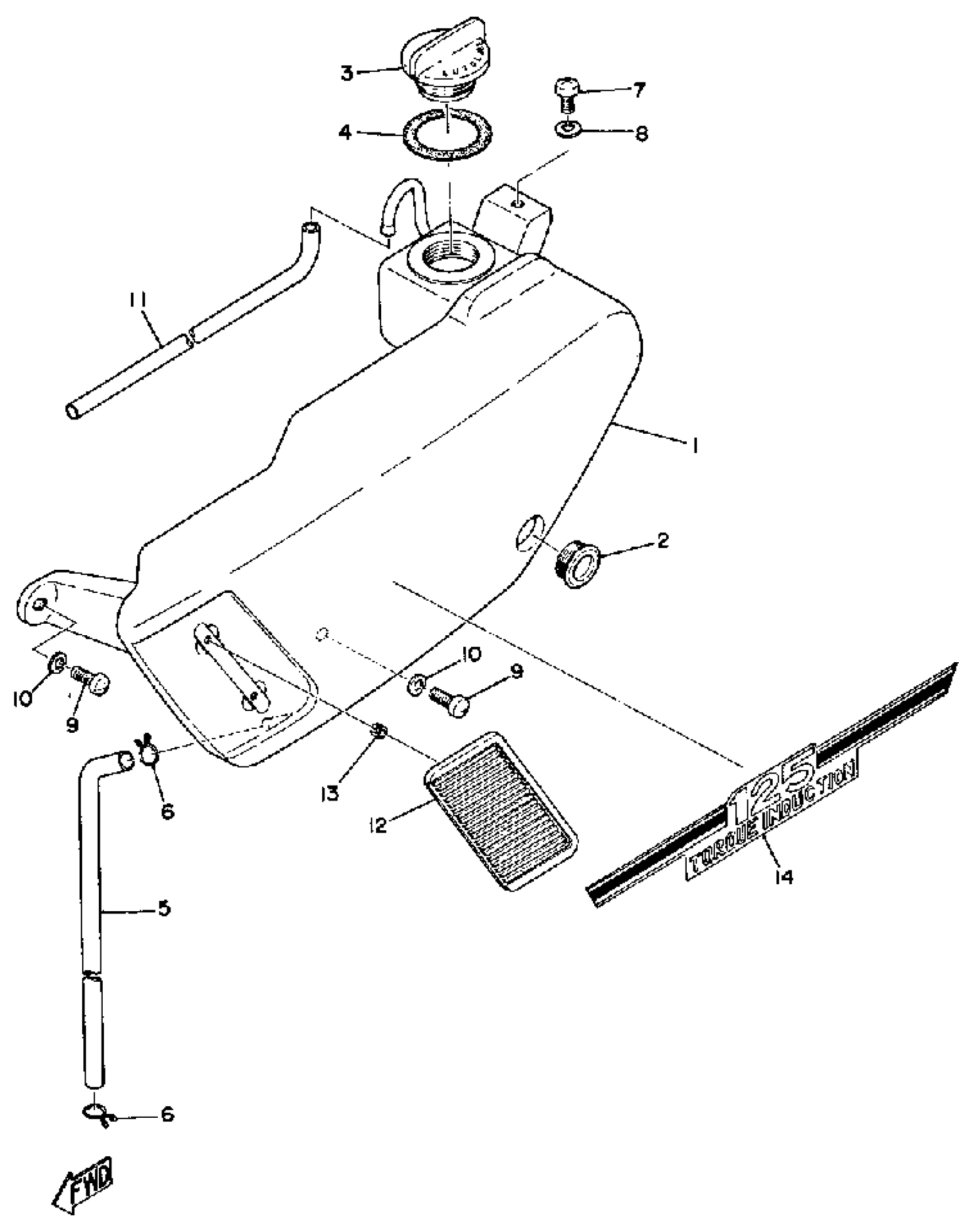

Yamaha RD125B (RD125) 1975 OIL TANK Diagram

#

Description
Price

1

OIL TANK ASSEMBLY

(396-21705-01-A9)

Unavailable

2

. GAUGE, LEVEL

360-21761-00-00

Unavailable

3

BODY, OIL TANK CAP

1A0-21771-00-00

$29.13

4

GASKET 214217720000

90430-29114-00

$5.79

5

PIPE, OIL

(307-24319-00-00)

Unavailable

6

CLIP 101235600

90467-08003-00

$5.88

7

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

8

WASHER, SPRING

92995-06100-00

$2.95

9

SCREW, PAN

98507-06014-00

$5.76

10

WASHER, SPRING

92995-06100-00

$2.95

11

HOSE (L1500)

90445-084J0-00

$15.31

12

EMBLEM 1

(396-21781-01-00)

Unavailable

13

NUT, SPRING

90183-03006-00

Unavailable

14

EMBLEM 3

(466-21783-20-00)

Unavailable
