1975 Yamaha RD200 (RD200B) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1975 Yamaha RD200 (RD200B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

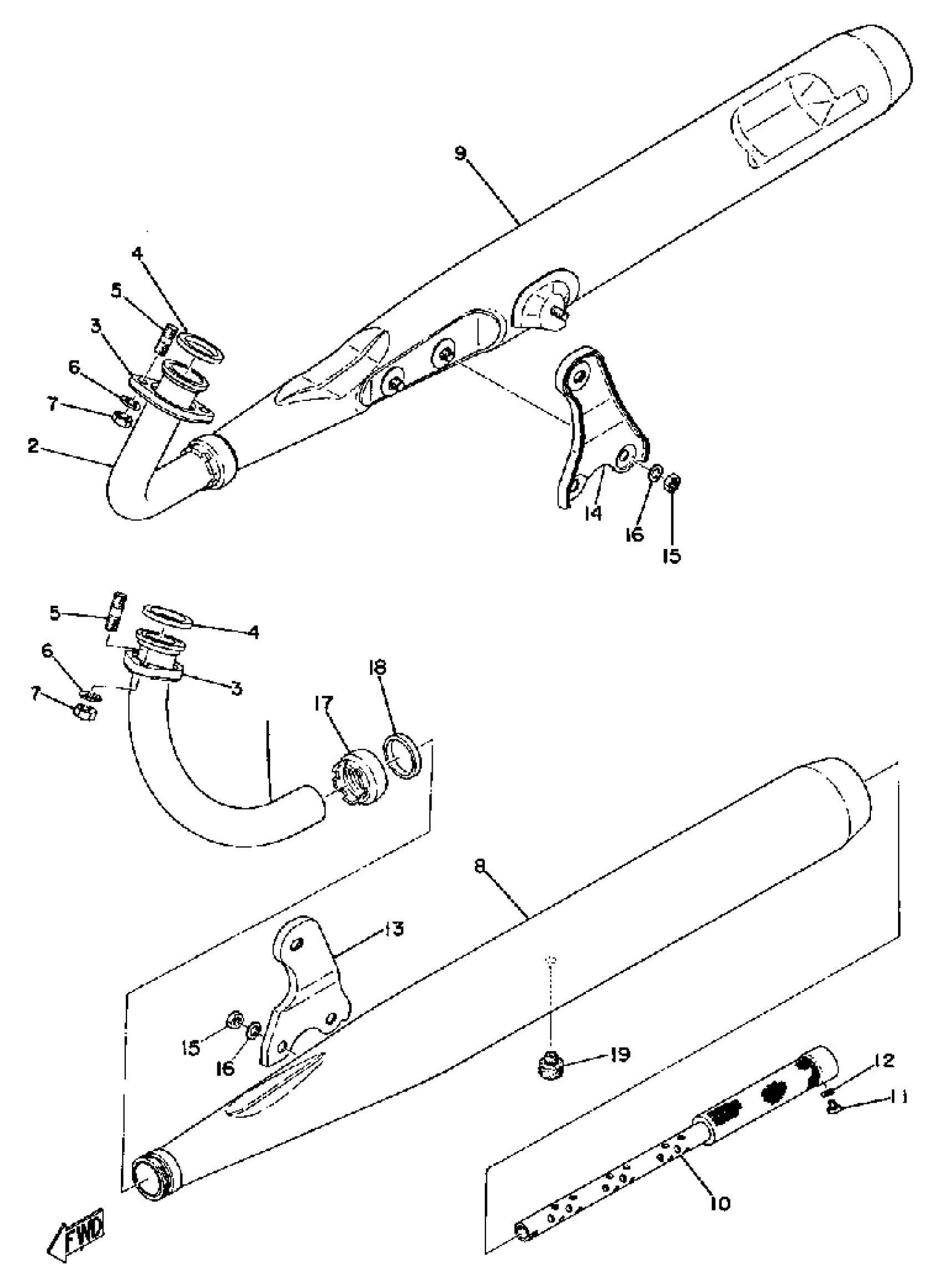

1975 Yamaha RD200 (RD200B) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST L

(396-14611-00-00)

1
Out of stock

2

PIPE, EXHAUST R

(396-14621-00-00)

1
Out of stock

3

NUT, RING

(307-14612-00-00)

1
Out of stock

4

GASKET, EXHAUST PIPE

3MT-14613-00-00

1
Out of stock

5

BOLT, STUD (17W)

90116-08408-00

—

$15.12

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

NUT(6L2)

95333-08600-00

1

$3.20

In stock

8

MUFFLER ASSEMBLY L

(466-14710-00-00)

1
Out of stock

9

MUFFLER ASSEMBLY R

(466-14720-00-00)

1
Out of stock

10

SILENCER, EXHAUST

(307-14753-00-00)

1
Out of stock

11

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

STAY, MUFFLER 1

(396-14771-00-00)

1
Out of stock

14

STAY, MUFFLER 2

(396-14781-00-00)

1
Out of stock

15

NUT(6L2)

95333-08600-00

1

$3.20

In stock

16

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

17

NUT, MUFFLER JOINT

132-14713-00-00

1
Out of stock

18

GASKET, MUFFLER

3NA-14714-01-00

—

$21.72

In stock

19

STOPPER

1M3-27114-00-00

—

$8.09

In stock
