1975 Yamaha RD125 (RD125B) Kick Starter Diagram

← All diagrams

Find the part on the Kick Starter diagram for your 1975 Yamaha RD125 (RD125B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

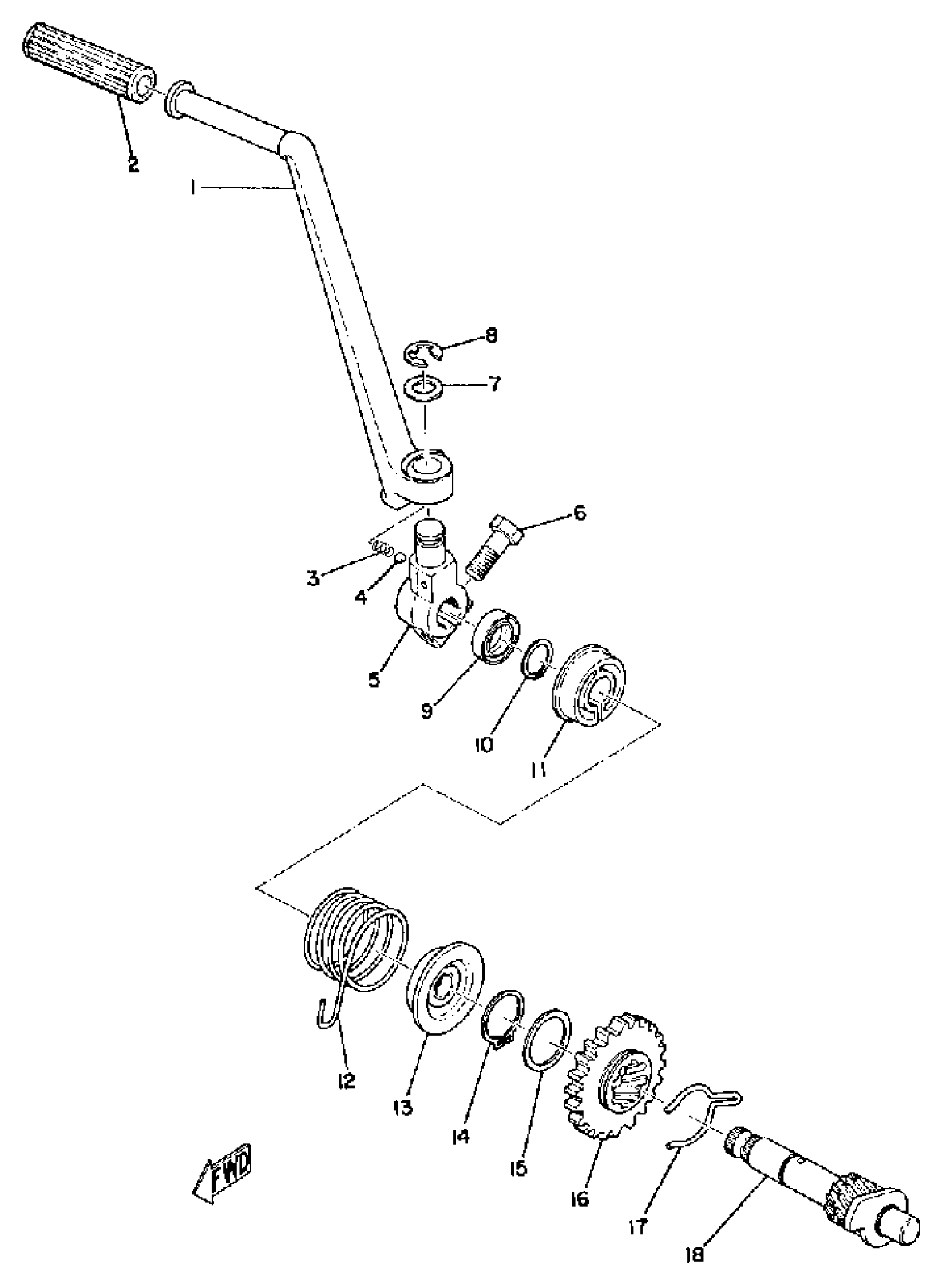

1975 Yamaha RD125 (RD125B) Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANK,KICK

278-15611-00-00

1
Out of stock

2

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

3

SPRING COMPRESSION278156220000

90501-12081-00

1
Out of stock

4

BALL (12R)

93507-32031-00

1
Out of stock

5

BOSS, KICK CRANK

337-15621-01-00

1
Out of stock

6

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

7

WASHER PLATE 278156130000

90201-15234-00

1

$6.78

In stock

8

CIRCLIP

99006-10600-00

1

$6.91

In stock

9

OIL SEAL (15X26X6-102)

93109-15001-00

1

$7.42

In stock

10

CIRCLIP(1AR)

99009-15400-00

1

$5.10

In stock

11

COVER, KICK SPRING

132-15676-01-00

—

$9.02

In stock

12

SPRING TORSION 304156650000

90508-26136-00

—
Out of stock

13

GUIDE, KICK SPRING

132-15664-01-00

1
Out of stock

14

CIRCLIP (256)

93410-25017-00

1
Out of stock

15

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

16

GEAR, KICK

180-15641-00-00

1
Out of stock

17

CLIP 315156870000

90468-26048-00

—
Out of stock

18

KICK AXLE ASSEMBLY

180-15660-01-00

1
Out of stock
