1975 Yamaha RD125 (RD125B) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1975 Yamaha RD125 (RD125B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

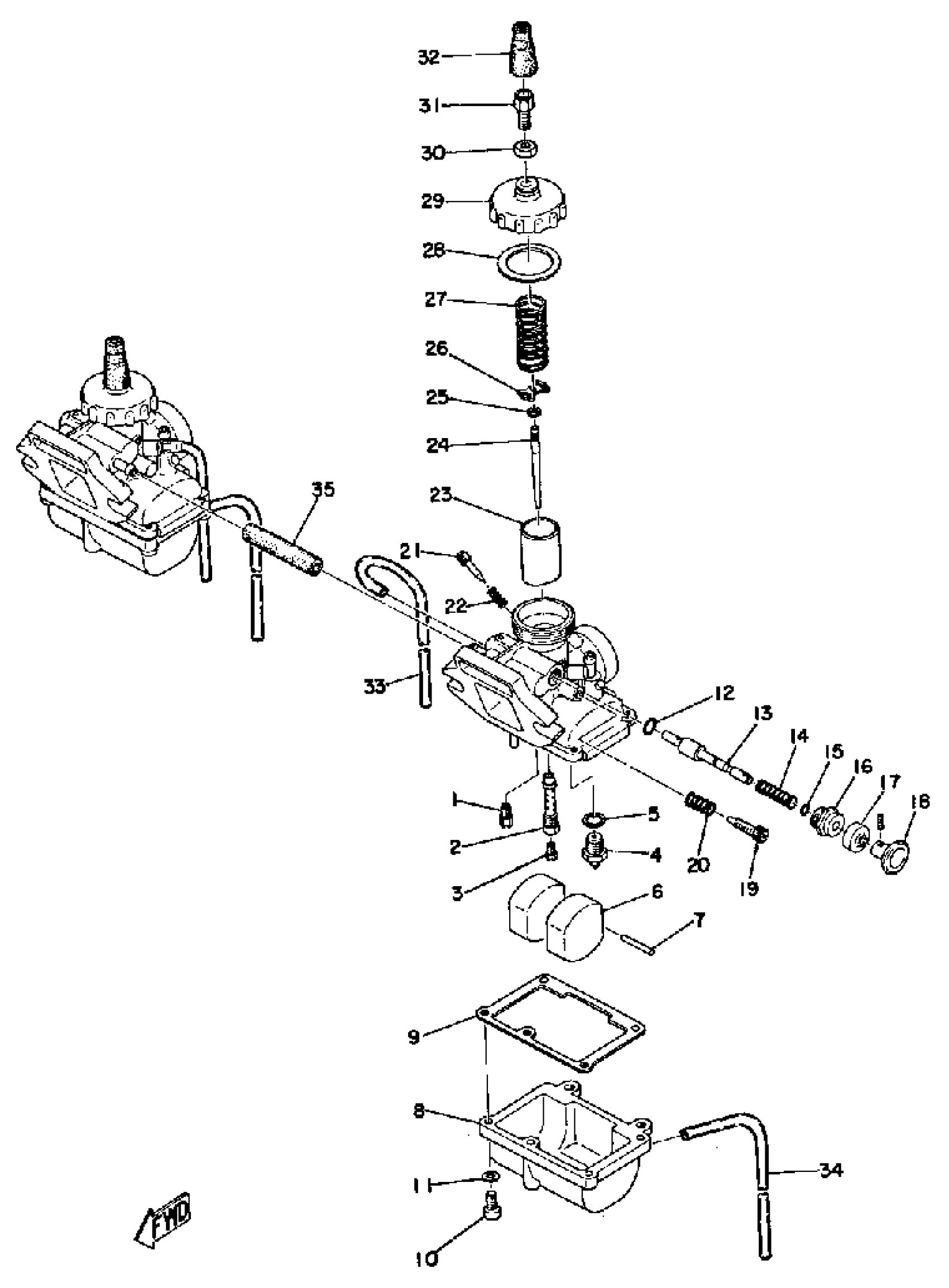

1975 Yamaha RD125 (RD125B) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JET, PILOT #44

(367-14342-22-00)

1
Out of stock

1

CARBURETOR ASSEMBLY 1

(466-14301-20-00)

1
Out of stock

2

. NOZZLE, MAIN

396-14341-00-00

1
Out of stock

2

CARBURETOR ASSEMBLY 2

(466-14302-20-00)

1
Out of stock

3

. JET, MAIN #94

396-14343-47-00

1
Out of stock

4

. NEEDLE VALVE ASSEMBLY

396-14390-16-00

1
Out of stock

5

WASHER, VALVE SEAT

367-14195-00-00

1

$5.52

In stock

6

FLOAT

367-14385-00-00

—
Out of stock

7

PIN, FLOAT

367-14386-00-00

1

$5.32

In stock

8

. BODY, FLOAT CHMBR 1

397-14181-14-00

1
Out of stock

9

. GASKET, FLOAT CHMBR

389-14384-00-00

1
Out of stock

10

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

12

O-RING

(389-14147-00-00)

1
Out of stock

13

PLUNGER, STARTER

(396-14371-00-00)

1
Out of stock

14

SPRING, PLUNGER

(389-14335-00-00)

1
Out of stock

15

CLIP, PLUNGER

(389-14138-00-00)

1
Out of stock

16

CAP, PLUNGER

(396-14374-00-00)

1
Out of stock

17

COVER, PLUNGER CAP

(389-14373-00-00)

1
Out of stock

18

. KNOB, STARTER

389-14261-01-00

1
Out of stock

19

. SCREW, PILOT ADJUSTING

396-14211-00-00

1
Out of stock

20

. SPRING, PILOT ADJUSTING

389-14212-00-00

1
Out of stock

21

. SCREW, AIR ADJUSTING

396-14323-00-00

1
Out of stock

22

. SPRING, THRTL STOP

389-14333-00-00

1
Out of stock

23

VALVE, THROTTLE 1

(396-14312-25-00)

1
Out of stock

23

VALVE, THROTTLE 2

(396-14313-25-00)

1
Out of stock

24

NEEDLE

(396-14336-00-00)

1
Out of stock

25

. CLIP

389-14137-00-00

1

$2.90

In stock

26

. SEAT, SPRING

396-14136-02-00

1
Out of stock

27

SPRING, THRTL VALVE

(396-14331-00-00)

1
Out of stock

28

GASKET

(389-14126-00-00)

1
Out of stock

29

CAP, MIXING CHAMBER

(389-14168-00-33)

1
Out of stock

30

NUT, CABLE ADJUSTING

85L-14161-00-00

1
Out of stock

31

SCREW, CABLE ADJUSTING

(396-14124-00-00)

1
Out of stock

32

. CAP

367-14169-00-00

1
Out of stock

33

PIPE 1

(396-14348-00-00)

1
Out of stock

34

PIPE

(389-14396-00-00)

1
Out of stock

35

PIPE

(389-14349-00-00)

1
Out of stock
