1975 Yamaha RD125 (RD125B) OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1975 Yamaha RD125 (RD125B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

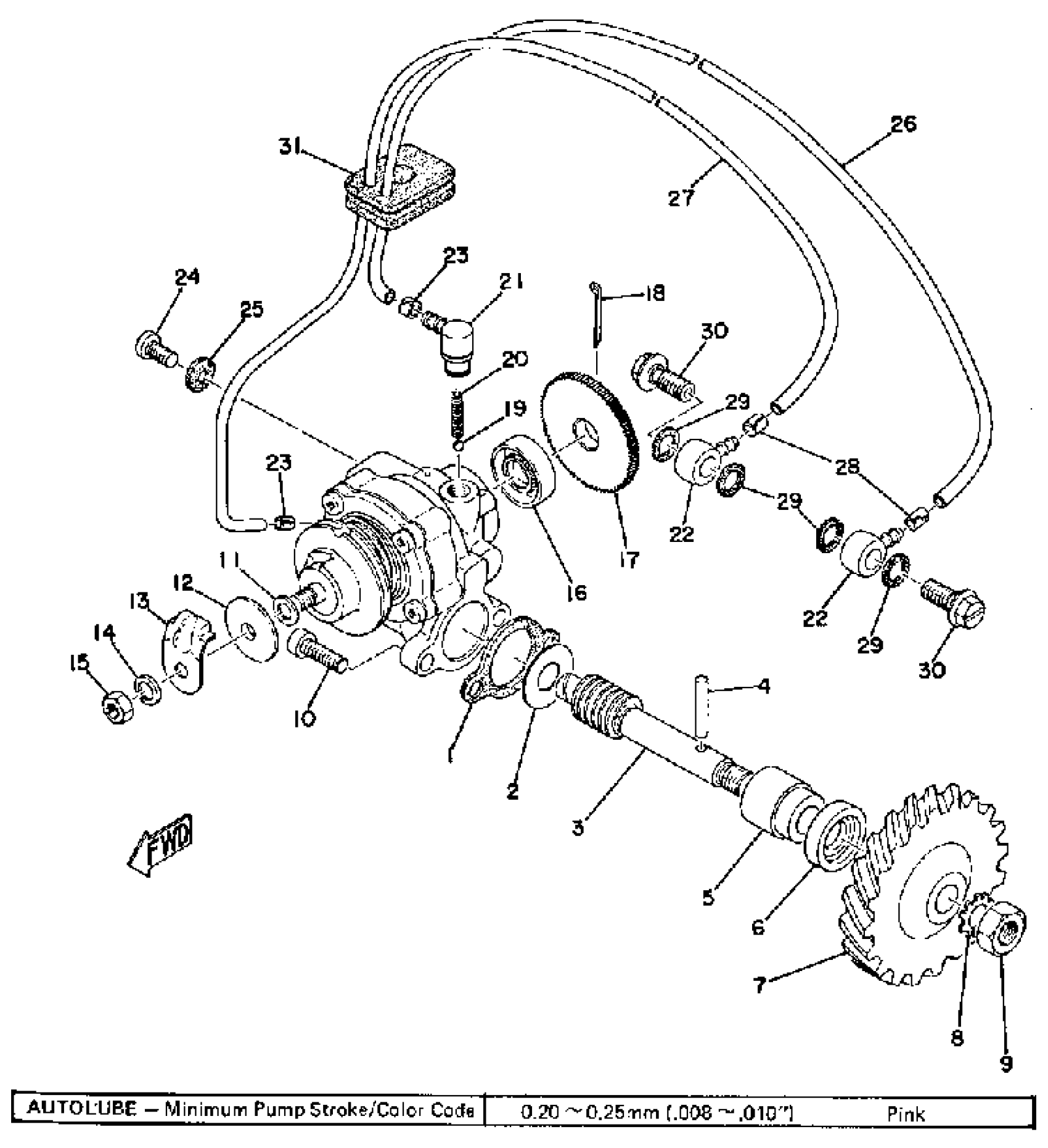

1975 Yamaha RD125 (RD125B) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY

(396-13101-02-00)

1
Out of stock

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

2

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

3

SHAFT, WORM

(174-13175-00-00)

1
Out of stock

4

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

5

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

6

OIL SEAL (10X22X7-137)

93101-10002-00

1

$6.68

In stock

7

GEAR, PUMP DRIVE

(132-13178-01-00)

1
Out of stock

8

WASHER (688)

92990-08400-00

1

$3.46

In stock

9

. NUT

95380-08700-00

1

$3.07

In stock

10

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

11

SHIM,PLUNGER

137-13137-00-03

1

$5.35

In stock

11

SHIM,PLUNGER

137-13137-00-05

1

$5.32

In stock

11

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

11

SHIM, PLUNGER

(137-13137-00-30)

1
Out of stock

11

. SHIM, PLUNGER

137-13137-00-50

1
Out of stock

12

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

13

COVER, AJST PULLEY

(402-13146-00-00)

1
Out of stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

15

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

16

OIL SEAL (J10)

93101-10090-00

—

$6.17

In stock

17

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

18

. PIN, COTTER

91401-12018-00

1
Out of stock

19

BALL

93505-32002-00

—

$2.22

In stock

20

SPRING (278-13169-00)

90501-02018-00

—

$7.69

In stock

21

NOZZLE

353-13552-01-00

—
Out of stock

22

BANJO, DELIVERY PIPE

214-13162-01-00

—

$26.11

In stock

23

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

24

SCREW, BIND

98980-04008-00

1

$3.26

In stock

25

GASKET 137131870000

90430-04004-00

—
Out of stock

26

HOSE (L700)

90445-05M07-00

1
Out of stock

27

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

28

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

29

GASKET(3FP)

90430-06224-00

—

$4.32

In stock

30

BOLT UNION 137131650000

90401-06001-00

—

$7.48

In stock

31

HOLDER, OIL PIPE

(293-13174-00-00)

1
Out of stock
