1975 Yamaha RD125 (RD125B) Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1975 Yamaha RD125 (RD125B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

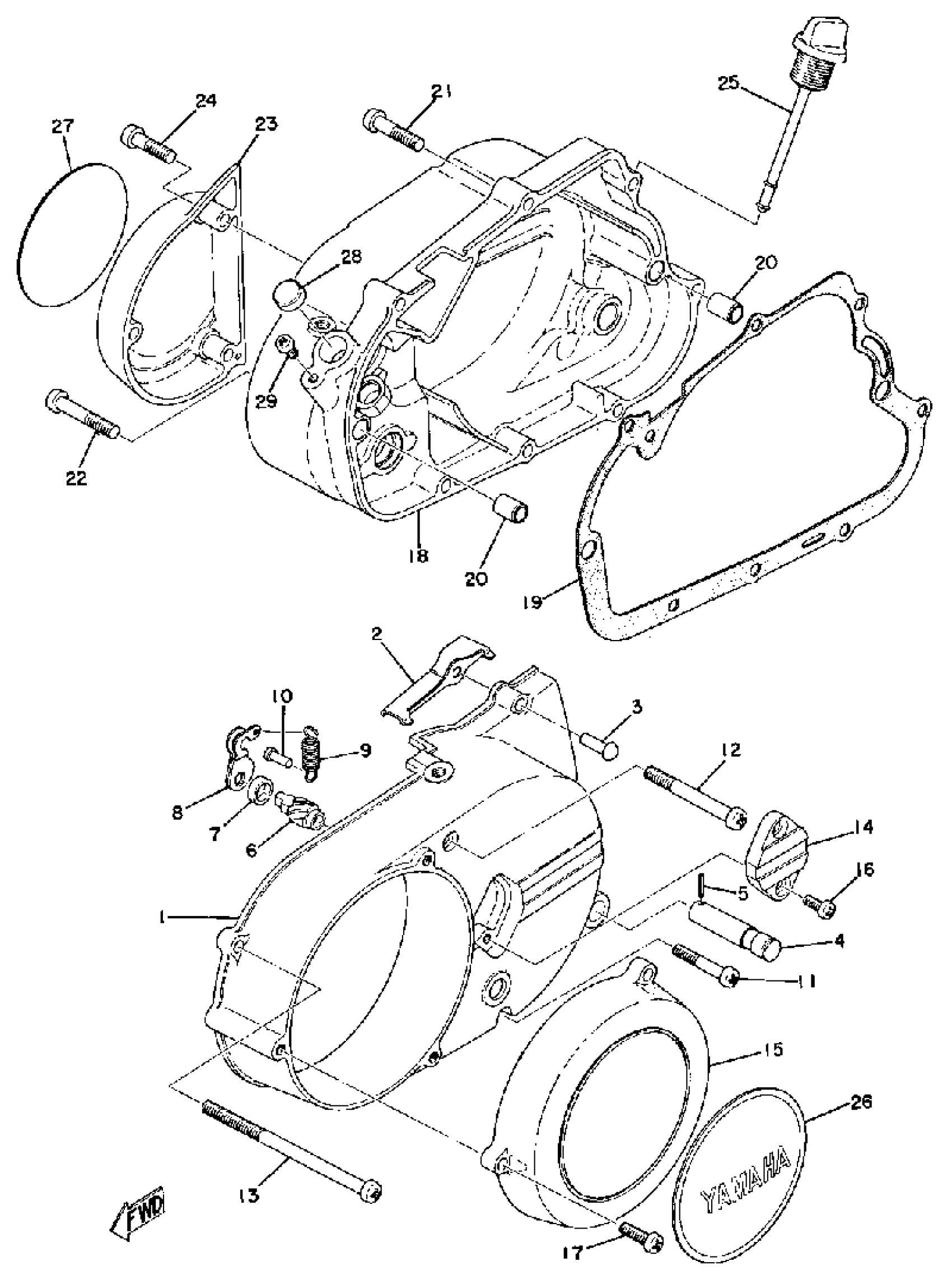

1975 Yamaha RD125 (RD125B) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRCS COVER ASSEMBLY L

(396-15410-00-00)

1
Out of stock

2

COVER, CHAIN CASE

(183-15418-01-00)

1
Out of stock

3

RIVET

(90266-06005-00)

1
Out of stock

4

AXLE, PAWL HOLDER

(307-18188-00-00)

1
Out of stock

5

PIN, SPRING

91690-30014-00

1

$6.23

In stock

6

SCREW, PUSH

241-16341-01-00

1
Out of stock

7

SEAL 0IL (2V7)

93104-10085-00

1
Out of stock

8

LEVER, PUSH

241-16342-00-00

1

$6.31

In stock

9

1

$5.72

In stock

10

HOOK, SPRING

132-16346-00-00

1
Out of stock

11

SCREW, PAN

98507-06035-00

1

$6.18

In stock

12

SCREW, PAN

98507-06060-00

1

$5.60

In stock

13

SCREW,PAN

98507-06120-00

1
Out of stock

14

COVER, CAP

(396-15417-00-00)

1
Out of stock

15

COVER, GENERATOR

(389-15415-00-00)

1
Out of stock

16

SCREW, PAN

98517-05012-00

—

$3.91

In stock

17

SCREW, PAN

98517-06020-00

—
Out of stock

18

COVER, CRANKCASE R

(396-15421-00-00)

1
Out of stock

19

—

$26.45

In stock

20

PIN, DOWEL(3VD)

99530-10114-00

—

$2.23

In stock

21

SCREW, PAN

98517-06030-00

1
Out of stock

22

SCREW, PAN

98507-06040-00

—

$2.25

In stock

23

COVER, OIL PUMP

(389-15416-00-00)

1
Out of stock

24

SCREW, PAN

98507-06035-00

1

$6.18

In stock

25

PLUG, OIL

(307-15363-00-00)

1
Out of stock

26

COVER, OIL PUMP R

(389-15426-00-00)

1
Out of stock

27

COVER, OIL PUMP R

(389-15426-00-00)

1
Out of stock

28

PLUG(12Y)

90338-16029-00

—

$6.85

In stock

29

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock
