1975 Yamaha RD125 (RD125B) Crank Piston Diagram

← All diagrams

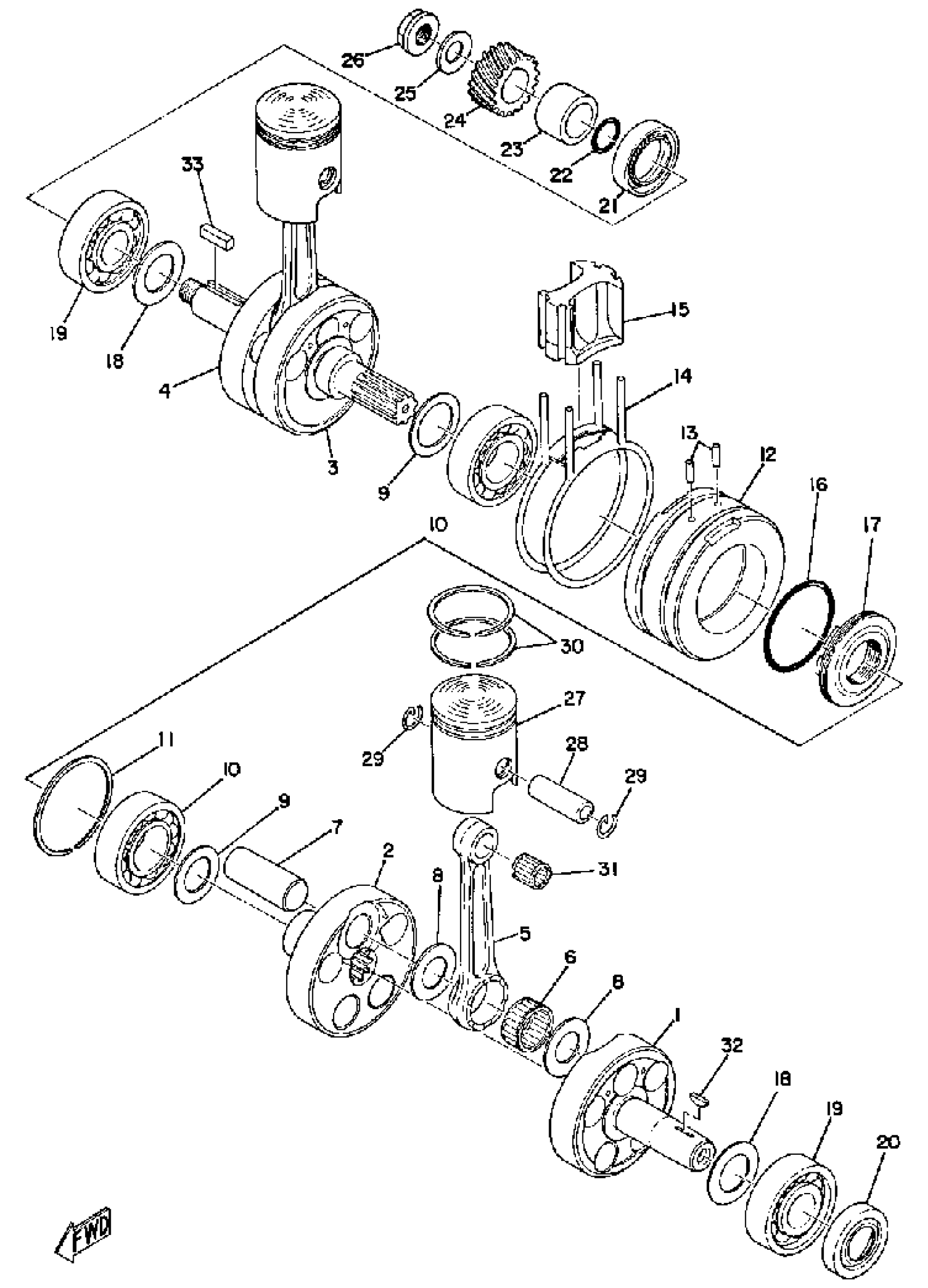

Find the part on the Crank Piston diagram for your 1975 Yamaha RD125 (RD125B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha RD125 (RD125B) Crank Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANK 1

(183-11412-03-00)

1
Out of stock

1

CRANKSHAFT ASSEMBLY

(416-11400-00-00)

1
Out of stock

2

CRANKSHAFT ASSEMBLY

132-11400-03-00

1
Out of stock

2

PISTON KIT STD

466-11630-00-00

1
Out of stock

2

PISTON KIT 1ST

466-11630-10-00

1
Out of stock

2

PISTON KIT 2ND

(466-11630-20-00)

1
Out of stock

3

CRANK 3

(132-11432-03-00)

1
Out of stock

4

CRANK 4

(389-11442-00-00)

1
Out of stock

5

. ROD, CONNECTING

1E7-11651-00-00

1
Out of stock

6

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

1
Out of stock

7

. PIN, CRANK 1

3R1-11681-00-00

1
Out of stock

8

WASHER 132116850000

90209-18112-00

1
Out of stock

9

. SHIM, CRANK 1

132-11561-00-03

1
Out of stock

10

1

$35.25

In stock

11

. CIRCLIP

93450-52010-00

1
Out of stock

12

COVER, CRANK

(132-11511-02-00)

1
Out of stock

13

PIN, DOWEL(4SS)

93604-18251-00

1
Out of stock

14

. SEAL, CRANK COVER

183-11512-00-00

1
Out of stock

15

METAL, FILLER

(307-11541-00-00)

1
Out of stock

16

. O-RING

93210-48045-00

1
Out of stock

17

. SEAL, LABYRINTH 1

132-11515-01-00

1
Out of stock

18

SHIM, CRANK 1

136-11561-00-03

1
Out of stock

18

SHIM, CRANK 1

136-11561-00-04

1
Out of stock

18

SHIM, CRANK 1

136-11561-00-05

1
Out of stock

18

SHIM, CRANK 1

136-11561-00-06

1
Out of stock

18

SHIM, CRANK 1

136-11561-00-07

1
Out of stock

18

SHIM, CRANK 1

136-11561-00-08

1
Out of stock

19

—

$54.91

In stock

20

OIL SEAL, SD-TYPE

93102-20117-00

1
Out of stock

21

OIL SEAL (28X40X8-132)

93103-28011-00

—

$12.05

In stock

22

O-RING(3KX)

93210-180A6-00

—

$4.78

In stock

23

COLLAR 183161360000

90387-20163-00

—
Out of stock

24

GEAR, PRI DRIVE

(389-16111-00-00)

1
Out of stock

25

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

26

NUT(1EE)

90179-12659-00

—

$5.37

In stock

27

PISTON STD

466-11631-01-97

1
Out of stock

27

PISTON 1 O/S 0.25

466-11635-01-00

1
Out of stock

27

PISTON 2 O/S 0.50

466-11636-01-00

1
Out of stock

28

PIN, PISTON

183-11633-01-00

1
Out of stock

29

CIRCLIP 132116340000

93450-13022-00

—
Out of stock

30

PISTON RINGSET STD

307-11601-01-00

1
Out of stock

30

PISTON RINGSET 1ST

307-11601-11-00

1
Out of stock

30

PISTON RINGSET 2ND

307-11601-21-00

1
Out of stock

31

BEARING, CYLINDER.#10

93310-11296-00

1
Out of stock

32

KEY WOODRUFF 146115450000

90280-03017-00

—

$5.78

In stock

33

KEY, STRAIGHT 3531154600

90282-05005-00

—
Out of stock
