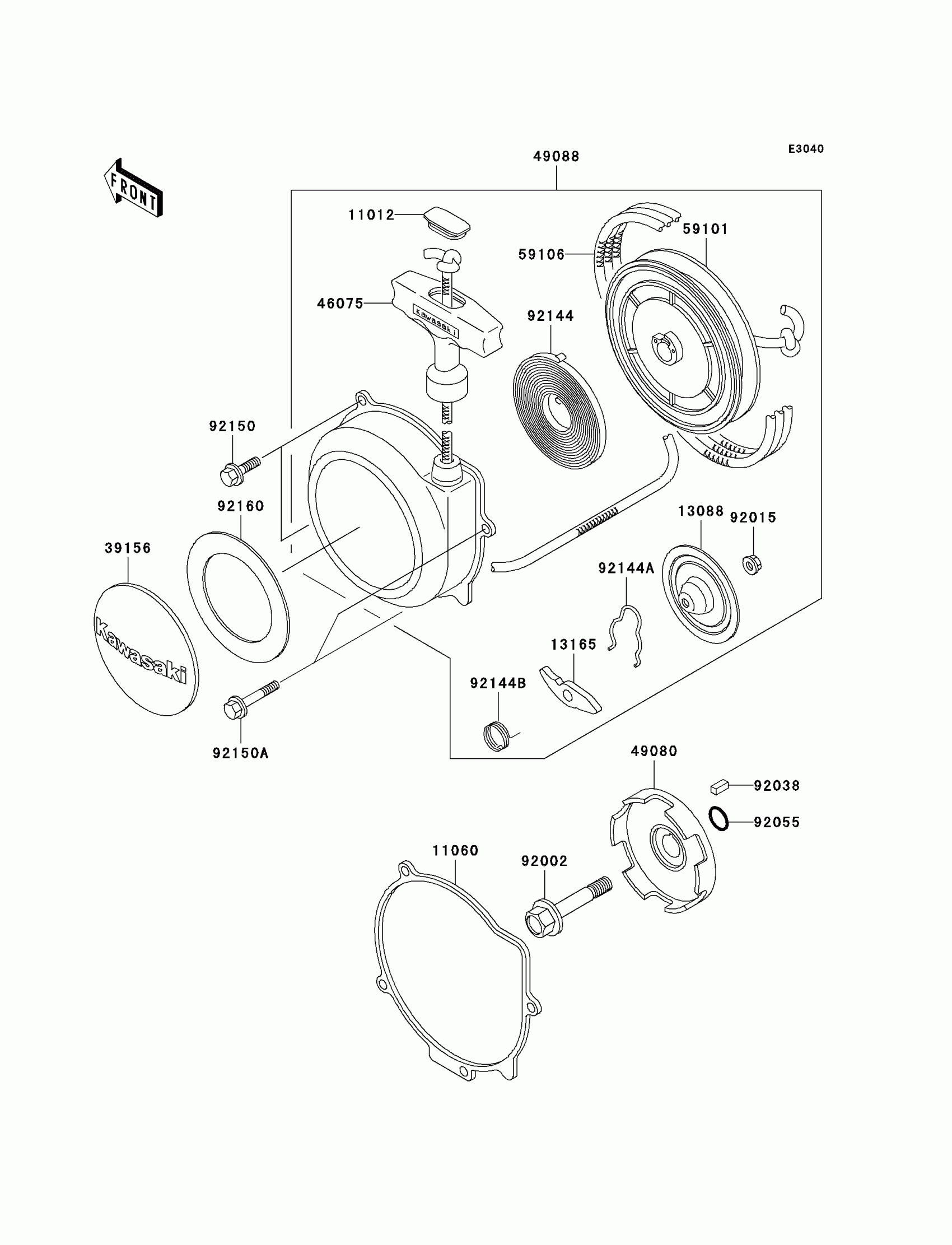

Find the part on the Recoil Starter diagram for your 2002 Kawasaki Prairie 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki Prairie 300 Recoil Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,RECOIL GRIP

11012-1420

1
Out of stock

11060

GASKET,RECOIL STARTER

11060-1696

1
Out of stock

13088

PLATE-FRICTION,RECOIL

13088-1073

1
Out of stock

13165

PAWL,RECOIL

13165-1123

1
Out of stock

39156

PAD,RECOIL STARTER

39156-1527

1
Out of stock

46075

GRIP,RECOIL

46075-1073

1

$14.98

In stock

49080

PULLEY-STARTING

49080-1055

1
Out of stock

49088

STARTER-RECOIL

49088-1055

1
Out of stock

59101

REEL

59101-1109

1
Out of stock

59106

ROPE

59106-1103

1
Out of stock

92002

BOLT,FLANGED,10X40

92002-1296

1
Out of stock

92015

NUT,6MM

92015-1464

1
Out of stock

92038

KEY,SUNK

92038-1051

1
Out of stock

92055

RING-O,16.8MM

92055-1235

1
Out of stock

92144

SPRING,RECOIL

92144-1205

1
Out of stock

92144A

SPRING,FRICTION

92144-1206

1
Out of stock

92144B

SPRING,RETURN

92144-1207

1
Out of stock

92150

BOLT,6X14

92150-1916

1
Out of stock

92150A

BOLT

92150-1917

1
Out of stock

92160

DAMPER,RECOIL STARTER

92160-1691

1
Out of stock
