2002 Kawasaki Prairie 300 OIL Cooler Diagram

← All diagrams

Find the part on the OIL Cooler diagram for your 2002 Kawasaki Prairie 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

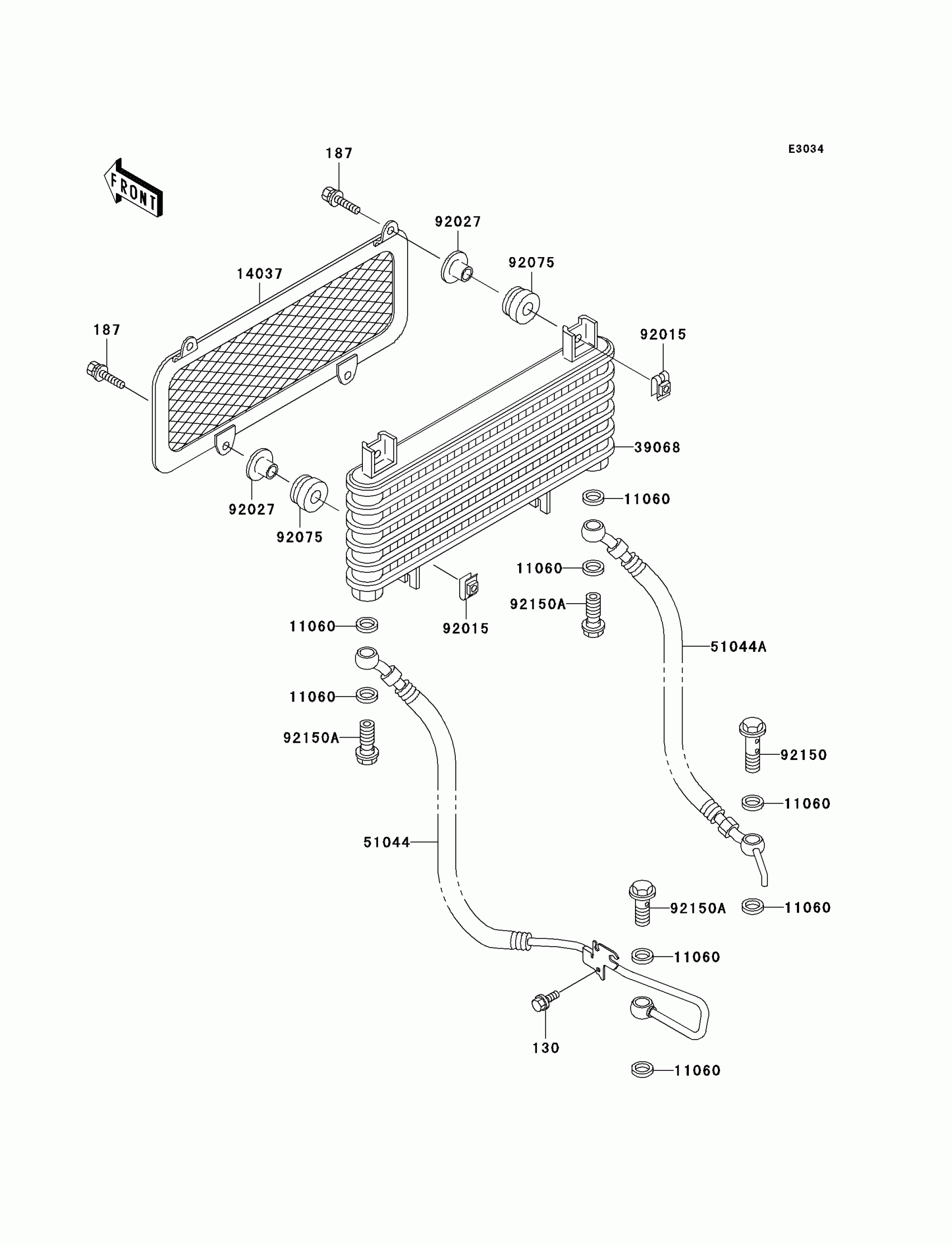

2002 Kawasaki Prairie 300 OIL Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16

130H0616

1
Out of stock

187

BOLT-UPSET-WSP

187D0625

1
Out of stock

11060

GASKET,14X20X2

11060-1287

1
Out of stock

14037

SCREEN

14037-1105

1

$49.03

In stock

39068

COOLER-ASSY-OIL

39068-1061

1
Out of stock

51044

TUBE-ASSY

51044-1201

1
Out of stock

51044A

TUBE-ASSY

51044-1207

1
Out of stock

92015

NUT

92015-1487

1
Out of stock

92027

COLLAR

92027-1767

1
Out of stock

92075

DAMPER

92075-277

1
Out of stock

92150

BOLT,BANJO,14X46

92150-1324

1
Out of stock

92150A

BOLT

92150-1945

1
Out of stock
