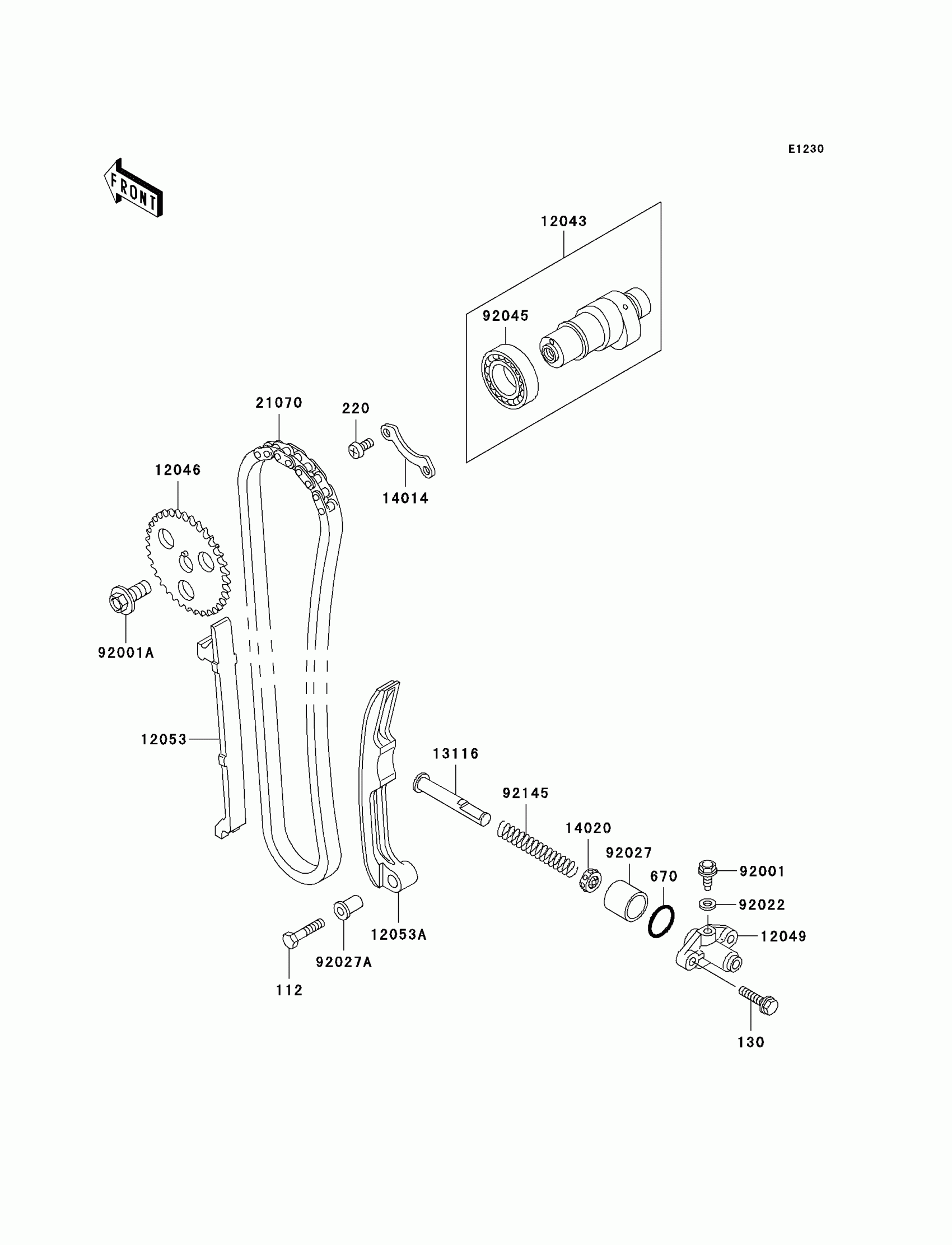

Kawasaki Prairie 300 Camshaft(s)/Tensioner Diagram

Description

Price

112

BOLT-UPSET

112G0630

Unavailable

130

BOLT-FLANGED,6X25

130Y0625

Unavailable

220

SCREW PAN HEAD 6X10

220B0610

Unavailable

670

O RING,21MM

670B2021

$3.57

12043

CAMSHAFT-ASSY-VALVE

12043-1057

$236.86

12046

SPROCKET,CAM CHAIN,32

12046-1037

$60.10

12049

TENSIONER,CAM CHAIN

12049-1055

$47.04

12053

GUIDE-CHAIN,CAM

12053-1358

Unavailable

12053A

GUIDE-CHAIN

12053-1420

Unavailable

13116

ROD,PUSH,CAM CHAIN

13116-1019

$15.24

14014

PLATE-POSITION

14014-1030

$3.51

14020

RETAINER,TENSIONER

14020-1054

$18.34

21070

CHAIN,CAM

21070-013

$153.78

92001

BOLT,TENSIONER ADJUST

92001-1155

$4.68

92001A

BOLT,10X23

92001-1859

$7.54

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92027

COLLAR,TENSIONER

92027-1273

$33.19

92027A

COLLAR

92027-155

$6.25

92045

BEARING-BALL,#6005C4

92045-1056

$19.69

92145

SPRING,TENSIONER

92145-1215

$3.52
